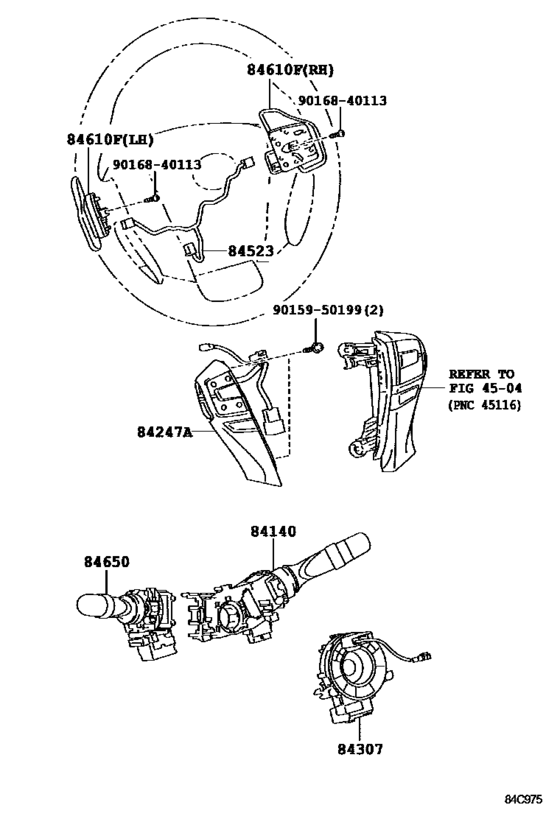

Switch & Relay & Computer ([12.2011 - ] STEERING (1112- )) Diagram Toyota MARK X
- Year
- 2011 - 2016
- Sales region
- General
- Frame
- GRX130
- grade
- 250G
- ENGINE
- 4GRFSE
- TRANSMISSION
- ATM
- Model
- MARK X
- From
- 12.2011
- To
- 11.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- MARK X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-12570 Switch Assy, Headlamp Dimmer[12.2011 - 08.2012] GRX130 |
84140-12570 |
US $133.20 |
||
|
84140
|
84140
84140-42070 Switch Assy, Headlamp Dimmer[12.2011 - 08.2012] GRX130 S PACKAGE |
84140-42070 |
US $103.60 |
||
|
84247A
|
84247A
84247-22030 Switch, Steering Pad, LhSTEERING PAD, LH [12.2011 - 08.2012] GRX130 S PACKAGE |
84247-22030 |
US $131.04 |
||
|
84247A
|
84247A
84247-22040 Switch, Steering Pad, Lh[12.2011 - 08.2012] GRX130 |
84247-22040 |
US $173.26 |
||
|
84307
|
84307
84307-75010 Cable Sub-Assy, Spiral W/sensorSPIRAL W/SENSOR [12.2011 - 08.2012] GRX130 |
84307-75010 |
US $511 |
||
|
84523
|
84523
84523-22010 Wire, Switch No.1SWITCH NO.1 [12.2011 - 08.2012] GRX130 S PACKAGE |
84523-22010 |
US $15 |
||
|
84610F
|
84610F
84610-22010 Switch Assy, Transmission ShiftTRANSMISSION SHIFT [12.2011 - 08.2012] GRX130 S PACKAGE,LH |
84610-22010 |
from US $35.09 |
||
|
84610F
|
84610F
84610-22020 Switch Assy, Transmission ShiftTRANSMISSION SHIFT [12.2011 - 08.2012] GRX130 S PACKAGE,RH |
84610-22020 |
from US $35.09 |
||
|
84650
|
84650
84652-52260
Switch Assy, Windshield Wiper
[12.2011 - 08.2012] GRX130 |
84652-52260 |
— | ||
| replacement | |||||
|
84650
|
84650
84652-52261 Switch Assy, Windshield Wiper[12.2011 - 08.2012] GRX130 |
84652-52261 |
US $87.32 |
||
|
84650
|
84650
84652-52261 Switch Assy, Windshield Wiper[03.2015 -] GRX130 |
84652-52261 |
US $87.32 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
|
9016840113
|
9016840113
90168-40113 Screw, Steering Wheel Pad Attaching |
90168-40113 |
US $0.96 |
||
