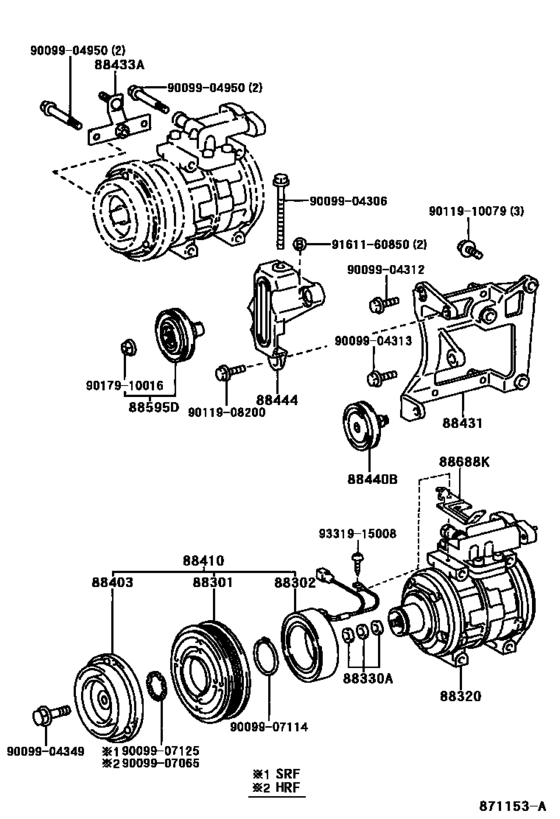

Heating & Air Conditioning - Compressor ([10.1996 - ] (9610- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- HRF
- ENGINE
- 15BFT
- From
- 12.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-26030
Rotor Sub-Assy, Magnet Clutch
[10.1996 -] BXD20 |
88412-26030 |
— | ||
|
88302
|
88302
88411-60090
Stator Sub-Assy, Magnet Clutch
[10.1996 -] BXD20 |
88411-60090 |
— | ||
|
88320
|
88320
88320-65020
Compressor Assy, Cooler
[10.1996 -] BXD20 |
88320-65020 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-26H91 Compressor Assy, Cooler[10.1996 -] BXD20 |
88320-26H91 |
US $1,315.64 |
||
|
88330A
|
88330A
88335-14020 Washer[10.1996 -] BXD20 |
88335-14020 |
from US $1.24 |
||
|
88403
|
88403
88403-30290 Hub Sub-Assy, Magnet Clutch[10.1996 -] BXD20 |
88403-30290 |
from US $86.66 |
||
|
88410
|
88410
88410-65020 Clutch Assy, MagnetMAGNET [12.1996 -] BXD20..HRF |
88410-65020 |
US $694.51 |
||
|
88431
|
88431
88431-37020
Bracket, Compressor Mounting, No.1
[10.1996 -] BXD20 |
88431-37020 |
— | ||
|
88433A
|
88433A
88433-65020
Stay, Compressor
[10.1996 -] BXD20 |
88433-65020 |
— | ||
|
88440B
|
88440B
44350-36040
Pulley Assy, Idle
[10.1996 -] BXD20 |
44350-36040 |
— | ||
|
88444
|
88444
88444-37020
Bracket, Idle Pulley
[10.1996 -] BXD20 |
88444-37020 |
— | ||
|
88595D
|
88595D
88440-12160 Pulley Assy, Power Steering Idle[10.1996 -] BXD20 |
88440-12160 |
US $88.56 |
||
|
88688K
|
88688K
88688-2D770
Bracket, Cooler Compressor
[12.1996 -] BXD20..HRF |
88688-2D770 |
— | ||
|
9009904306
|
9009904306
90099-04306 Bolt, Idle Pulley |
90099-04306 |
US $1.92 |
||
|
9009904312
|
9009904312
90099-04312
New Genuine Part
|
90099-04312 |
— | ||
|
9009904313
|
9009904313
90099-04313 BOLT |
90099-04313 |
US $1.98 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904950
|
9009904950
90099-04950 BOLT |
90099-04950 |
from US $1.89 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.10 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.03 |
||
|
9009907125
|
9009907125
90099-07125 Ring, Snap |
90099-07125 |
from US $1.01 |
||
|
9011908200
|
9011908200
90119-08200 BOLT |
90119-08200 |
from US $2.51 |
||
| replacement | |||||
|
9011908200
|
9011908200
90105-08112 New Genuine Part |
90105-08112 |
US $4.01 |
||
|
9011910079
|
9011910079
90119-10079 Bolt(For Front Suspension Lower Arm No.1 Rh) |
90119-10079 |
US $4.30 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.91 |
||
|
9161160850
|
9161160850
91611-60850 Bolt(For Rocker Support Set) |
91611-60850 |
US $2.15 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
