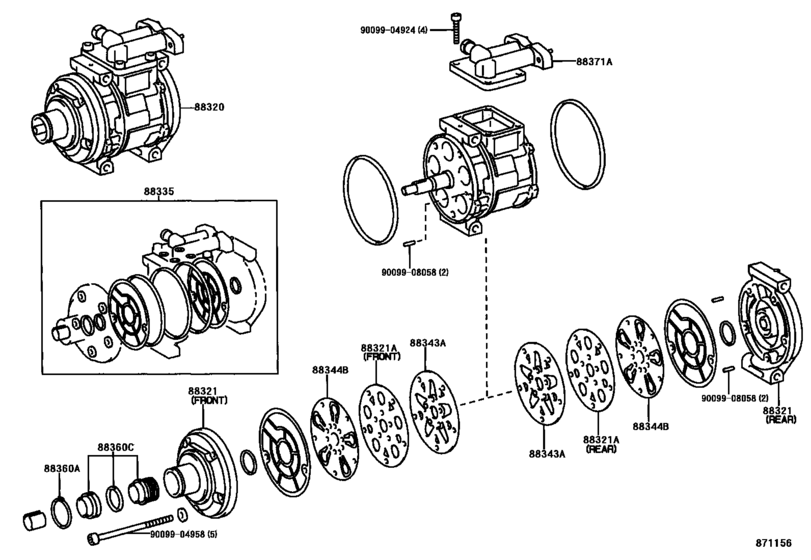

Heating & Air Conditioning - Compressor ([10.1996 - ] (9610- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- HRF
- ENGINE
- 15BFT
- From
- 12.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-65020
Compressor Assy, Cooler
[10.1996 -] BXD20 |
88320-65020 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-26H91 Compressor Assy, Cooler[10.1996 -] BXD20 |
88320-26H91 |
US $1,315.64 |
||
|
88321
|
88321
88321-32010
Head, Cooler Compressor Cylinder
[10.1996 -] BXD20 FRONT |
88321-32010 |
— | ||
|
88321
|
88321
88322-32040
Head, Cooler Compressor Cylinder
[10.1996 -] BXD20 REAR |
88322-32040 |
— | ||
|
88321A
|
88321A
88341-22010
Plate Sub-Assy, Valve
[10.1996 - 06.1999] BXD20 FRONT |
88341-22010 |
— | ||
|
88321A
|
88321A
88342-22010
Plate Sub-Assy, Valve
[10.1996 - 06.1999] BXD20 REAR |
88342-22010 |
— | ||
|
88335
|
88335
88335-2B030 Gasket Kit, Overhaul[10.1996 -] BXD20 |
88335-2B030 |
from US $35.21 |
||
|
88343A
|
88343A
88343-14020
Reed, Suction Valve
[10.1996 - 06.1999] BXD20 |
88343-14020 |
— | ||
|
88344B
|
88344B
88344-22010
Reed, Discharge Valve
[10.1996 - 06.1999] BXD20 |
88344-22010 |
— | ||
|
88360A
|
88360A
90096-90022
Ring, Compressor Seal Plate Snap
[10.1996 - 06.1999] BXD20 |
90096-90022 |
— | ||
|
88360C
|
88360C
88360-2B020 Seal Assy, Shaft[10.1996 -] BXD20 |
88360-2B020 |
from US $68.84 |
||
|
88371A
|
88371A
88371-36240 Valve, Cooler Compressor Suction ServiceCOOLER COMPRESSOR SUCTION SERVICE [10.1996 - 06.1999] BXD20 |
88371-36240 |
US $125.22 |
||
|
9009904924
|
9009904924
90099-04924
Bolt, Service Valve
|
90099-04924 |
— | ||
|
9009904958
|
9009904958
90099-04958
Bolt, Through
|
90099-04958 |
— | ||
|
9009908058
|
9009908058
90099-08058
Pin, Cylinder Block
|
90099-08058 |
— | ||
