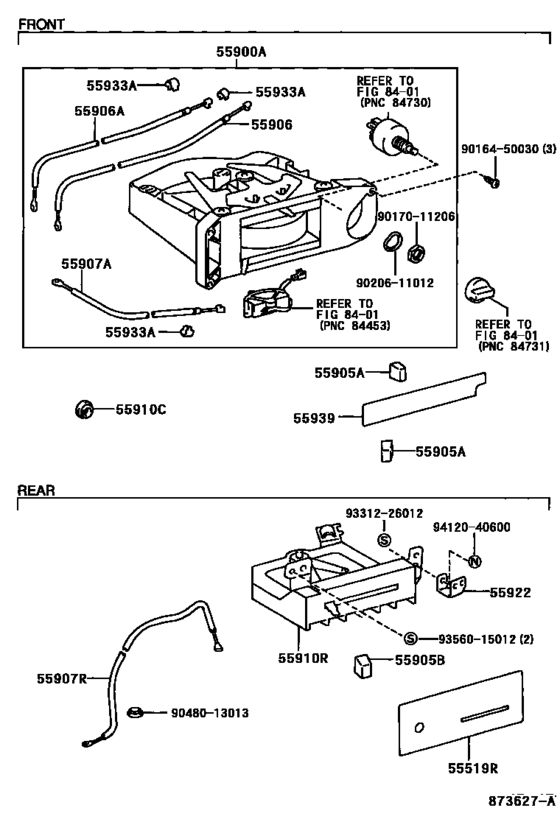

Heating & Air Conditioning - Control & Air Duct ([10.1996 - ] HEATER CONTROL (9610- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- HRF
- ENGINE
- 15BFT
- From
- 12.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55519R
|
55519R
55519-65020 Plate, Heater Control Name[10.1996 -] BXD20 |
55519-65020 |
US $17.18 |
||
|
55900A
|
55900A
55900-65010 Control & Accessory Assy, Heater[10.1996 - 06.1999] BXD20 |
55900-65010 |
US $569.30 |
||
|
55900A
|
55900A
55900-65020 Control & Accessory Assy, Heater[06.1999 -] BXD20 |
55900-65020 |
US $573.66 |
||
|
55905A
|
55905A
55905-89115 Knob, Heater Control[10.1996 -] BXD20 |
55905-89115 |
from US $4.66 |
||
|
55905B
|
55905B
55905-10110 Knob, Heater Control[10.1996 -] BXD20 |
55905-10110 |
US $5.10 |
||
|
55906
|
55906
55905-65010 Cable Sub-Assy, Heater Control[10.1996 -] BXD20 |
55905-65010 |
US $16.74 |
||
|
55906A
|
55906A
55906-65010 Cable Sub-Assy, Defroster Damper Control[10.1996 -] BXD20 |
55906-65010 |
US $18.78 |
||
|
55907A
|
55907A
55907-65010 Cable Sub-Assy, Water Valve Control[10.1996 - 06.1999] BXD20 |
55907-65010 |
US $26.64 |
||
|
55907A
|
55907A
55907-65030 Cable Sub-Assy, Water Valve Control[06.1999 -] BXD20 |
55907-65030 |
US $16.74 |
||
|
55907R
|
55907R
55907-65020 Cable Sub-Assy, Temperature Control[10.1996 -] BXD20 |
55907-65020 |
US $19.66 |
||
|
55910C
|
55910C
90480-01560 Grommet(For Heater Control Cable)[06.1999 -] BXD20 |
90480-01560 |
US $1.75 |
||
|
55910C
|
55910C
90480-15001
Grommet(For Hood Lock Control Cable)
[10.1996 - 06.1999] BXD20 |
90480-15001 |
— | ||
|
55910R
|
55910R
55900-28200 Control Assy, Heater[10.1996 -] BXD20 |
55900-28200 |
US $26.21 |
||
|
55922
|
55922
55922-65010 Bracket, Heater Control Base[10.1996 -] BXD20 |
55922-65010 |
US $4.66 |
||
|
55933A
|
55933A
55933-24010 Clamp, Heater Control Wire[10.1996 -] BXD20 |
55933-24010 |
US $2.62 |
||
|
55939
|
55939
55939-65010 Ornament, Heater Control[10.1996 -] BXD20 |
55939-65010 |
US $0.87 |
||
|
9016450030
|
9016450030
90164-50030 New Genuine Part |
90164-50030 |
US $1.60 |
||
| replacement | |||||
|
9016450030
|
9016450030
93568-55016 Screw |
93568-55016 |
from US $0.49 |
||
|
9017011206
|
9017011206
90170-11206 Nut, Heater Blower Switch |
90170-11206 |
US $1.93 |
||
|
9020611012
|
9020611012
90206-11012 WASHER |
90206-11012 |
US $1.31 |
||
|
9048013013
|
9048013013
90480-13013 Grommet(For Heater Control Cable) |
90480-13013 |
from US $5.53 |
||
|
9331226012
|
9331226012
93312-26012 New Genuine Part |
93312-26012 |
US $0.87 |
||
|
9356015012
|
9356015012
93560-15012 New Genuine Part |
93560-15012 |
US $1.25 |
||
|
9412040600
|
9412040600
94120-40600 Nut, Wire Adjusting, No.1 |
94120-40600 |
US $3.05 |
||
