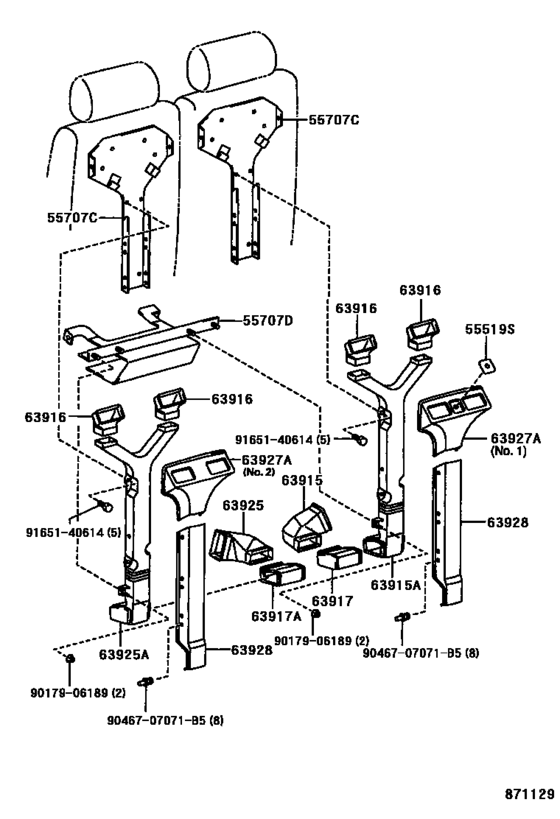

Heating & Air Conditioning - Control & Air Duct ([12.1996 - ] AIR DUCT (9612- )HRF) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- HRF
- ENGINE
- 15BFT
- From
- 12.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55519S
|
55519S
63697-65010 Label, Rear Cooler Control InformationREAR COOLER CONTROL INFORMATION [12.1996 -] BXD20..HRF |
63697-65010 |
US $3.49 |
||
|
55707C
|
55707C
55707-65120 Bracket Sub-Assy, Cooler Mounting, No.1COOLER MOUNTING, NO.1 [12.1996 -] BXD20..HRF |
55707-65120 |
US $91.73 |
||
|
55707D
|
55707D
55707-65130 Bracket Sub-Assy, Cooler Mounting, No.2COOLER MOUNTING, NO.2 [12.1996 -] BXD20..HRF |
55707-65130 |
US $125.22 |
||
|
63915
|
63915
63915-65020 Duct, Cooler, Inner No.1 Rh[10.1996 -] BXD20 |
63915-65020 |
US $53.14 |
||
|
63915A
|
63915A
63915-65030 Duct, Cooler, Inner No.2 RhCOOLER, INNER NO.2 RH [12.1996 -] BXD20..HRF |
63915-65030 |
US $33.05 |
||
|
63916
|
63916
63916-65010 Duct, Cooler, Inner No.2 RhCOOLER, INNER NO.2 RH [12.1996 -] BXD20..HRF |
63916-65010 |
US $15.58 |
||
|
63917
|
63917
63917-65010 Duct, Cooler, Inner No.3 RhCOOLER, INNER NO.3 RH [12.1996 -] BXD20..HRF |
63917-65010 |
US $10.92 |
||
|
63917A
|
63917A
63917-65020 Duct, Cooler, Inner No.3 LhCOOLER, INNER NO.3 LH [12.1996 -] BXD20..HRF |
63917-65020 |
US $10.92 |
||
|
63925
|
63925
63925-65020 Duct, Cooler, Inner No.1 Lh[10.1996 -] BXD20 |
63925-65020 |
US $53.14 |
||
|
63925A
|
63925A
63925-65030 Duct, Cooler, Inner No.2 LhCOOLER, INNER NO.2 LH [12.1996 -] BXD20..HRF |
63925-65030 |
US $33.05 |
||
|
63927A
|
63927A
63927-65010-B0 Cover, Cooler Duct End, No.1COOLER DUCT END, NO.1 [12.1996 -] BXD20..HRF LIGHT GRAY,TRIM1#,NO.1 |
63927-65010-B0 |
US $90.27 |
||
|
63927A
|
63927A
63927-65020-B0 Cover, Cooler Duct End, No.1COOLER DUCT END, NO.1 [12.1996 -] BXD20..HRF LIGHT GRAY,TRIM1#,NO.2 |
63927-65020-B0 |
US $90.27 |
||
|
63928
|
63928
63928-65010-B0 Cover, Cooler Duct End, No.2COOLER DUCT END, NO.2 [12.1996 -] BXD20..HRF LIGHT GRAY,TRIM1# |
63928-65010-B0 |
US $99.01 |
||
|
9017906189
|
9017906189
90179-06189 New Genuine Part |
90179-06189 |
US $1.25 |
||
|
9046707071B5
|
9046707071B5
90467-07071-B5
Clip, Instrument Panel
|
90467-07071-B5 |
— | ||
| replacement | |||||
|
9046707071B5
|
9046707071B5
90467-07071-22 Clip, Instrument Panel |
90467-07071-22 |
from US $0.53 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.76 |
||
