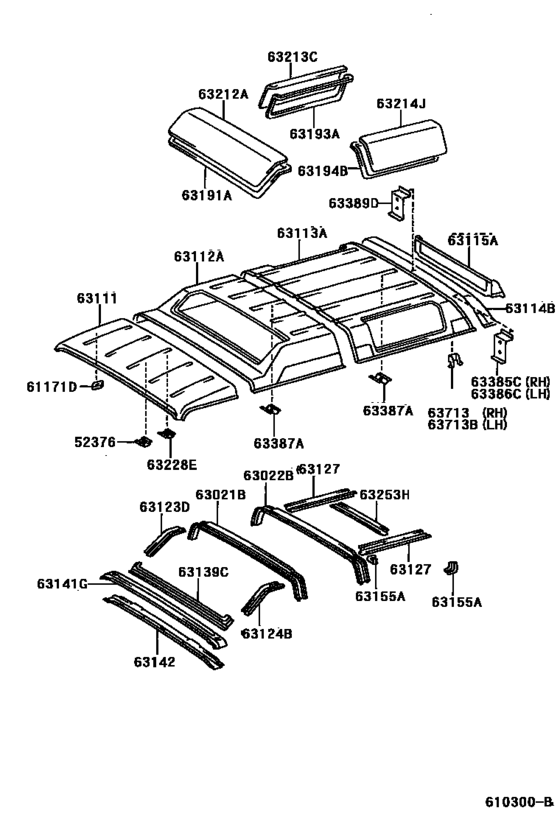

Roof Panel & Back Panel ([12.1996 - ] (9612- )HRF) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- HRF
- ENGINE
- 15BFT
- From
- 12.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52376
|
52376
52376-65010 Bracket, Mounting Hook Guide[10.1996 -] BXD20 |
52376-65010 |
US $15 |
||
|
61171D
|
61171D
61171-65020 Bracket, Antenna Pole Mounting[10.1996 -] BXD20 |
61171-65020 |
US $8.30 |
||
|
63021B
|
63021B
63021-65010 Strength Sub-Assy, Roof Panel[12.1996 -] BXD20..HRF |
63021-65010 |
US $189.28 |
||
|
63022B
|
63022B
63022-65030 Strength Sub-Assy, Roof Panel, No.2[12.1996 -] BXD20..HRF |
63022-65030 |
US $196.56 |
||
|
63111
|
63111
63111-65030
Panel, Roof
[10.1996 -] BXD20 |
63111-65030 |
— | ||
|
63112A
|
63112A
63112-65050
Panel, Roof, No.2
[12.1996 -] BXD20..HRF |
63112-65050 |
— | ||
|
63113A
|
63113A
63113-65050
Panel, Roof, No.3
[12.1996 -] BXD20..HRF |
63113-65050 |
— | ||
|
63114B
|
63114B
63115-65010 Panel, Roof, No.4[12.1996 -] BXD20..HRF |
63115-65010 |
US $467.38 |
||
|
63115A
|
63115A
63116-65010 Panel, Roof, No.5[12.1996 -] BXD20..HRF |
63116-65010 |
US $467.38 |
||
|
63123D
|
63123D
63123-65010 Reinforcement, Roof Panel, Front Rh[12.1996 -] BXD20..HRF |
63123-65010 |
US $56.64 |
||
|
63124B
|
63124B
63124-65010 Reinforcement, Roof Panel, Front Lh[12.1996 -] BXD20..HRF |
63124-65010 |
US $56.64 |
||
|
63127
|
63127
63127-65010 Reinforcement, Roof Panel, No.5[12.1996 - 06.1997] BXD20..HRF |
63127-65010 |
US $96.10 |
||
|
63127
|
63127
63127-65011 Reinforcement, Roof Panel, No.5[06.1997 -] BXD20..HRF |
63127-65011 |
US $96.10 |
||
|
63139C
|
63139C
63139-65010 Frame, Roof Window[12.1996 -] BXD20..HRF |
63139-65010 |
US $91.73 |
||
|
63141G
|
63141G
63141-65030 Reinforcement, Roof Panel, No.1[10.1996 -] BXD20 |
63141-65030 |
US $216.94 |
||
| replacement | |||||
|
63141G
|
63141G
63103-65020 Reinforcement, Roof Panel, No.1[10.1996 -] BXD20 |
63103-65020 |
US $216.94 |
||
|
63142
|
63142
63142-65010 Reinforcement, Roof Panel, No.2[10.1996 -] BXD20 |
63142-65010 |
US $216.94 |
||
|
63155A
|
63155A
63155-65020 Plate, Roof Panel Reinforcement[12.1996 -] BXD20..HRF |
63155-65020 |
US $11.94 |
||
|
63191A
|
63191A
63191-65010
Weatherstrip, Roof Window, No.1
[12.1996 -] BXD20..HRF |
63191-65010 |
— | ||
|
63193A
|
63193A
63193-65010
Weatherstrip, Roof Window, No.2 Rh
[12.1996 -] BXD20..HRF |
63193-65010 |
— | ||
|
63194B
|
63194B
63193-65010
Weatherstrip, Roof Window, No.2 Rh
[12.1996 -] BXD20..HRF |
63193-65010 |
— | ||
|
63212A
|
63212A
63212-65020
Glass, Roof Window
[12.1996 -] BXD20..HRF *TT,T=4.0,GREEN |
63212-65020 |
— | ||
|
63213C
|
63213C
63213-65020
Glass, Roof Window, No.2 Rh
[12.1996 -] BXD20..HRF |
63213-65020 |
— | ||
|
63214J
|
63214J
63214-65020
Glass, Roof Window, No.2 Lh
[12.1996 -] BXD20..HRF |
63214-65020 |
— | ||
|
63228E
|
63228E
63228-65010 Bracket, Roof Headlining, No.1[10.1996 -] BXD20 |
63228-65010 |
US $20.09 |
||
|
63253H
|
63253H
63253-65020 Strength, Roof Panel, Center No.3[12.1996 -] BXD20..HRF |
63253-65020 |
US $104.83 |
||
|
63385C
|
63385C
63385-65010 Retainer, Roof Headlining Trim Side, Rh[12.1996 - 03.1998] BXD20..HRF |
63385-65010 |
US $42.66 |
||
|
63385C
|
63385C
63385-65011 Retainer, Roof Headlining Trim Side, Rh[03.1998 -] BXD20..HRF |
63385-65011 |
US $42.66 |
||
|
63386C
|
63386C
63386-65010 Retainer, Roof Headlining Trim Side, Lh[12.1996 - 03.1998] BXD20..HRF |
63386-65010 |
US $42.66 |
||
|
63386C
|
63386C
63386-65011 Retainer, Roof Headlining Trim Side, Lh[03.1998 -] BXD20..HRF |
63386-65011 |
US $42.66 |
||
|
63387A
|
63387A
63387-65010 Bracket, Roof Headlining Holder[12.1996 - 06.1997] BXD20..HRF |
63387-65010 |
US $19.66 |
||
|
63387A
|
63387A
63387-65011 Bracket, Roof Headlining Holder[06.1997 -] BXD20..HRF |
63387-65011 |
US $19.80 |
||
|
63389D
|
63389D
63389-65020 Retainer, Roof Headlining Trim, Center[12.1996 - 03.1998] BXD20..HRF |
63389-65020 |
US $42.66 |
||
|
63713
|
63713
63713-65010 Bracket, Roof Panel Reinforcement, No.3[12.1996 -] BXD20..HRF |
63713-65010 |
US $10.92 |
||
|
63713B
|
63713B
63713-65010 Bracket, Roof Panel Reinforcement, No.3[12.1996 -] BXD20..HRF |
63713-65010 |
US $10.92 |
||
