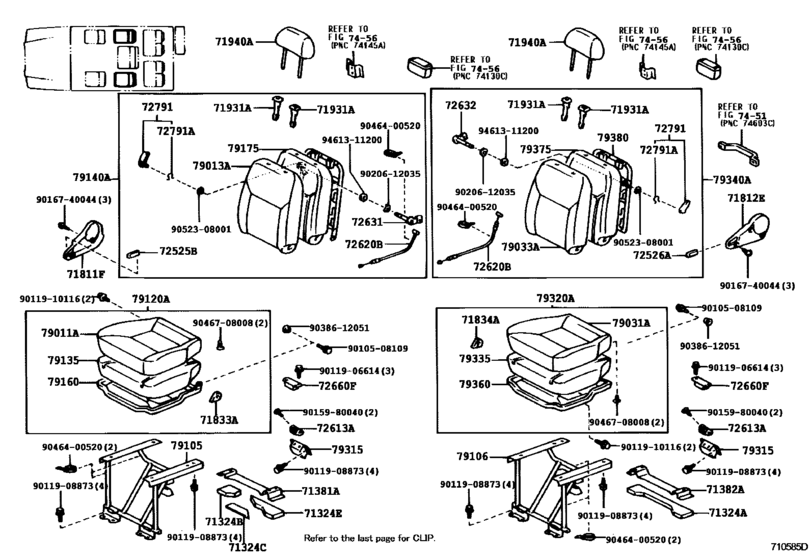

Seat & Seat Track ([12.1996 - ] (9612- )HRF) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- HRF
- ENGINE
- 15BFT
- From
- 12.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71324A
|
71324A
71324-65020 Cushion, Rear SeatREAR SEAT [12.1996 -] BXD20..HRF |
71324-65020 |
US $14.71 |
||
|
71324B
|
71324B
71324-65030 Cushion, Rear SeatREAR SEAT [12.1996 -] BXD20..HRF |
71324-65030 |
US $35.24 |
||
|
71324C
|
71324C
71324-65040 Cushion, Front SeatFRONT SEAT [12.1996 -] BXD20..HRF |
71324-65040 |
US $10.19 |
||
|
71324E
|
71324E
71324-65050 Cushion, Rear Seat, LhREAR SEAT, LH [12.1996 -] BXD20..HRF |
71324-65050 |
US $54.16 |
||
|
71381A
|
71381A
71381-65040 Bracket, Rear Seat Cushion Set, RhREAR SEAT CUSHION SET, RH [12.1996 -] BXD20..HRF |
71381-65040 |
US $35.53 |
||
|
71382A
|
71382A
71382-65020 Bracket, Rear Seat Cushion Set, LhREAR SEAT CUSHION SET, LH [12.1996 -] BXD20..HRF |
71382-65020 |
US $35.53 |
||
|
71811F
|
71811F
71811-95J00-B0 Cover, Reclining Adjuster, Rh[10.1996 -] BXD20 BLUISH GRAY,TRIM1# |
71811-95J00-B0 |
US $33.20 |
||
|
71812E
|
71812E
71812-95J00-B0 Cover, Reclining Adjuster, Lh[10.1996 -] BXD20 GRAY,TRIM1# |
71812-95J00-B0 |
US $32.18 |
||
|
71833A
|
71833A
71831-95J00-B0 Cover, Front Seat Hinge, Rh[10.1996 -] BXD20 BLUISH GRAY,TRIM1# |
71831-95J00-B0 |
US $6.81 |
||
|
71834A
|
71834A
71832-95J01-B0 Cover, Front Seat Hinge, Lh[10.1996 -] BXD20 BLUISH GRAY,TRIM1# |
71832-95J01-B0 |
US $6.99 |
||
|
71931A
|
71931A
71930-26010-B0
Support, Front Seat Headrest
[10.1996 -] BXD20 W(LOCK),BLUISH GRAY,TRIM1# |
71930-26010-B0 |
— | ||
| replacement | |||||
|
71931A
|
71931A
71930-26010-B3 Support, Front Seat Headrest[10.1996 -] BXD20 W(LOCK),BLUISH GRAY,TRIM1# |
71930-26010-B3 |
US $17.82 |
||
|
71931A
|
71931A
71931-26010-B0
Support, Front Seat Headrest
[10.1996 -] BXD20 W/O(LOCK),BLUISH GRAY,TRIM1# |
71931-26010-B0 |
— | ||
| replacement | |||||
|
71931A
|
71931A
71931-26010-B3 Support, Front Seat Headrest[10.1996 -] BXD20 W/O(LOCK),BLUISH GRAY,TRIM1# |
71931-26010-B3 |
US $13.28 |
||
|
71940A
|
71940A
71910-65010-B0 Headrest Assy, Front Seat[10.1996 -] BXD20 BLUISH GRAY,TRIM1# |
71910-65010-B0 |
US $519.79 |
||
|
72525B
|
72525B
72525-95J01-B0 Handle, Reclining Adjuster Release, Rh[12.1996 -] BXD20 BLUISH GRAY,TRIM1# |
72525-95J01-B0 |
US $9.61 |
||
|
72526A
|
72526A
72525-95J01-B0 Handle, Reclining Adjuster Release, Rh[10.1996 -] BXD20 BLUISH GRAY,TRIM1# |
72525-95J01-B0 |
US $9.61 |
||
|
72613A
|
72613A
51940-89101 Striker Assy, Spare Wheel Carrier Lock[12.1996 -] BXD20..HRF |
51940-89101 |
from US $15.03 |
||
|
72620B
|
72620B
51950-65020 Cable Assy, Rear No.1 Seat LockREAR NO.1 SEAT LOCK [12.1996 -] BXD20..HRF |
51950-65020 |
US $37.42 |
||
|
72631
|
72631
72607-65010 Plate, Rear Seat Back Lock, RhREAR SEAT BACK LOCK, RH [12.1996 -] BXD20..HRF |
72607-65010 |
US $16.16 |
||
|
72632
|
72632
72608-65010 Plate, Rear Seat Back Lock, LhREAR SEAT BACK LOCK, LH [12.1996 -] BXD20..HRF |
72608-65010 |
US $16.16 |
||
|
72660F
|
72660F
51930-89101 Lock Assy, Spare Wheel Carrier[12.1996 -] BXD20..HRF |
51930-89101 |
from US $66.98 |
||
|
72791
|
72791
72791-89102-B0
Handle, Rear Seat Headrest
[12.1996 -] BXD20..HRF BLUISH GRAY,TRIM1# |
72791-89102-B0 |
— | ||
| replacement | |||||
|
72791
|
72791
71984-60010-C0 Handle, Rear Seat Headrest (Black)[12.1996 -] BXD20..HRF BLUISH GRAY,TRIM1# |
71984-60010-C0 |
US $14.33 |
||
|
72791A
|
72791A
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)[12.1996 -] BXD20..HRF |
90520-01274 |
from US $0.91 |
||
|
79011A
|
79011A
71075-65030-B0 Cover Sub-Assy, No.1 Seat Cushion[10.1996 -] BXD20 BLUISH GRAY,TRIM1# |
71075-65030-B0 |
US $445.54 |
||
|
79013A
|
79013A
71077-65020-B0 Cover Sub-Assy, No.1 Seat Back[10.1996 -] BXD20 BLUISH GRAY,TRIM1# |
71077-65020-B0 |
US $598.42 |
||
|
79031A
|
79031A
71076-65010-B0 Cover Sub-Assy, No.3 Seat Cushion[10.1996 -] BXD20 BLUISH GRAY,TRIM1# |
71076-65010-B0 |
US $445.54 |
||
|
79033A
|
79033A
71078-65010-B0 Cover Sub-Assy, No.3 Seat Back[10.1996 -] BXD20 BLUISH GRAY,TRIM1# |
71078-65010-B0 |
US $598.42 |
||
|
79105
|
79105
79305-65030 Leg Sub-Assy, No.1 Seat, RhNO.1 SEAT, RH [12.1996 -] BXD20..HRF |
79305-65030 |
US $237.33 |
||
|
79106
|
79106
79306-65040 Leg Sub Assy, No.1 Seat, LhNO.1 SEAT, LH [12.1996 -] BXD20..HRF |
79306-65040 |
US $270.82 |
||
|
79120A
|
79120A
71460-65030-B0 Cushion Assy, No.1 Seat[10.1996 -] BXD20 ***,BLUISH GRAY,TRIM1# |
71460-65030-B0 |
US $956.59 |
||
|
79135
|
79135
71511-95J15 Pad, No.1 Seat Cushion[10.1996 -] BXD20 |
71511-95J15 |
US $244.61 |
||
|
79140A
|
79140A
71401-65040-B0
Back Assy, No.1 Seat
[12.1996 -] BXD20..HRF ***,BLUISH GRAY,TRIM1# |
71401-65040-B0 |
— | ||
|
79160
|
79160
71015-65020 Spring Assy, No.1 Seat Cushion[10.1996 -] BXD20 |
71015-65020 |
US $161.62 |
||
|
79175
|
79175
71551-95J20 Pad, Front Seat Back, Rh(For Separate Type)[10.1996 -] BXD20 |
71551-95J20 |
US $187.82 |
||
|
79315
|
79315
79315-65020 Bracket, No.3 Seat LockNO.3 SEAT LOCK [12.1996 -] BXD20..HRF |
79315-65020 |
US $24.75 |
||
|
79320A
|
79320A
71470-65010-B0 Cushion Assy, No.3 Seat[10.1996 -] BXD20 ***,BLUISH GRAY,TRIM1# |
71470-65010-B0 |
US $956.59 |
||
|
79335
|
79335
71512-95J06 Pad, Front Seat Cushion, Lh (For Separate Type)[10.1996 -] BXD20 |
71512-95J06 |
US $244.61 |
||
|
79340A
|
79340A
71402-65050-B0
Back Assy, No.3 Seat
[12.1996 -] BXD20..HRF ***,BLUISH GRAY,TRIM1# |
71402-65050-B0 |
— | ||
|
79360
|
79360
71016-65010 Spring Assy, No.3 Seat Cushion[10.1996 -] BXD20 |
71016-65010 |
US $161.62 |
||
|
79375
|
79375
71551-95J20 Pad, Front Seat Back, Rh(For Separate Type)[10.1996 -] BXD20 |
71551-95J20 |
US $187.82 |
||
|
79380
|
79380
71018-65030 Spring Assy, No.3 Seat BackNO.3 SEAT BACK [12.1996 -] BXD20..HRF |
71018-65030 |
US $243.15 |
||
|
9010508109
|
9010508109
90105-08109 New Genuine Part |
90105-08109 |
US $2.04 |
||
|
9011906614
|
9011906614
90119-06614
BOLT WWASHER
|
90119-06614 |
— | ||
| replacement | |||||
|
9011906614
|
9011906614
90119-06877 BOLT WWASHER |
90119-06877 |
from US $0.65 |
||
|
9011908873
|
9011908873
90119-08873 New Genuine Part |
90119-08873 |
US $2.04 |
||
|
9011910116
|
9011910116
90119-10116
New Genuine Part
|
90119-10116 |
— | ||
| replacement | |||||
|
9011910116
|
9011910116
90119-10229 BOLT |
90119-10229 |
US $3.67 |
||
|
9015980040
|
9015980040
90159-80040
New Genuine Part
|
90159-80040 |
— | ||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.70 |
||
|
9020612035
|
9020612035
90206-12035 Plate, Rear Seat Center Armrest, No.2 |
90206-12035 |
US $1.46 |
||
|
9038612051
|
9038612051
90386-12051 Bush (For Front Seat Hinge Pin) |
90386-12051 |
US $2.62 |
||
|
9046400520
|
9046400520
90464-00520 New Genuine Part |
90464-00520 |
US $1.75 |
||
|
9046708008
|
9046708008
90467-08008 Clip, Step Plate Cover |
90467-08008 |
from US $2.51 |
||
|
9052308001
|
9052308001
90523-08001 E Ring (For Tilt Motor Shaft, Lower) |
90523-08001 |
from US $1.40 |
||
|
9461311200
|
9461311200
94613-11200 WASHER |
94613-11200 |
US $1.25 |
||
