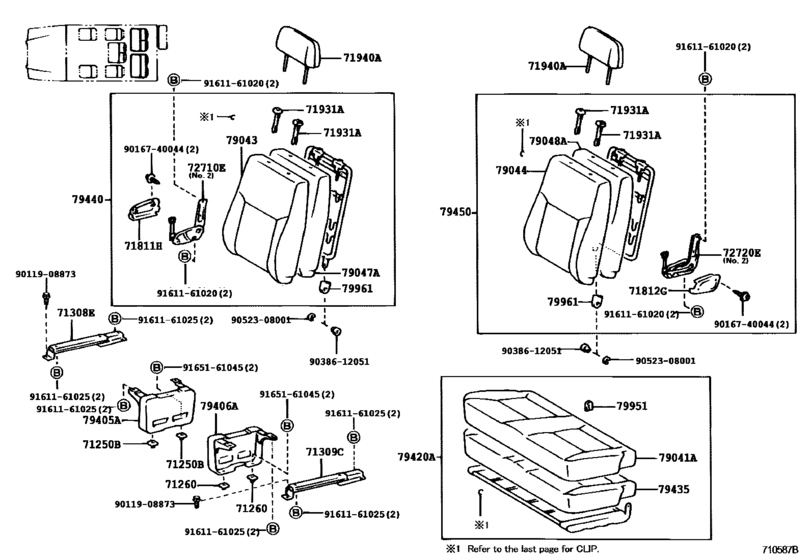

Seat & Seat Track ([12.1996 - ] (9612- )HRF) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- HRF
- ENGINE
- 15BFT
- From
- 12.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71250B
|
71250B
71260-65010 Bracket Assy, Seat, Outer RhSEAT, OUTER RH [12.1996 -] BXD20..HRF |
71260-65010 |
US $69.31 |
||
|
71260
|
71260
71260-65010 Bracket Assy, Seat, Outer RhSEAT, OUTER RH [12.1996 -] BXD20..HRF |
71260-65010 |
US $69.31 |
||
|
71308E
|
71308E
71308-65010 Leg Sub-Assy, Rear Seat, RhREAR SEAT, RH [12.1996 -] BXD20..HRF |
71308-65010 |
US $91.73 |
||
|
71309C
|
71309C
71309-65010 Leg Sub-Assy, Rear Seat, Rear LhREAR SEAT, REAR LH [12.1996 -] BXD20..HRF |
71309-65010 |
US $91.73 |
||
|
71811H
|
71811H
71811-95J01-B0 Cover, Reclining Adjuster, Rh[12.1996 -] BXD20..HRF GRAY,TRIM1# |
71811-95J01-B0 |
US $19.80 |
||
|
71812G
|
71812G
71812-95400-B0 Cover, Reclining Adjuster, Lh[12.1996 -] BXD20..HRF GRAY,TRIM1# |
71812-95400-B0 |
US $12.23 |
||
|
71931A
|
71931A
71930-26010-B0
Support, Front Seat Headrest
[10.1996 -] BXD20 W(LOCK),BLUISH GRAY,TRIM1# |
71930-26010-B0 |
— | ||
| replacement | |||||
|
71931A
|
71931A
71930-26010-B3 Support, Front Seat Headrest[10.1996 -] BXD20 W(LOCK),BLUISH GRAY,TRIM1# |
71930-26010-B3 |
US $17.82 |
||
|
71931A
|
71931A
71931-26010-B0
Support, Front Seat Headrest
[10.1996 -] BXD20 W/O(LOCK),BLUISH GRAY,TRIM1# |
71931-26010-B0 |
— | ||
| replacement | |||||
|
71931A
|
71931A
71931-26010-B3 Support, Front Seat Headrest[10.1996 -] BXD20 W/O(LOCK),BLUISH GRAY,TRIM1# |
71931-26010-B3 |
US $13.28 |
||
|
71940A
|
71940A
71910-65010-B0 Headrest Assy, Front Seat[10.1996 -] BXD20 BLUISH GRAY,TRIM1# |
71910-65010-B0 |
US $519.79 |
||
|
72710E
|
72710E
72710-65020 Adjuster Assy, No.1 Seat RecliningNO.1 SEAT RECLINING [12.1996 -] BXD20..HRF NO.1 |
72710-65020 |
US $251.89 |
||
|
72710E
|
72710E
72710-95J02-B0 Adjuster Assy, No.1 Seat Reclining, Rh[12.1996 -] BXD20..HRF BLUISH GRAY,TRIM1# |
72710-95J02-B0 |
US $155.79 |
||
|
72720E
|
72720E
72720-65020 Adjuster Assy, No.1 Seat Reclining, LhNO.1 SEAT RECLINING, LH [12.1996 -] BXD20..HRF NO.1 |
72720-65020 |
US $251.89 |
||
|
72720E
|
72720E
72720-95J05-11 Adjuster Assy, No.1 Seat Reclining, Lh[12.1996 -] BXD20..HRF BLUISH GRAY,TRIM1# |
72720-95J05-11 |
US $155.79 |
||
|
79041A
|
79041A
79011-65010-B0
Cover Sub-Assy, No.2 Seat Cushion
[12.1996 -] BXD20..HRF BLUISH GRAY,TRIM1# |
79011-65010-B0 |
— | ||
|
79043
|
79043
79013-65010-B0
Cover Sub-Assy, No.2 Seat Back, Rh
[12.1996 -] BXD20..HRF BLUISH GRAY,TRIM1# |
79013-65010-B0 |
— | ||
|
79044
|
79044
79014-65010-B0
Cover Sub-Assy, No.2 Seat Back, Lh
[12.1996 -] BXD20..HRF BLUISH GRAY,TRIM1# |
79014-65010-B0 |
— | ||
|
79047A
|
79047A
79017-26031 Pad, No.1 Seat Back[12.1996 -] BXD20..HRF |
79017-26031 |
US $419.33 |
||
|
79048A
|
79048A
79018-26011 Pad, No.1 Seat Back, Lh[12.1996 -] BXD20..HRF |
79018-26011 |
US $419.33 |
||
|
79405A
|
79405A
79106-65010 Leg Sub-Assy, No.4 Seat, RhNO.4 SEAT, RH [12.1996 -] BXD20..HRF |
79106-65010 |
US $138.32 |
||
|
79406A
|
79406A
79105-65010 Leg Sub-Assy, No.4 Seat, LhNO.4 SEAT, LH [12.1996 -] BXD20..HRF |
79105-65010 |
US $126.67 |
||
|
79420A
|
79420A
79120-65020-B0
Cushion Assy, No.2 Seat
[12.1996 -] BXD20..HRF ***,BLUISH GRAY,TRIM1# |
79120-65020-B0 |
— | ||
|
79435
|
79435
79015-95J01 Pad, No.1 Seat Cushion[12.1996 -] BXD20..HRF |
79015-95J01 |
US $302.85 |
||
|
79440
|
79440
79140-65010-B0
Back Assy, No.4 Seat, Rh
[12.1996 -] BXD20..HRF ***,BLUISH GRAY,TRIM1# |
79140-65010-B0 |
— | ||
|
79450
|
79450
79150-65010-B0
Back Assy, No.4 Seat, Lh
[12.1996 -] BXD20..HRF ***,BLUISH GRAY,TRIM1# |
79150-65010-B0 |
— | ||
|
79951
|
79951
79951-95J01-B0 Cover, No.1 Seat Cushion[12.1996 -] BXD20..HRF BLUISH GRAY,TRIM1# |
79951-95J01-B0 |
US $3.20 |
||
|
79961
|
79961
79961-95J04-B0 Cover, No.1 Seat Back[12.1996 -] BXD20..HRF BLUISH GRAY,TRIM1# |
79961-95J04-B0 |
US $5.24 |
||
|
9011908873
|
9011908873
90119-08873 New Genuine Part |
90119-08873 |
US $2.04 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.70 |
||
|
9038612051
|
9038612051
90386-12051 Bush (For Front Seat Hinge Pin) |
90386-12051 |
US $2.62 |
||
|
9052308001
|
9052308001
90523-08001 E Ring (For Tilt Motor Shaft, Lower) |
90523-08001 |
from US $1.40 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.68 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.05 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.93 |
||
|
9165161045
|
9165161045
91651-61045 BOLT |
91651-61045 |
US $0.96 |
||
