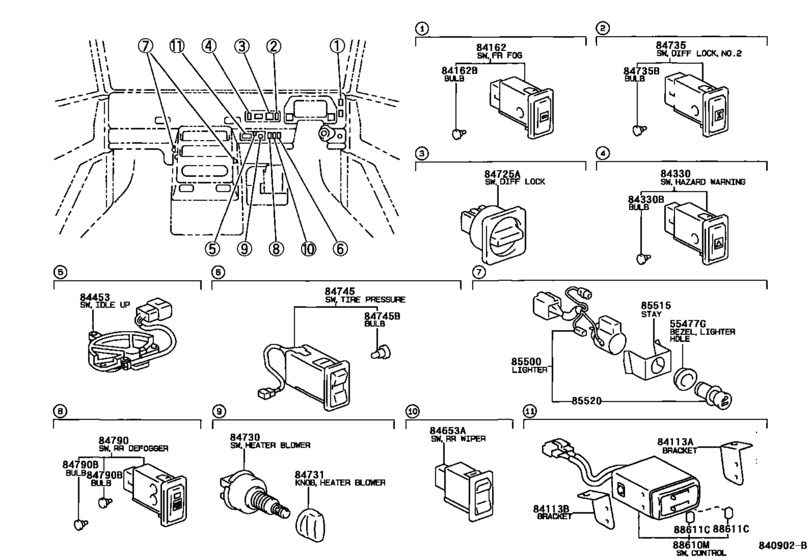

Switch & Relay & Computer ([10.1996 - ] INSTRUMENT PANEL SWITCH (9610- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- HRF
- ENGINE
- 15BFT
- From
- 12.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55477G
|
55477G
55477-37010 Bezel, Cigarette Lighter Hole[10.1996 -] BXD20 |
55477-37010 |
US $3.64 |
||
|
84113A
|
84113A
84113-65020
Bracket, Switch, No.1
[10.1996 - 06.1999] BXD20 |
84113-65020 |
— | ||
|
84113B
|
84113B
84113-65030
Bracket, Switch, No.2
[10.1996 - 06.1999] BXD20 |
84113-65030 |
— | ||
|
84162
|
84162
84162-65020
Switch, Front Fog Lamp
[10.1996 -] BXD20 |
84162-65020 |
— | ||
|
84162B
|
84162B
84999-10610 Bulb, Fog Lamp Switch[10.1996 -] BXD20 28V 0.84W |
84999-10610 |
from US $6.06 |
||
|
84330
|
84330
84332-65020 Switch Assy, Hazard Warning Signal[10.1996 -] BXD20 |
84332-65020 |
US $80.08 |
||
|
84330B
|
84330B
84999-10610 Bulb, Fog Lamp Switch[10.1996 -] BXD20 28V 0.84W |
84999-10610 |
from US $6.06 |
||
|
84453
|
84453
84453-65010 Switch, Idle Up[10.1996 -] BXD20 |
84453-65010 |
US $80.08 |
||
|
84725A
|
84725A
84725-65010 Switch, Differential Lock[10.1996 -] BXD20 |
84725-65010 |
US $73.56 |
||
|
84730
|
84730
84732-12020 Switch Assy, Heater Blower[10.1996 -] BXD20 |
84732-12020 |
US $40.88 |
||
|
84731
|
84731
84731-12010 Knob, Heater Blower Switch[10.1996 -] BXD20 |
84731-12010 |
from US $6.81 |
||
|
84735
|
84735
84735-65020
Switch, Differential Lock, No.2
[10.1996 -] BXD20 |
84735-65020 |
— | ||
|
84735B
|
84735B
84999-10610 Bulb, Fog Lamp Switch[10.1996 -] BXD20 |
84999-10610 |
from US $6.06 |
||
|
84745
|
84745
84745-65010 Switch, Tire Pressure Control[10.1996 - 10.2000] BXD20 |
84745-65010 |
US $109.20 |
||
| replacement | |||||
|
84745
|
84745
84745-65020 Switch, Tire Pressure Control[10.1996 - 10.2000] BXD20 |
84745-65020 |
US $53.87 |
||
|
84745
|
84745
84745-65020 Switch, Tire Pressure Control[10.2000 -] BXD20 |
84745-65020 |
US $53.87 |
||
|
84745B
|
84745B
84999-10100 Bulb, Position Indicator Lamp[10.1996 -] BXD20 |
84999-10100 |
US $7.17 |
||
|
85500
|
85500
85500-37030 Lighter Assy, Cigarette[10.1996 -] BXD20 |
85500-37030 |
US $70.47 |
||
|
85515
|
85515
85515-65010 Stay, Cigarette Lighter Bezel[10.1996 - 06.1997] BXD20 |
85515-65010 |
US $9.90 |
||
|
85520
|
85520
85520-95400 Knob And Element Assy, Cigarette Lighter[10.1996 - 10.2001] BXD20 |
85520-95400 |
US $25.03 |
||
|
88610M
|
88610M
88610-65010
Switch Assy, Cooler Control
[10.1996 - 06.1999] BXD20 |
88610-65010 |
— | ||
| replacement | |||||
|
88610M
|
88610M
88610-65020
Switch Assy, Cooler Control
[10.1996 - 06.1999] BXD20 |
88610-65020 |
— | ||
|
88610M
|
88610M
88610-65020
Switch Assy, Cooler Control
[06.1999 -] BXD20 |
88610-65020 |
— | ||
|
88611C
|
88611C
88611-95A00
Knob, Cooler Control Switch
[06.1999 -] BXD20 |
88611-95A00 |
— | ||
