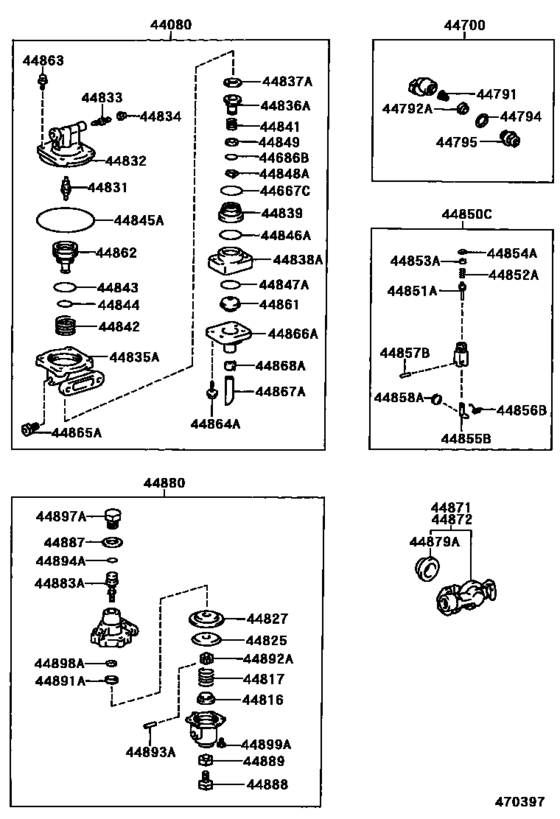

Air Brake System ([10.1996 - ] (9610- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- SRF
- ENGINE
- 15BFT
- From
- 10.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44080
|
44080
44080-65010 Valve Assy, Air Brake Relay[10.1996 -] BXD20 |
44080-65010 |
US $407.68 |
||
|
44667C
|
44667C
44667-55090
Ring, O, No.1(For Air Brake Relay Valve)
[10.1996 -] BXD20 |
44667-55090 |
— | ||
|
44686B
|
44686B
44686-55090 Ring, O, No.2(For Air Brake Relay Valve)[10.1996 -] BXD20 |
44686-55090 |
US $2.91 |
||
|
44700
|
44700
44700-65010 Valve Assy, Air Brake Check[10.1996 -] BXD20 |
44700-65010 |
US $28.68 |
||
|
44791
|
44791
44791-65010 Spring, Air Brake Check Valve[10.1996 -] BXD20 |
44791-65010 |
US $0.29 |
||
|
44792A
|
44792A
44792-65010 Valve, Air Brake Check[10.1996 -] BXD20 |
44792-65010 |
US $2.33 |
||
|
44794
|
44794
44794-65010 Ring, Air Brake Check Valve[10.1996 -] BXD20 |
44794-65010 |
US $1.31 |
||
|
44795
|
44795
44795-65010 Union, Air Brake Check Valve[10.1996 -] BXD20 |
44795-65010 |
US $4.37 |
||
|
44816
|
44816
44816-65010 Seat, Air Brake Reducing Valve Spring[10.1996 -] BXD20 |
44816-65010 |
US $2.91 |
||
|
44817
|
44817
44817-65010 Spring, Air Brake Reducing Valve[10.1996 -] BXD20 |
44817-65010 |
US $4.51 |
||
|
44825
|
44825
44825-65010 Plate, Air Brake Reducing Valve Diaphragm[10.1996 -] BXD20 |
44825-65010 |
US $1.31 |
||
|
44827
|
44827
44827-65010 Diaphragm, Air Brake Reducing Valve[10.1996 -] BXD20 |
44827-65010 |
US $3.79 |
||
|
44831
|
44831
44831-65010
Piston, Air Brake Relay Valve
[10.1996 -] BXD20 |
44831-65010 |
— | ||
|
44832
|
44832
44832-65010
Housing, Air Brake Relay Valve
[10.1996 -] BXD20 |
44832-65010 |
— | ||
|
44833
|
44833
44833-65010
Plug, Air Brake Relay Valve
[10.1996 -] BXD20 |
44833-65010 |
— | ||
|
44834
|
44834
44834-65010 Protector, Air Brake Relay Valve[10.1996 -] BXD20 |
44834-65010 |
US $3.49 |
||
|
44835A
|
44835A
44835-65010
Body, Air Brake Relay Valve
[10.1996 -] BXD20 |
44835-65010 |
— | ||
|
44836A
|
44836A
44836-65010
Valve, Air Brake Relay Inlet
[10.1996 -] BXD20 |
44836-65010 |
— | ||
|
44837A
|
44837A
44837-65010
Retainer, Air Brake Relay Valve, No.1
[10.1996 -] BXD20 |
44837-65010 |
— | ||
|
44838A
|
44838A
44838-65010
Retainer, Air Brake Relay Valve, No.2
[10.1996 -] BXD20 |
44838-65010 |
— | ||
|
44839
|
44839
44839-65010
Guide, Air Brake Relay Valve
[10.1996 -] BXD20 |
44839-65010 |
— | ||
|
44841
|
44841
44841-65010
Spring, Air Brake Relay Valve No.1
[10.1996 -] BXD20 |
44841-65010 |
— | ||
|
44842
|
44842
44842-65010
Spring, Air Brake Relay Valve, No.2
[10.1996 -] BXD20 |
44842-65010 |
— | ||
|
44843
|
44843
44843-65010 Ring, Air Brake Relay Valve, No.1[10.1996 -] BXD20 |
44843-65010 |
US $5.53 |
||
|
44844
|
44844
44844-65010 Ring, Air Brake Relay Valve, No.2[10.1996 -] BXD20 |
44844-65010 |
US $4.66 |
||
|
44845A
|
44845A
44845-65010 Ring, Air Brake Relay Valve, No.3[10.1996 -] BXD20 |
44845-65010 |
US $5.53 |
||
|
44846A
|
44846A
44846-65010 Ring, Air Brake Relay Valve, No.4[10.1996 -] BXD20 |
44846-65010 |
US $4.66 |
||
|
44847A
|
44847A
44847-65010 Ring, Air Brake Relay Valve, No.5[10.1996 -] BXD20 |
44847-65010 |
US $4.66 |
||
|
44848A
|
44848A
44848-65010
Ring, Air Brake Relay Valve Snap
[10.1996 -] BXD20 |
44848-65010 |
— | ||
|
44849
|
44849
44849-65010
Washer, Air Brake Relay Valve
[10.1996 -] BXD20 |
44849-65010 |
— | ||
|
44850C
|
44850C
44850-55010 Cock Assy, Drain[10.1996 -] BXD20 |
44850-55010 |
US $55.10 |
||
|
44851A
|
44851A
44851-65010 Valve, Drain Cock[10.1996 -] BXD20 |
44851-65010 |
US $3.93 |
||
|
44852A
|
44852A
44852-65010 Spring, Drain Cock[10.1996 -] BXD20 |
44852-65010 |
US $3.35 |
||
|
44853A
|
44853A
44853-65010 Washer, Drain Cock[10.1996 -] BXD20 |
44853-65010 |
US $3.06 |
||
|
44854A
|
44854A
44854-65010 Ring, Drain Cock[10.1996 -] BXD20 |
44854-65010 |
US $2.62 |
||
|
44855B
|
44855B
44855-65010 Lever, Drain Cock[10.1996 -] BXD20 |
44855-65010 |
US $5.24 |
||
|
44856B
|
44856B
44856-65010 Spring, Drain Cock[10.1996 -] BXD20 |
44856-65010 |
US $4.08 |
||
|
44857B
|
44857B
44857-65010 Pin, Drain Cock Lever[10.1996 -] BXD20 |
44857-65010 |
US $2.91 |
||
|
44858A
|
44858A
44858-65010 Ring, Drain Cock Lever Set[10.1996 -] BXD20 |
44858-65010 |
US $2.04 |
||
|
44861
|
44861
44861-65010
Cover, Air Brake Relay Valve Exhaust
[10.1996 -] BXD20 |
44861-65010 |
— | ||
|
44862
|
44862
44862-65010
Piston, Air Brake Relay
[10.1996 -] BXD20 |
44862-65010 |
— | ||
|
44863
|
44863
44863-65010
Screw, Air Brake Relay Valve, No.1
[10.1996 -] BXD20 |
44863-65010 |
— | ||
|
44864A
|
44864A
44864-65010
Screw, Air Brake Relay Valve, No.2
[10.1996 -] BXD20 |
44864-65010 |
— | ||
|
44865A
|
44865A
44865-65010
Connector, Air Brake Relay Valve
[10.1996 -] BXD20 |
44865-65010 |
— | ||
|
44866A
|
44866A
44866-65010
Cover, Air Brake Relay Valve End
[10.1996 -] BXD20 |
44866-65010 |
— | ||
|
44867A
|
44867A
44867-65010
Hose, Air Brake Relay Valve
[10.1996 -] BXD20 |
44867-65010 |
— | ||
|
44868A
|
44868A
44868-65010
Clamp, Air Brake Relay Valve
[10.1996 -] BXD20 |
44868-65010 |
— | ||
|
44871
|
44871
44871-65010 Coupling, Trailer Air Brake Emergency[10.1996 -] BXD20 |
44871-65010 |
US $116.44 |
||
|
44872
|
44872
44872-65010 Coupling, Trailer Air Brake Service[10.1996 -] BXD20 |
44872-65010 |
US $94.64 |
||
|
44879A
|
44879A
44879-65010 Seal, Trailer Air Brake Coupling[10.1996 -] BXD20 |
44879-65010 |
US $4.27 |
||
|
44880
|
44880
44880-65010 Valve Assy, Air Brake Reducing[10.1996 -] BXD20 |
44880-65010 |
US $244.61 |
||
|
44883A
|
44883A
44883-65010 Valve, Air Brake Reducing[10.1996 -] BXD20 |
44883-65010 |
US $26.94 |
||
|
44887
|
44887
44887-65010 Packing, Air Brake Reducing Valve, No.2[10.1996 -] BXD20 |
44887-65010 |
US $1.89 |
||
|
44888
|
44888
44888-65010 Packing, Air Brake Reducing Valve Adjusting[10.1996 -] BXD20 |
44888-65010 |
US $3.20 |
||
|
44889
|
44889
44889-65010 Nut, Air Brake Reducing Valve[10.1996 -] BXD20 |
44889-65010 |
US $0.73 |
||
|
44891A
|
44891A
44891-65010 Washer, Air Brake Reducing Valve Diaphrgm[10.1996 -] BXD20 |
44891-65010 |
US $2.18 |
||
|
44892A
|
44892A
44892-65010 Nut, Air Brake Reducing Valve Square[10.1996 -] BXD20 |
44892-65010 |
US $0.73 |
||
|
44893A
|
44893A
44893-65010 Pin, Air Brake Reducing Valve[10.1996 -] BXD20 |
44893-65010 |
US $0.15 |
||
|
44894A
|
44894A
44894-65010 Ring, Air Brake Reducing Valve[10.1996 -] BXD20 |
44894-65010 |
US $0.87 |
||
|
44897A
|
44897A
44897-65010 Plug, Air Brake Reducing Valve, No.1[10.1996 -] BXD20 |
44897-65010 |
US $14.71 |
||
|
44898A
|
44898A
44898-65010 Packing, Air Brake Reducing Valve Plug[10.1996 -] BXD20 |
44898-65010 |
US $0.87 |
||
|
44899A
|
44899A
44899-65010 Plug, Air Brake Reducing Valve, No.2[10.1996 -] BXD20 |
44899-65010 |
US $0.29 |
