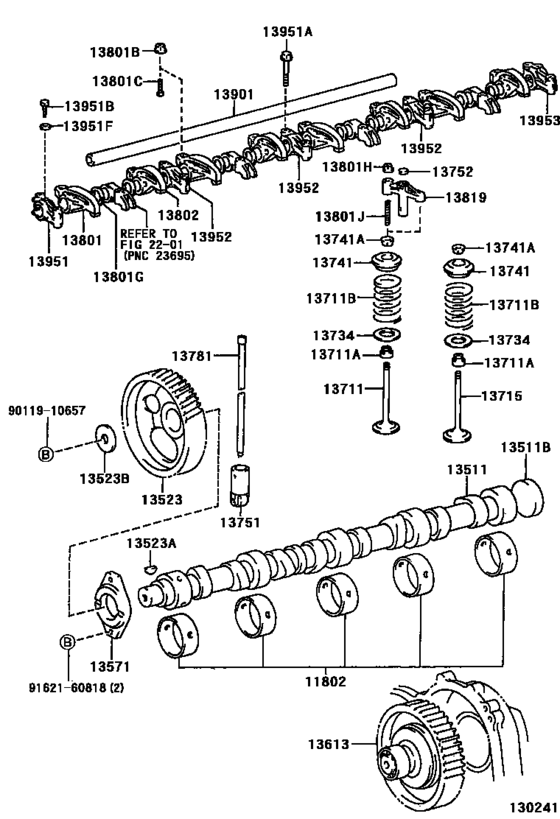

Camshaft & Valve ([10.1996 - ] (9610- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- SRF
- ENGINE
- 15BFT
- From
- 10.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11802
|
11802
11802-56030 Bearing Set, Camshaft[10.1996 - 05.1999] 15BFT..BXD20 STD |
11802-56030 |
from US $53.01 |
||
|
11802
|
11802
11802-56031 Bearing Set, Camshaft[05.1999 -] 15BFT..BXD20 STD |
11802-56031 |
US $70.03 |
||
| replacement | |||||
|
11802
|
11802
11802-58010 Bearing Set, Camshaft[05.1999 -] 15BFT..BXD20 STD |
11802-58010 |
from US $43.23 |
||
|
13511
|
13511
13511-58020
Camshaft
[10.1996 -] 15BFT..BXD20 |
13511-58020 |
— | ||
| replacement | |||||
|
13511
|
13511
13511-58021 Camshaft[10.1996 -] 15BFT..BXD20 |
13511-58021 |
US $504.94 |
||
|
13511B
|
13511B
90331-58001 Plug, Expansion(For Camshaft)[10.1996 -] 15BFT..BXD20 |
90331-58001 |
US $3.44 |
||
|
13523
|
13523
13523-58010 Gear Or Sprocket, Camshaft Timing[10.1996 -] 15BFT..BXD20 |
13523-58010 |
US $148.51 |
||
|
13523A
|
13523A
95161-30519 Key(For Crankshaft Timing Gear)[10.1996 -] 15BFT..BXD20 |
95161-30519 |
US $1.49 |
||
|
13523B
|
13523B
90201-10227 Washer, Plate(For Timing Gear)[10.1996 -] 15BFT..BXD20 |
90201-10227 |
US $3.06 |
||
|
13571
|
13571
13571-56030 Plate, Camshaft Thrust[10.1996 -] 15BFT..BXD20 |
13571-56030 |
US $26.38 |
||
|
13613
|
13613
22407-58010 Gear, Injection Pump Drive[10.1996 -] 15BFT..BXD20 |
22407-58010 |
US $129.29 |
||
|
13711
|
13711
13711-58030 Valve, Intake[10.1996 -] 15BFT..BXD20 |
13711-58030 |
from US $16.97 |
||
|
13711A
|
13711A
90913-02096 Seal Or Ring, O(For Valve Stem Oil)[03.1999 -] 15BFT..BXD20 |
90913-02096 |
from US $5.36 |
||
|
13711A
|
13711A
90913-02108 Seal Or Ring, O(For Valve Stem Oil)[10.1996 - 03.1999] 15BFT..BXD20 |
90913-02108 |
US $5.78 |
||
|
13711B
|
13711B
90501-35027 Spring, Compression(For Inner)[10.1996 -] 15BFT..BXD20 |
90501-35027 |
US $4.13 |
||
|
13715
|
13715
13715-58070 Valve, Exhaust[10.1996 -] 15BFT..BXD20 |
13715-58070 |
from US $28.27 |
||
|
13734
|
13734
13734-62020 Washer, Plate(For Valve Spring Seat)[10.1996 -] 15BFT..BXD20 |
13734-62020 |
from US $0.53 |
||
|
13741
|
13741
13741-17010 Retainer, Valve Spring[10.1996 -] 15BFT..BXD20 |
13741-17010 |
from US $2.39 |
||
|
13741A
|
13741A
90913-03027 Lock, Valve Spring Retainer[10.1996 -] 15BFT..BXD20 |
90913-03027 |
from US $0.93 |
||
|
13751
|
13751
13750-58010
Lifter, Valve
[10.1996 - 09.1997] 15BFT..BXD20 |
13750-58010 |
— | ||
| replacement | |||||
|
13751
|
13751
13750-58011 Lifter, Valve[10.1996 - 09.1997] 15BFT..BXD20 |
13750-58011 |
US $29.55 |
||
|
13751
|
13751
13750-58011 Lifter, Valve[09.1997 -] 15BFT..BXD20 |
13750-58011 |
US $29.55 |
||
|
13752
|
13752
13752-58010 Pad, Valve Lifter[10.1996 -] 15BFT..BXD20 |
13752-58010 |
US $3.06 |
||
|
13781
|
13781
13781-58010 Rod, Valve Push[10.1996 -] 15BFT..BXD20 |
13781-58010 |
US $9.36 |
||
|
13801
|
13801
13811-58010 Arm Sub-Assy, Valve Rocker, No.1[10.1996 -] 15BFT..BXD20 |
13811-58010 |
US $25.48 |
||
|
13801B
|
13801B
90179-08248 Nut, Hexagon(For Valve Adjusting)[10.1996 -] 15BFT..BXD20 |
90179-08248 |
from US $0.82 |
||
|
13801C
|
13801C
90913-05025 Screw, Valve Adjusting[10.1996 -] 15BFT..BXD20 |
90913-05025 |
from US $3.85 |
||
|
13801G
|
13801G
90206-19002 Washer, Plate(For Valve Rocker Arm)[10.1996 -] 15BFT..BXD20 |
90206-19002 |
US $0.41 |
||
|
13801H
|
13801H
90179-08248 Nut, Hexagon(For Valve Adjusting)[10.1996 -] 15BFT..BXD20 |
90179-08248 |
from US $0.82 |
||
|
13801J
|
13801J
90913-05024 Screw, Valve Adjusting[10.1996 -] 15BFT..BXD20 |
90913-05024 |
from US $2.34 |
||
|
13802
|
13802
13812-58010 Arm Sub-Assy, Valve Rocker, No.2[10.1996 -] 15BFT..BXD20 |
13812-58010 |
US $22.86 |
||
|
13819
|
13819
13819-58010 Bridge, Valve[10.1996 -] 15BFT..BXD20 |
13819-58010 |
US $13.80 |
||
|
13901
|
13901
13901-56030 Shaft Sub-Assy, Valve Rocker, No.1[10.1996 -] 15BFT..BXD20 |
13901-56030 |
from US $43.33 |
||
|
13951
|
13951
13951-58010 Support, Valve Rocker, No.1[10.1996 -] 15BFT..BXD20 |
13951-58010 |
US $25.63 |
||
|
13951A
|
13951A
90105-08165 Bolt(For Rocker Support Set)[10.1996 -] 15BFT..BXD20 |
90105-08165 |
US $1.51 |
||
|
13951B
|
13951B
13958-56010 Screw Or Bolt(For Valve Rocker Shaft Lock)[10.1996 -] 15BFT..BXD20 |
13958-56010 |
US $3.04 |
||
|
13951F
|
13951F
90201-06350 Washer, Seal(For Head Cover Set)[10.1996 -] 15BFT..BXD20 |
90201-06350 |
US $0.87 |
||
|
13952
|
13952
13952-58010 Support, Valve Rocker, No.2[10.1996 -] 15BFT..BXD20 |
13952-58010 |
from US $21.77 |
||
|
13953
|
13953
13953-58010 Support, Valve Rocker, No.3[10.1996 -] 15BFT..BXD20 |
13953-58010 |
US $27.23 |
||
|
9011910657
|
9011910657
90119-10657 Bolt(For Body Mount No.4 Cushion) |
90119-10657 |
US $1.18 |
||
|
9162160818
|
9162160818
91621-60818
Bolt(For Automatic Transmission Case Protector)
|
91621-60818 |
— | ||
| replacement | |||||
|
9162160818
|
9162160818
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.91 |
||
