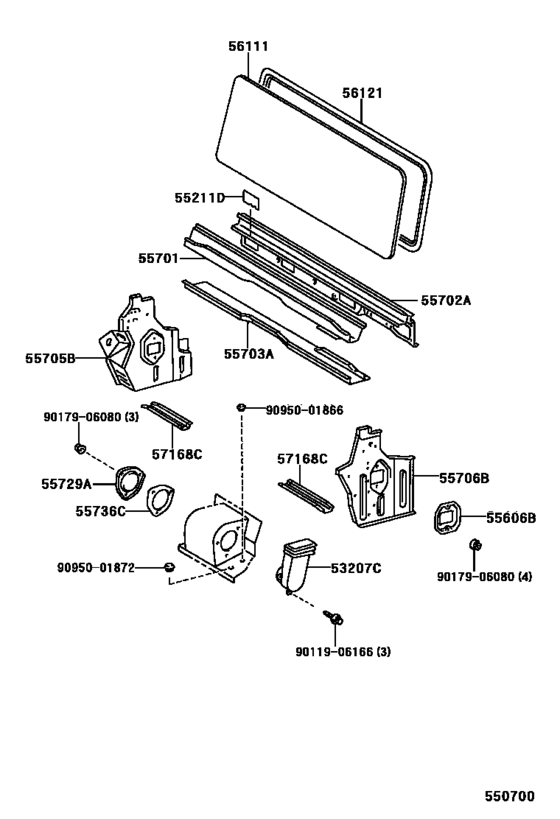

Cowl Panel & Windshield Glass ([10.1996 - ] (9610- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- SRF
- ENGINE
- 15BFT
- From
- 10.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53207C
|
53207C
53207-65020 Duct Sub-Assy, Cool Air Intake[10.1996 -] BXD20 |
53207-65020 |
US $68 |
||
|
55211D
|
55211D
55211-65010 Silencer, Front Panel, Upper[10.1996 -] BXD20 |
55211-65010 |
US $16.02 |
||
|
55606B
|
55606B
55606-65010 Cover Sub-Assy, Instrument Panel Under, No.1[10.1996 -] BXD20 |
55606-65010 |
US $45.43 |
||
|
55701
|
55701
55701-65050 Panel Sub-Assy, Cowl[10.1996 - 05.2001] BXD20 |
55701-65050 |
US $432.43 |
||
| replacement | |||||
|
55701
|
55701
55701-65070 Panel Sub-Assy, Cowl[10.1996 - 05.2001] BXD20 |
55701-65070 |
US $432.43 |
||
|
55701
|
55701
55701-65070 Panel Sub-Assy, Cowl[05.2001 -] BXD20 |
55701-65070 |
US $432.43 |
||
|
55702A
|
55702A
55702-65030 Panel Sub-Assy, Cowl Top, Outer Front[10.1996 -] BXD20 |
55702-65030 |
US $529.98 |
||
|
55703A
|
55703A
55703-65030 Panel Sub-Assy, Cowl Top, Inner[10.1996 - 06.1999] BXD20 |
55703-65030 |
US $263.54 |
||
|
55703A
|
55703A
55703-65050 Panel Sub-Assy, Cowl Top, InnerCOWL TOP, INNER [06.1999 -] BXD20 |
55703-65050 |
US $263.54 |
||
|
55705B
|
55705B
55706-65030 Panel Sub-Assy, Cowl Top Side, RhCOWL TOP SIDE, RH [10.1996 - 10.2001] BXD20 |
55706-65030 |
US $384.38 |
||
|
55706B
|
55706B
55707-65100 Panel Sub-Assy, Cowl Top Side, LhCOWL TOP SIDE, LH [10.1996 - 10.2001] BXD20 |
55707-65100 |
US $289.74 |
||
|
55729A
|
55729A
55729-65010 Cover, Cowl Panel Hole[10.1996 -] BXD20 |
55729-65010 |
US $23.15 |
||
|
55736C
|
55736C
55736-65010 Seal, Water Guard Plate[10.1996 -] BXD20 |
55736-65010 |
US $5.82 |
||
|
56111
|
56111
56111-65030
Glass, Windshield
[10.1996 -] BXD20 *TL,T=4.7,GREEN |
56111-65030 |
— | ||
|
56121
|
56121
56121-65030
Weatherstrip, Windshield
[10.1996 -] BXD20 |
56121-65030 |
— | ||
|
57168C
|
57168C
57168-65010 Member, Front Floor, Lh[10.1996 - 10.2001] BXD20 |
57168-65010 |
US $90.27 |
||
|
9011906166
|
9011906166
90119-06166 BOLT |
90119-06166 |
US $0.96 |
||
|
9017906080
|
9017906080
90179-06080 NUT |
90179-06080 |
from US $0.38 |
||
|
9095001866
|
9095001866
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.51 |
||
|
9095001872
|
9095001872
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
