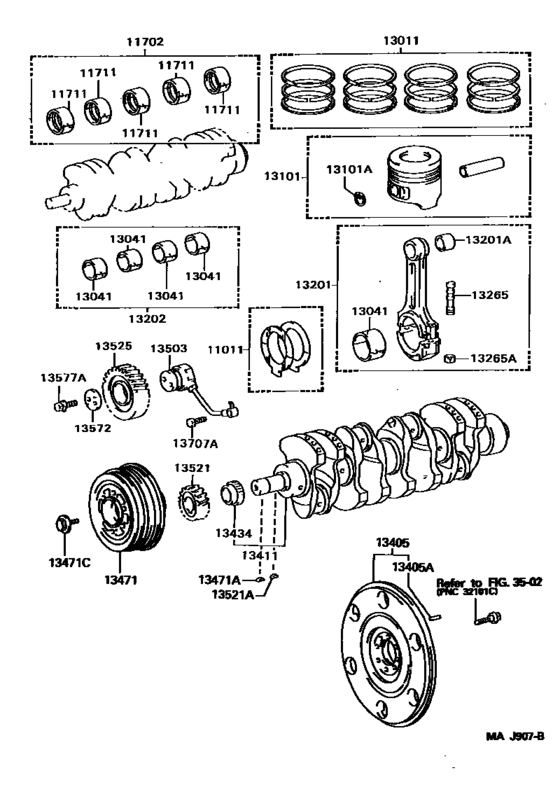

Crankshaft & Piston ([10.1996 - ] (9610- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- SRF
- ENGINE
- 15BFT
- From
- 10.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-56020 Washer Set, Crankshaft Thrust[10.1996 -] 15BFT..BXD20 STD |
11011-56020 |
US $34.59 |
||
| replacement | |||||
|
11011
|
11011
11011-58020 Washer Set, Crankshaft Thrust[10.1996 -] 15BFT..BXD20 STD |
11011-58020 |
from US $28.83 |
||
|
11011
|
11011
11012-56020
Washer Set, Crankshaft Thrust
[10.1996 -] 15BFT..BXD20 O/S 0.125 |
11012-56020 |
— | ||
| replacement | |||||
|
11011
|
11011
11012-58020 Washer Set, Crankshaft Thrust[10.1996 -] 15BFT..BXD20 O/S 0.125 |
11012-58020 |
US $28.83 |
||
|
11011
|
11011
11013-56020
Washer Set, Crankshaft Thrust
[10.1996 -] 15BFT..BXD20 O/S 0.250 |
11013-56020 |
— | ||
| replacement | |||||
|
11011
|
11011
11013-58020 Washer Set, Crankshaft Thrust[10.1996 -] 15BFT..BXD20 O/S 0.250 |
11013-58020 |
US $28.83 |
||
|
11702
|
11702
11704-56030
Bearing Set, Crankshaft
[10.1996 - 12.1997] 15BFT..BXD20 U/S 0.25 |
11704-56030 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-56032
Bearing Set, Crankshaft
[10.1996 - 12.1997] 15BFT..BXD20 U/S 0.25 |
11704-56032 |
— | ||
|
11702
|
11702
11704-56031 Bearing Set, Crankshaft[12.1997 - 05.1999] 15BFT..BXD20 U/S 0.25 |
11704-56031 |
US $396.03 |
||
| replacement | |||||
|
11702
|
11702
11704-56032
Bearing Set, Crankshaft
[12.1997 - 05.1999] 15BFT..BXD20 U/S 0.25 |
11704-56032 |
— | ||
|
11702
|
11702
11704-56032
Bearing Set, Crankshaft
[05.1999 -] 15BFT..BXD20 U/S 0.25 |
11704-56032 |
— | ||
|
11702
|
11702
11705-56030
Bearing Set, Crankshaft
[10.1996 - 12.1997] 15BFT..BXD20 U/S 0.50 |
11705-56030 |
— | ||
| replacement | |||||
|
11702
|
11702
11705-56032 Bearing Set, Crankshaft[10.1996 - 12.1997] 15BFT..BXD20 U/S 0.50 |
11705-56032 |
US $396.03 |
||
|
11702
|
11702
11705-56031 Bearing Set, Crankshaft[12.1997 - 05.1999] 15BFT..BXD20 U/S 0.50 |
11705-56031 |
US $396.03 |
||
| replacement | |||||
|
11702
|
11702
11705-56032 Bearing Set, Crankshaft[12.1997 - 05.1999] 15BFT..BXD20 U/S 0.50 |
11705-56032 |
US $396.03 |
||
|
11702
|
11702
11705-56032 Bearing Set, Crankshaft[05.1999 -] 15BFT..BXD20 U/S 0.50 |
11705-56032 |
US $396.03 |
||
|
11702
|
11702
11707-56030 Bearing Set, Crankshaft[10.1996 - 12.1997] 15BFT..BXD20 U/S 1.00 |
11707-56030 |
US $396.03 |
||
| replacement | |||||
|
11702
|
11702
11707-56032
Bearing Set, Crankshaft
[10.1996 - 12.1997] 15BFT..BXD20 U/S 1.00 |
11707-56032 |
— | ||
|
11702
|
11702
11707-56031 Bearing Set, Crankshaft[12.1997 - 05.1999] 15BFT..BXD20 U/S 1.00 |
11707-56031 |
US $396.03 |
||
| replacement | |||||
|
11702
|
11702
11707-56032
Bearing Set, Crankshaft
[12.1997 - 05.1999] 15BFT..BXD20 U/S 1.00 |
11707-56032 |
— | ||
|
11702
|
11702
11707-56032
Bearing Set, Crankshaft
[05.1999 -] 15BFT..BXD20 U/S 1.00 |
11707-56032 |
— | ||
|
11711
|
11711
11701-56020-01 Bearing, Crankshaft[10.1996 - 12.1997] 15BFT..BXD20 MARK1 |
11701-56020-01 |
US $65.37 |
||
| replacement | |||||
|
11711
|
11711
11701-58010-01 Bearing, Crankshaft[10.1996 - 12.1997] 15BFT..BXD20 MARK1 |
11701-58010-01 |
from US $23.71 |
||
|
11711
|
11711
11701-56020-02 Bearing, Crankshaft[10.1996 - 12.1997] 15BFT..BXD20 MARK2 |
11701-56020-02 |
US $65.37 |
||
| replacement | |||||
|
11711
|
11711
11701-58010-02 Bearing, Crankshaft[10.1996 - 12.1997] 15BFT..BXD20 MARK2 |
11701-58010-02 |
from US $20.54 |
||
|
11711
|
11711
11701-56021-01
Bearing, Crankshaft
[12.1997 - 05.1999] 15BFT..BXD20 MARK 1 |
11701-56021-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-58010-01 Bearing, Crankshaft[12.1997 - 05.1999] 15BFT..BXD20 MARK 1 |
11701-58010-01 |
from US $23.71 |
||
|
11711
|
11711
11701-56021-02 Bearing, Crankshaft[12.1997 - 05.1999] 15BFT..BXD20 MARK 2 |
11701-56021-02 |
US $65.67 |
||
| replacement | |||||
|
11711
|
11711
11701-58010-02 Bearing, Crankshaft[12.1997 - 05.1999] 15BFT..BXD20 MARK 2 |
11701-58010-02 |
from US $20.54 |
||
|
11711
|
11711
11701-56022-01 Bearing, Crankshaft[05.1999 - 10.2001] 15BFT..BXD20 MARK 1 |
11701-56022-01 |
US $45.57 |
||
| replacement | |||||
|
11711
|
11711
11701-58010-01 Bearing, Crankshaft[05.1999 - 10.2001] 15BFT..BXD20 MARK 1 |
11701-58010-01 |
from US $23.71 |
||
|
11711
|
11711
11701-56022-02 Bearing, Crankshaft[05.1999 - 10.2001] 15BFT..BXD20 MARK 2 |
11701-56022-02 |
US $45.57 |
||
| replacement | |||||
|
11711
|
11711
11701-58010-02 Bearing, Crankshaft[05.1999 - 10.2001] 15BFT..BXD20 MARK 2 |
11701-58010-02 |
from US $20.54 |
||
|
13011
|
13011
13011-58090 Ring Set, Piston[10.1996 -] 15BFT..BXD20 STD |
13011-58090 |
from US $209.30 |
||
|
13011
|
13011
13013-58090 Ring Set, Piston[10.1996 -] 15BFT..BXD20 O/S 0.50 |
13013-58090 |
US $302.44 |
||
|
13011
|
13011
13014-58090 Ring Set, Piston[10.1996 -] 15BFT..BXD20 O/S 0.75 |
13014-58090 |
US $269.36 |
||
|
13011
|
13011
13015-58090 Ring Set, Piston[10.1996 -] 15BFT..BXD20 O/S 1.00 |
13015-58090 |
US $269.36 |
||
|
13041
|
13041
13041-58020-01 Bearing, Connecting Rod[10.1996 - 12.1997] 15BFT..BXD20 MARK 1 |
13041-58020-01 |
US $37.13 |
||
| replacement | |||||
|
13041
|
13041
13041-58050-01 Bearing, Connecting Rod[10.1996 - 12.1997] 15BFT..BXD20 MARK 1 |
13041-58050-01 |
from US $17.31 |
||
|
13041
|
13041
13041-58020-02
Bearing, Connecting Rod
[10.1996 - 12.1997] 15BFT..BXD20 MARK 2 |
13041-58020-02 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-58050-02 Bearing, Connecting Rod[10.1996 - 12.1997] 15BFT..BXD20 MARK 2 |
13041-58050-02 |
from US $15.05 |
||
|
13041
|
13041
13041-58031-01
Bearing, Connecting Rod
[12.1997 - 12.1998] 15BFT..BXD20 MARK 1 |
13041-58031-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-58050-01 Bearing, Connecting Rod[12.1997 - 12.1998] 15BFT..BXD20 MARK 1 |
13041-58050-01 |
from US $17.31 |
||
|
13041
|
13041
13041-58031-02 Bearing, Connecting Rod[12.1997 - 12.1998] 15BFT..BXD20 MARK 2 |
13041-58031-02 |
US $37.13 |
||
| replacement | |||||
|
13041
|
13041
13041-58050-02 Bearing, Connecting Rod[12.1997 - 12.1998] 15BFT..BXD20 MARK 2 |
13041-58050-02 |
from US $15.05 |
||
|
13041
|
13041
13041-58032-01
Bearing, Connecting Rod
[12.1998 -] 15BFT..BXD20 MARK 1 |
13041-58032-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-58050-01 Bearing, Connecting Rod[12.1998 -] 15BFT..BXD20 MARK 1 |
13041-58050-01 |
from US $17.31 |
||
|
13041
|
13041
13041-58032-02 Bearing, Connecting Rod[12.1998 -] 15BFT..BXD20 MARK 2 |
13041-58032-02 |
US $37.13 |
||
| replacement | |||||
|
13041
|
13041
13041-58050-02 Bearing, Connecting Rod[12.1998 -] 15BFT..BXD20 MARK 2 |
13041-58050-02 |
from US $15.05 |
||
|
13101
|
13101
13101-58100-01 Piston Sub-Assy, W/pin[10.1996 - 03.1997] 15BFT..BXD20 STD,MARK 1 |
13101-58100-01 |
US $321.78 |
||
| replacement | |||||
|
13101
|
13101
13101-58101-01 Piston Sub-Assy, W/pin[10.1996 - 03.1997] 15BFT..BXD20 STD,MARK 1 |
13101-58101-01 |
US $203.84 |
||
|
13101
|
13101
13101-58100-02 Piston Sub-Assy, W/pin[10.1996 - 03.1997] 15BFT..BXD20 STD,MARK 2 |
13101-58100-02 |
US $321.78 |
||
| replacement | |||||
|
13101
|
13101
13101-58101-02 Piston Sub-Assy, W/pin[10.1996 - 03.1997] 15BFT..BXD20 STD,MARK 2 |
13101-58101-02 |
US $203.84 |
||
|
13101
|
13101
13101-58100-03 Piston Sub-Assy, W/pin[10.1996 - 03.1997] 15BFT..BXD20 STD,MARK 3 |
13101-58100-03 |
US $321.78 |
||
| replacement | |||||
|
13101
|
13101
13101-58101-03 Piston Sub-Assy, W/pin[10.1996 - 03.1997] 15BFT..BXD20 STD,MARK 3 |
13101-58101-03 |
US $203.84 |
||
|
13101
|
13101
13101-58101-01 Piston Sub-Assy, W/pin[03.1997 -] 15BFT..BXD20 STD,MARK1 |
13101-58101-01 |
US $203.84 |
||
|
13101
|
13101
13101-58101-02 Piston Sub-Assy, W/pin[03.1997 -] 15BFT..BXD20 STD,MARK2 |
13101-58101-02 |
US $203.84 |
||
|
13101
|
13101
13101-58101-03 Piston Sub-Assy, W/pin[03.1997 -] 15BFT..BXD20 STD,MARK3 |
13101-58101-03 |
US $203.84 |
||
|
13101
|
13101
13103-58100 Piston Sub-Assy, W/pin[10.1996 - 03.1997] 15BFT..BXD20 O/S 0.50 |
13103-58100 |
US $385.84 |
||
| replacement | |||||
|
13101
|
13101
13103-58101 Piston Sub-Assy, W/pin[10.1996 - 03.1997] 15BFT..BXD20 O/S 0.50 |
13103-58101 |
US $388.75 |
||
|
13101
|
13101
13103-58101 Piston Sub-Assy, W/pin[03.1997 -] 15BFT..BXD20 O/S 0.50 |
13103-58101 |
US $388.75 |
||
|
13101
|
13101
13104-58100 Piston Sub-Assy, W/pin[10.1996 - 03.1997] 15BFT..BXD20 O/S 0.75 |
13104-58100 |
US $385.84 |
||
| replacement | |||||
|
13101
|
13101
13104-58101 Piston Sub-Assy, W/pin[10.1996 - 03.1997] 15BFT..BXD20 O/S 0.75 |
13104-58101 |
US $388.75 |
||
|
13101
|
13101
13104-58101 Piston Sub-Assy, W/pin[03.1997 -] 15BFT..BXD20 O/S 0.75 |
13104-58101 |
US $388.75 |
||
|
13101
|
13101
13105-58100 Piston Sub-Assy, W/pin[10.1996 - 03.1997] 15BFT..BXD20 O/S 1.00 |
13105-58100 |
US $385.84 |
||
| replacement | |||||
|
13101
|
13101
13105-58101 Piston Sub-Assy, W/pin[10.1996 - 03.1997] 15BFT..BXD20 O/S 1.00 |
13105-58101 |
US $388.75 |
||
|
13101
|
13101
13105-58101 Piston Sub-Assy, W/pin[03.1997 -] 15BFT..BXD20 O/S 1.00 |
13105-58101 |
US $388.75 |
||
|
13101A
|
13101A
90521-37007 Ring, Hole Snap(For Piston Pin)[10.1996 -] 15BFT..BXD20 |
90521-37007 |
US $1.31 |
||
|
13201
|
13201
13201-59185 Rod Sub-Assy, Connecting[10.1996 -] 15BFT..BXD20 |
13201-59185 |
US $311.58 |
||
| replacement | |||||
|
13201
|
13201
13201-49056 Rod Sub-Assy, Connecting[10.1996 -] 15BFT..BXD20 |
13201-49056 |
US $211.41 |
||
|
13201A
|
13201A
90999-73134 Bush(For Connecting Rod Small End)[10.1996 -] 15BFT..BXD20 |
90999-73134 |
from US $11.80 |
||
|
13202
|
13202
13204-58020 Bearing Set, Connecting Rod[10.1996 - 12.1997] 15BFT..BXD20 U/S 0.25 |
13204-58020 |
US $180.54 |
||
| replacement | |||||
|
13202
|
13202
13204-58050 Bearing Set, Connecting Rod (0.25)[10.1996 - 12.1997] 15BFT..BXD20 U/S 0.25 |
13204-58050 |
from US $64.87 |
||
|
13202
|
13202
13204-58031 Bearing Set, Connecting Rod[12.1997 - 12.1998] 15BFT..BXD20 U/S 0.25 |
13204-58031 |
US $180.54 |
||
| replacement | |||||
|
13202
|
13202
13204-58050 Bearing Set, Connecting Rod (0.25)[12.1997 - 12.1998] 15BFT..BXD20 U/S 0.25 |
13204-58050 |
from US $64.87 |
||
|
13202
|
13202
13204-58032
Bearing Set, Connecting Rod
[12.1998 -] 15BFT..BXD20 U/S 0.25 |
13204-58032 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-58050 Bearing Set, Connecting Rod (0.25)[12.1998 -] 15BFT..BXD20 U/S 0.25 |
13204-58050 |
from US $64.87 |
||
|
13202
|
13202
13205-58020 Bearing Set, Connecting Rod[10.1996 - 12.1997] 15BFT..BXD20 U/S 0.50 |
13205-58020 |
US $180.54 |
||
| replacement | |||||
|
13202
|
13202
13205-58050 Bearing Set, Connecting Rod (0.50)[10.1996 - 12.1997] 15BFT..BXD20 U/S 0.50 |
13205-58050 |
from US $65.95 |
||
|
13202
|
13202
13205-58031 Bearing Set, Connecting Rod[12.1997 - 12.1998] 15BFT..BXD20 U/S 0.50 |
13205-58031 |
US $180.54 |
||
| replacement | |||||
|
13202
|
13202
13205-58050 Bearing Set, Connecting Rod (0.50)[12.1997 - 12.1998] 15BFT..BXD20 U/S 0.50 |
13205-58050 |
from US $65.95 |
||
|
13202
|
13202
13205-58032 Bearing Set, Connecting Rod[12.1998 -] 15BFT..BXD20 U/S 0.50 |
13205-58032 |
US $123.76 |
||
| replacement | |||||
|
13202
|
13202
13205-58050 Bearing Set, Connecting Rod (0.50)[12.1998 -] 15BFT..BXD20 U/S 0.50 |
13205-58050 |
from US $65.95 |
||
|
13202
|
13202
13207-58020
Bearing Set, Connecting Rod
[10.1996 - 12.1997] 15BFT..BXD20 U/S 1.00 |
13207-58020 |
— | ||
| replacement | |||||
|
13202
|
13202
13207-58050 Bearing Set, Connecting Rod (1.00)[10.1996 - 12.1997] 15BFT..BXD20 U/S 1.00 |
13207-58050 |
US $112.11 |
||
|
13202
|
13202
13207-58031 Bearing Set, Connecting Rod[12.1997 - 12.1998] 15BFT..BXD20 U/S 1.00 |
13207-58031 |
US $180.54 |
||
| replacement | |||||
|
13202
|
13202
13207-58050 Bearing Set, Connecting Rod (1.00)[12.1997 - 12.1998] 15BFT..BXD20 U/S 1.00 |
13207-58050 |
US $112.11 |
||
|
13202
|
13202
13207-58032 Bearing Set, Connecting Rod[12.1998 -] 15BFT..BXD20 U/S 1.00 |
13207-58032 |
from US $18.30 |
||
| replacement | |||||
|
13202
|
13202
13207-58050 Bearing Set, Connecting Rod (1.00)[12.1998 -] 15BFT..BXD20 U/S 1.00 |
13207-58050 |
US $112.11 |
||
|
13265
|
13265
13265-58020
Bolt, Connecting Rod
[10.1996 -] 15BFT..BXD20 |
13265-58020 |
— | ||
|
13265A
|
13265A
13266-58010 Nut, Hexagon(For Connecting Rod Bolt)[10.1996 -] 15BFT..BXD20 |
13266-58010 |
US $7.27 |
||
|
13405
|
13405
13405-58040
Flywheel Sub-Assy
[10.1996 -] 15BFT..BXD20 |
13405-58040 |
— | ||
|
13405A
|
13405A
90250-05121 Pin, Straight, No.3(For Camshaft Knock)[10.1996 -] 15BFT..BXD20 L=15,OD=5 |
90250-05121 |
from US $1.16 |
||
|
13411
|
13411
13401-58050 Crankshaft[10.1996 - 03.1999] 15BFT..BXD20 |
13401-58050 |
US $2,446.08 |
||
| replacements | |||||
|
13411
|
13411
13041-58050-01 Bearing, Connecting Rod[10.1996 - 03.1999] 15BFT..BXD20 |
13041-58050-01 |
from US $17.31 |
||
|
13411
|
13411
13041-58050-02 Bearing, Connecting Rod[10.1996 - 03.1999] 15BFT..BXD20 |
13041-58050-02 |
from US $15.05 |
||
|
13411
|
13411
13401-58051 Crankshaft[10.1996 - 03.1999] 15BFT..BXD20 |
13401-58051 |
US $1,661.59 |
||
|
13411
|
13411
13401-58051 Crankshaft[03.1999 -] 15BFT..BXD20 |
13401-58051 |
US $1,661.59 |
||
|
13434
|
13434
13519-56010 Spline, Oil Pump Drive[10.1996 - 03.1999] 15BFT..BXD20 |
13519-56010 |
from US $48.13 |
||
|
13434
|
13434
13519-56011
Spline, Oil Pump Drive
[03.1999 -] 15BFT..BXD20 |
13519-56011 |
— | ||
|
13471
|
13471
13470-58050 Pulley, Crankshaft[10.1996 - 03.1999] 15BFT..BXD20 |
13470-58050 |
US $436.80 |
||
| replacement | |||||
|
13471
|
13471
13470-58051 Pulley, Crankshaft[10.1996 - 03.1999] 15BFT..BXD20 |
13470-58051 |
US $436.80 |
||
|
13471
|
13471
13470-58051 Pulley, Crankshaft[03.1999 -] 15BFT..BXD20 |
13470-58051 |
US $436.80 |
||
|
13471A
|
13471A
95161-30416 Pin, Straight(For Crankshaft)[10.1996 -] 15BFT..BXD20 |
95161-30416 |
from US $1.39 |
||
|
13471C
|
13471C
90901-19032 Bolt(For Crankshaft Pulley Set)[10.1996 -] 15BFT..BXD20 |
90901-19032 |
US $16.77 |
||
|
13503
|
13503
13504-58010 Shaft Sub-Assy, Idle Gear[10.1996 -] 15BFT..BXD20 |
13504-58010 |
US $139.78 |
||
|
13521
|
13521
13521-56030 Gear Or Sprocket, Crankshaft Timing[10.1996 -] 15BFT..BXD20 |
13521-56030 |
US $118.08 |
||
|
13521A
|
13521A
95161-30519 Key(For Crankshaft Timing Gear)[10.1996 -] 15BFT..BXD20 |
95161-30519 |
US $3.32 |
||
|
13525
|
13525
13508-56010 Gear, Idle, No.1[10.1996 -] 15BFT..BXD20 |
13508-56010 |
from US $118.81 |
||
|
13572
|
13572
13572-56020 Plate, Idle Gear Thrust[10.1996 -] 15BFT..BXD20 |
13572-56020 |
US $8.26 |
||
|
13577A
|
13577A
90105-10194 Bolt, Hexagon(For Idle Gear Bolt Lock)[10.1996 -] 15BFT..BXD20 |
90105-10194 |
US $4.72 |
||
|
13707A
|
13707A
90401-10026 Union(For Oil Pipe, No.1)[10.1996 -] 15BFT..BXD20 |
90401-10026 |
US $1.40 |
||
