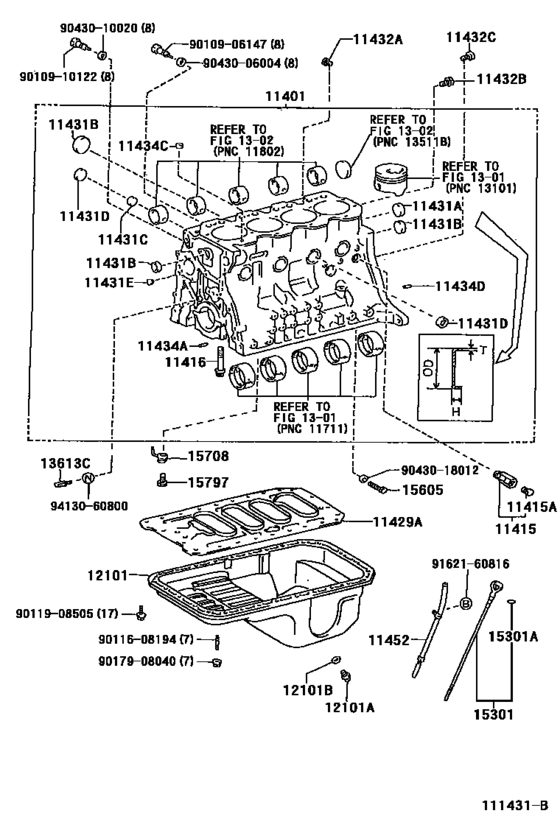

Cylinder Block ([10.1996 - ] (9610- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- SRF
- ENGINE
- 15BFT
- From
- 10.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-59595
Block Sub-Assy, Cylinder
[10.1996 -] 15BFT..BXD20 |
11401-59595 |
— | ||
|
11415
|
11415
90910-09078 Cock Sub-Assy, Water Drain(For Cylinder Block)[10.1996 -] 15BFT..BXD20 |
90910-09078 |
US $16.31 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[04.1999 -] 15BFT..BXD20 |
90910-09087 |
from US $2.95 |
||
|
11415A
|
11415A
96432-23814
Plug, Water Drain Cock(For Cylinder Block)
[10.1996 - 04.1999] 15BFT..BXD20 |
96432-23814 |
— | ||
|
11416
|
11416
90910-02082 Bolt(For Crankshaft Bearing Cap Set)[10.1996 -] 15BFT..BXD20 *16-2.0PX93.5-32 |
90910-02082 |
US $4.95 |
||
|
11416
|
11416
90910-02083 Bolt(For Crankshaft Bearing Cap Set)[10.1996 -] 15BFT..BXD20 *16-2.0PX129.5-32 |
90910-02083 |
US $5.82 |
||
|
11429A
|
11429A
11429-56011 Plate, Cylinder Block Stiffening[10.1996 -] 15BFT..BXD20 |
11429-56011 |
US $97.84 |
||
|
11431A
|
11431A
96411-14500 Plug, Tight, No.1(For Cylinder Block)[10.1996 - 05.1999] 15BFT..BXD20 |
96411-14500 |
US $4.22 |
||
|
11431A
|
11431A
96411-64500 Plug, Tight[05.1999 -] 15BFT..BXD20 |
96411-64500 |
from US $4.02 |
||
|
11431B
|
11431B
90331-50003 Plug, Tight, No.2(For Cylinder Block)[10.1996 -] 15BFT..BXD20 OD=50,T=1.2,H=9 |
90331-50003 |
US $2.77 |
||
|
11431B
|
11431B
96411-45000 Plug, Tight, No.1(For Cam Housing)[10.1996 - 05.1999] 15BFT..BXD20 T=1.6,H=12 |
96411-45000 |
from US $3.74 |
||
|
11431B
|
11431B
96411-65000 Plug, Tight, No.2(For Cylinder Block)[10.1996 - 05.1999] 15BFT..BXD20 OD=50,T=1.2,H=12 |
96411-65000 |
from US $3.14 |
||
|
11431C
|
11431C
96411-63000 Plug, Tight[10.1996 -] 15BFT..BXD20 |
96411-63000 |
from US $3.76 |
||
|
11431D
|
11431D
96411-63500 Plug, Tight[10.1996 -] 15BFT..BXD20 |
96411-63500 |
from US $3.58 |
||
|
11431E
|
11431E
90331-14006 Plug, Tight, No.1[10.1996 -] 15BFT..BXD20 |
90331-14006 |
US $0.35 |
||
|
11432A
|
11432A
90345-51007 Plug, W/head Taper Screw, No.1[10.1996 -] 15BFT..BXD20 |
90345-51007 |
US $0.70 |
||
|
11432B
|
11432B
90345-53004 Plug, W/head Taper Screw, No.2[10.1996 -] 15BFT..BXD20 |
90345-53004 |
US $2.48 |
||
|
11432C
|
11432C
90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block)[10.1996 -] 15BFT..BXD20 |
90345-52001 |
from US $4.12 |
||
|
11434A
|
11434A
90250-08120 Pin, Straight, No.1[10.1996 -] 15BFT..BXD20 L=18,OD=8 |
90250-08120 |
from US $0.99 |
||
|
11434C
|
11434C
90253-15008 Pin, Straight (For Cylinder Head Set)[10.1996 -] 15BFT..BXD20 L=9.0,OD=14.5 |
90253-15008 |
US $0.79 |
||
|
11434D
|
11434D
90250-08120 Pin, Straight, No.1[10.1996 -] 15BFT..BXD20 L=18,OD=8 |
90250-08120 |
from US $0.99 |
||
|
11452
|
11452
11409-58010 Guide, Oil Level Gage[10.1996 -] 15BFT..BXD20 |
11409-58010 |
US $33.92 |
||
|
12101
|
12101
12101-58150
Pan Sub-Assy, Oil
[10.1996 - 06.1999] 15BFT..BXD20 |
12101-58150 |
— | ||
|
12101A
|
12101A
90341-12026
Plug, Drain
[10.1996 - 06.1999] 15BFT..BXD20 |
90341-12026 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[10.1996 - 06.1999] 15BFT..BXD20 |
90341-12012 |
from US $2.87 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[10.1996 - 06.1999] 15BFT..BXD20 |
90430-12031 |
from US $0.80 |
||
|
13613C
|
13613C
90915-01015 Nozzle, Oil[10.1996 -] 15BFT..BXD20 |
90915-01015 |
US $7.34 |
||
|
15301
|
15301
15301-58060 Gage Sub-Assy, Oil Level[10.1996 -] 15BFT..BXD20 |
15301-58060 |
US $10.83 |
||
|
15301A
|
15301A
96741-19005 O-Ring (For Oil Level Gage)[10.1996 -] 15BFT..BXD20 |
96741-19005 |
from US $2.36 |
||
|
15605
|
15605
15605-56010 Valve Sub-Assy, Oil Check[10.1996 -] 15BFT..BXD20 |
15605-56010 |
US $32.32 |
||
|
15708
|
15708
15708-58050 Nozzle Sub-Assy, Oil, No.1[10.1996 -] 15BFT..BXD20 |
15708-58050 |
US $13.98 |
||
|
15797
|
15797
15797-58020 Bolt, Oil Nozzle Union[10.1996 -] 15BFT..BXD20 |
15797-58020 |
US $3.49 |
||
|
9010906147
|
9010906147
90109-06147 New Genuine Part |
90109-06147 |
US $0.61 |
||
|
9010910122
|
9010910122
90109-10122 SPL BOLTCYL BLOCK |
90109-10122 |
US $2.62 |
||
|
9011608194
|
9011608194
90116-08194 Bolt |
90116-08194 |
US $1.97 |
||
|
9011908505
|
9011908505
90119-08505 Bolt, Washer |
90119-08505 |
US $1.79 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9043006004
|
9043006004
90430-06004 New Genuine Part |
90430-06004 |
US $1.25 |
||
|
9043010020
|
9043010020
90430-10020 GASKETROUND TYPE |
90430-10020 |
US $2.33 |
||
|
9043018012
|
9043018012
90430-18012 Gasket(For Oil Pump Outlet Pipe) |
90430-18012 |
US $3.05 |
||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.82 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.67 |
||
