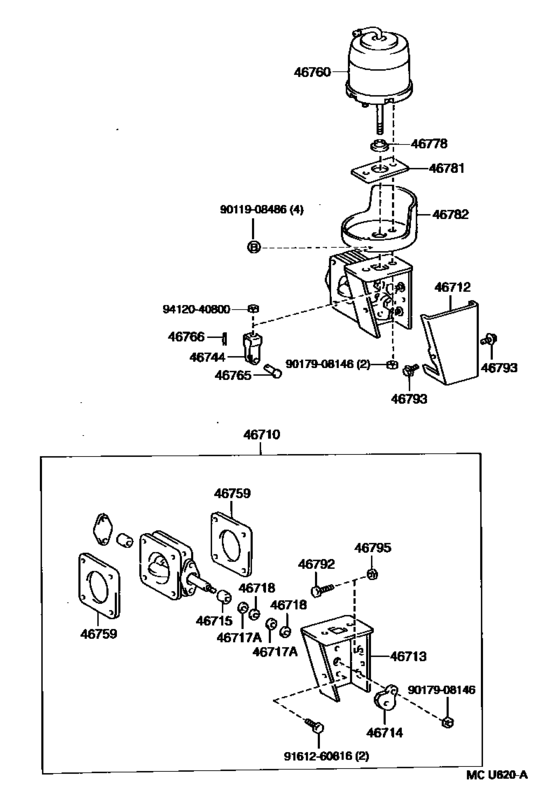

Exhaust Brake Assembly & Vacuum Cylinder ([10.1996 - ] (9610- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- SRF
- ENGINE
- 15BFT
- From
- 10.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46710
|
46710
46710-36170 Valve Assy, Exhaust Brake[10.1996 -] BXD20 |
46710-36170 |
US $384.38 |
||
| replacements | |||||
|
46710
|
46710
46710-36171 Valve Assy, Exhaust Brake[10.1996 -] BXD20 |
46710-36171 |
US $363.26 |
||
|
46710
|
46710
46712-36270 Cover, Exhaust Brake Bracket[10.1996 -] BXD20 |
46712-36270 |
US $9.36 |
||
|
46712
|
46712
46712-36060 Cover, Exhaust Valve Link[10.1996 -] BXD20 |
46712-36060 |
US $9.90 |
||
|
46713
|
46713
46713-36060 Bracket, Exhaust Valve[10.1996 -] BXD20 |
46713-36060 |
US $55.91 |
||
|
46714
|
46714
46714-36010 Lever, Exhaust Valve[10.1996 -] BXD20 |
46714-36010 |
US $5.82 |
||
|
46715
|
46715
46715-36010 Bush, Exhaust Valve, No.1[10.1996 -] BXD20 L=16.0 |
46715-36010 |
US $11.18 |
||
|
46717A
|
46717A
46717-36010 Ring, Exhaust Valve Seal, No.1[10.1996 -] BXD20 |
46717-36010 |
US $2.91 |
||
|
46718
|
46718
46718-36010 Ring, Exhaust Valve Seal, No.2[10.1996 -] BXD20 |
46718-36010 |
US $2.80 |
||
|
46744
|
46744
46744-25010 Clevis, Exhaust Brake Rod Clevis[10.1996 -] BXD20 |
46744-25010 |
US $10.18 |
||
|
46759
|
46759
46759-36040 Gasket, Exhaust Retarder[10.1996 -] BXD20 |
46759-36040 |
from US $7.45 |
||
|
46760
|
46760
46760-65010 Cylinder Assy, Exhaust Retarder Vacuum[10.1996 -] BXD20 |
46760-65010 |
US $123.76 |
||
|
46765
|
46765
46765-36010 Pin, Vacuum Cylinder Clevis[10.1996 -] BXD20 |
46765-36010 |
US $3.58 |
||
|
46766
|
46766
46766-36010 Pin, Vacuum Cylinder Clevis Snap[10.1996 -] BXD20 |
46766-36010 |
US $2.75 |
||
|
46778
|
46778
46778-36060 Bearing, Vacuum Cylinder[10.1996 -] BXD20 |
46778-36060 |
from US $2.75 |
||
|
46781
|
46781
46781-36060
Insulator, Exhaust Brake Chamber, No.1
[10.1996 -] BXD20 |
46781-36060 |
— | ||
| replacement | |||||
|
46781
|
46781
46781-28010 Insulator, Exhaust Brake Chamber, No.1[10.1996 -] BXD20 |
46781-28010 |
US $4.82 |
||
|
46782
|
46782
46782-65010 Insulator, Exhaust Brake Chamber, No.2[10.1996 -] BXD20 |
46782-65010 |
US $17.62 |
||
|
46792
|
46792
46792-36010 Bolt, Exhaust Valve Stopper[10.1996 -] BXD20 |
46792-36010 |
US $1.46 |
||
|
46793
|
46793
46793-36010 Bolt, Exhaust Valve Link Cover[10.1996 -] BXD20 |
46793-36010 |
US $1.24 |
||
|
46795
|
46795
46795-36010 Nut, Exhaust Valve Bracket[10.1996 -] BXD20 |
46795-36010 |
US $1.46 |
||
|
9011908486
|
9011908486
90119-08486 BOLT WWASHER |
90119-08486 |
from US $1.25 |
||
|
9017908146
|
9017908146
90179-08146
Nut (For Transmission Control Cable)
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut (For Front Wiper Arm Setting) |
90179-08204 |
from US $0.99 |
||
|
9161260816
|
9161260816
91612-60816 Bolt, Exhaust Valve Cover |
91612-60816 |
US $1.60 |
||
| replacement | |||||
|
9161260816
|
9161260816
91611-B0816 Bolt |
91611-B0816 |
from US $0.95 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.10 |
||
