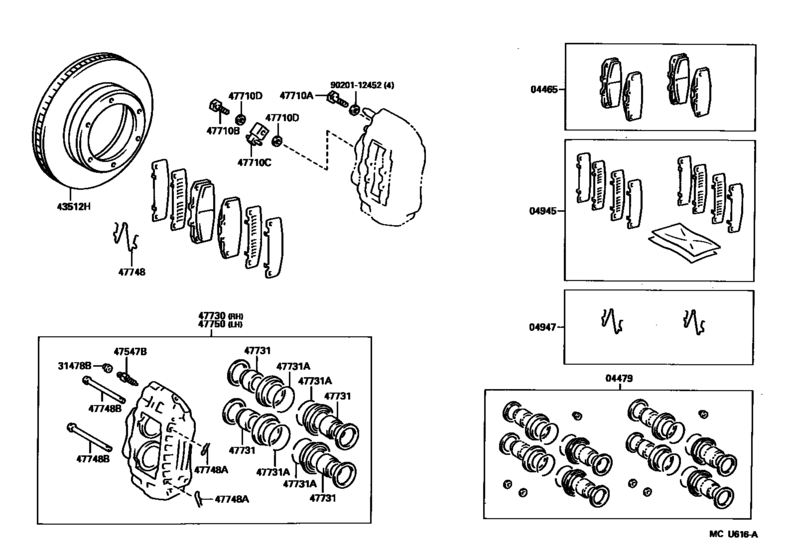

Front Disc Brake Caliper & Dust Cover ([10.1996 - ] (9610- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- SRF
- ENGINE
- 15BFT
- From
- 10.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04465
|
04465
04465-65010 Pad Kit, Disc Brake, Front[10.1996 -] BXD20 |
04465-65010 |
US $164.80 |
||
|
04479
|
04479
04479-60020 Cylinder Kit, Disc Brake, Front[10.1996 -] BXD20 |
04479-60020 |
from US $63.84 |
||
|
04945
|
04945
04945-35040 Shim Kit, Anti Squeal, Front[10.1996 -] BXD20 |
04945-35040 |
from US $23.69 |
||
|
04947
|
04947
04947-60040 Fitting Kit, Disc Brake, Front[10.1996 -] BXD20 |
04947-60040 |
US $5.59 |
||
|
31478B
|
31478B
31478-30010 Bleeder Plug Cap[10.1996 -] BXD20 |
31478-30010 |
from US $1.48 |
||
|
43512H
|
43512H
43512-65010 Disc, Front[10.1996 -] BXD20 |
43512-65010 |
US $129.36 |
||
|
47547B
|
47547B
47547-60020 Plug, Bleeder(For Release Cylinder)[10.1996 -] BXD20 |
47547-60020 |
US $4.12 |
||
|
47710A
|
47710A
90101-12144 Bolt, Hexagon(For Front Disc Brake Caliper)[10.1996 -] BXD20 *12-1.25PX38-23 |
90101-12144 |
from US $1.73 |
||
|
47710B
|
47710B
90401-10047 Bolt, Union(For Power Steering Gear)[10.1996 -] BXD20 |
90401-10047 |
US $3.23 |
||
|
47710C
|
47710C
90904-05001 Union(For Front Disc Brake Caliper)[10.1996 -] BXD20 |
90904-05001 |
US $5.39 |
||
|
47710D
|
47710D
90430-10074 Gasket(For Oil Pressure Regulator)[10.1996 -] BXD20 |
90430-10074 |
from US $0.86 |
||
|
47730
|
47730
47730-65010 Cylinder Assy, Front Disc Brake, Rh[10.1996 -] BXD20 |
47730-65010 |
US $852.63 |
||
|
47731
|
47731
47731-60010 Piston, Front Disc Brake[10.1996 -] BXD20 |
47731-60010 |
from US $16.49 |
||
|
47731A
|
47731A
90522-50003 Ring, Set(For Front Disc Brake Piston)[10.1996 -] BXD20 |
90522-50003 |
US $2.33 |
||
|
47748
|
47748
47748-60020 Spring, Anti-Rattle, No.1(For Front Disc Brake)[10.1996 -] BXD20 |
47748-60020 |
from US $2.26 |
||
|
47748A
|
47748A
90468-12024 Clip(For Front Disc Brake Anti-Rattle)[10.1996 -] BXD20 |
90468-12024 |
US $2.51 |
||
|
47748B
|
47748B
90240-06014 Pin, W/hole(For Front Disc Brake Anti-Rattle)[10.1996 -] BXD20 |
90240-06014 |
from US $1.52 |
||
|
47750
|
47750
47750-65010 Cylinder Assy, Disc Brake, Lh[10.1996 -] BXD20 |
47750-65010 |
US $852.63 |
||
|
9020112452
|
9020112452
90201-12452 Nut(For Backing Plate To Steering Knuckle Setting) |
90201-12452 |
from US $1.08 |
