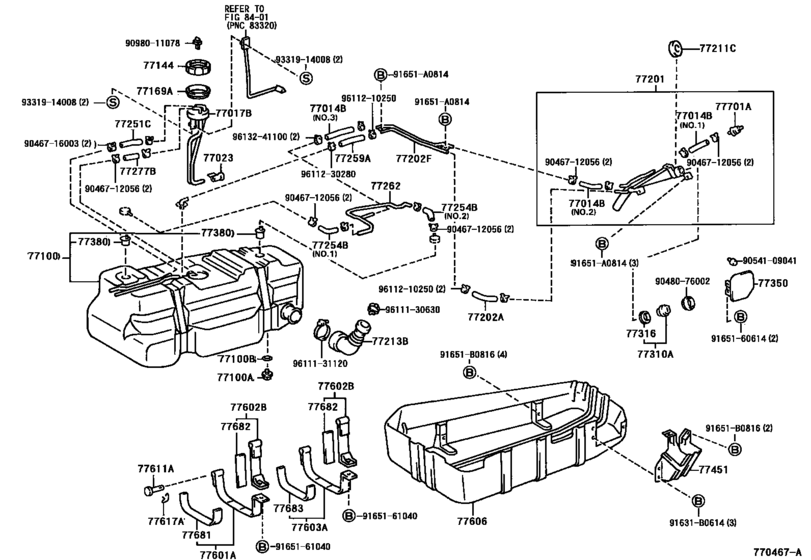

Fuel Tank & Tube ([10.1996 - ] (9610- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- SRF
- ENGINE
- 15BFT
- From
- 10.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77014B
|
77014B
95333-06010 Hose, Fuel[10.1996 -] BXD20 *H,L=100,NO.1 |
95333-06010 |
US $5.38 |
||
|
77014B
|
77014B
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[10.1996 -] BXD20 *H,L=140,NO.2,NO.3 |
95333-06020 |
— | ||
| replacement | |||||
|
77014B
|
77014B
95337-06020 Hose, Differential Pressure Control[10.1996 -] BXD20 *H,L=140,NO.2,NO.3 |
95337-06020 |
from US $10.21 |
||
|
77017B
|
77017B
77017-65010 Tube Sub-Assy, Fuel Tank Vent[10.1996 -] BXD20 |
77017-65010 |
US $161.62 |
||
|
77023
|
77023
77023-36010 Filter Sub-Assy, Fuel Suction Tube[10.1996 -] BXD20 |
77023-36010 |
from US $6.52 |
||
|
77100
|
77100
77001-65060 Tank Assy, Fuel[10.1996 -] BXD20 |
77001-65060 |
US $787.70 |
||
|
77100A
|
77100A
90105-12116 Plug(For Fuel Tank)[10.1996 -] BXD20 |
90105-12116 |
from US $1.27 |
||
|
77100B
|
77100B
90430-12245 Gasket(For Fuel Tank)[10.1996 -] BXD20 |
90430-12245 |
from US $0.86 |
||
|
77144
|
77144
77144-14040 Retainer, Fuel Pump Gauge[10.1996 -] BXD20 |
77144-14040 |
from US $14.88 |
||
|
77169A
|
77169A
77169-14030 Gasket, Fuel Pump Bracket[10.1996 -] BXD20 |
77169-14030 |
US $4.66 |
||
|
77201
|
77201
77201-65040 Pipe Sub-Assy, Fuel Tank Inlet[10.1996 -] BXD20 |
77201-65040 |
US $244.61 |
||
|
77202A
|
77202A
95311-15024 Hose, Fuel, No.1 (For Breather Tube)[10.1996 -] BXD20 L=240 |
95311-15024 |
US $5.82 |
||
|
77202F
|
77202F
77203-65020 Tube, Fuel, No.1 (For Breather Tube)[10.1996 -] BXD20 |
77203-65020 |
US $34.36 |
||
|
77211C
|
77211C
62561-65020 Pad, Fuel Inlet Pipe[09.1998 -] BXD20 |
62561-65020 |
US $7.72 |
||
|
77213B
|
77213B
77213-65030
Hose, Fuel Tank To Filler Pipe
[10.1996 -] BXD20 |
77213-65030 |
— | ||
|
77251C
|
77251C
95332-10020 Hose, Fuel, No.2 (For Main Tube, No.1)[10.1996 -] BXD20 *H,L=120 |
95332-10020 |
US $12.19 |
||
|
77254B
|
77254B
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[10.1996 -] BXD20 *H,L=120,NO.2,NO.1 |
95333-06020 |
— | ||
| replacement | |||||
|
77254B
|
77254B
95337-06020 Hose, Differential Pressure Control[10.1996 -] BXD20 *H,L=120,NO.2,NO.1 |
95337-06020 |
from US $10.21 |
||
|
77259A
|
77259A
77259-65010 Hose, Fuel(For Breather Tube)[10.1996 -] BXD20 L=135 |
77259-65010 |
US $14.56 |
||
|
77262
|
77262
77261-65010 Tube, Fuel Emission, No.2[10.1996 -] BXD20 |
77261-65010 |
US $14.71 |
||
|
77277B
|
77277B
95333-06010 Hose, Fuel[10.1996 -] BXD20 *H,L=80 |
95333-06010 |
US $5.38 |
||
|
77310A
|
77310A
77310-12150 Cap Assy, Fuel Tank[08.1998 -] BXD20 |
77310-12150 |
from US $32.98 |
||
|
77310A
|
77310A
77310-35110
Cap Assy, Fuel Tank
[10.1996 - 08.1998] BXD20 |
77310-35110 |
— | ||
| replacement | |||||
|
77310A
|
77310A
77310-12150 Cap Assy, Fuel Tank[10.1996 - 08.1998] BXD20 |
77310-12150 |
from US $32.98 |
||
|
77316
|
77316
77316-16010 Gasket (For Fuel Tank Cap)[10.1996 -] BXD20 |
77316-16010 |
from US $10.77 |
||
|
77350
|
77350
77350-65010 Lid Assy, Fuel Filler Opening[10.1996 -] BXD20 |
77350-65010 |
US $77.17 |
||
|
77380
|
77380
77380-26010 Valve Assy, Fuel Cut Off[10.1996 -] BXD20 |
77380-26010 |
from US $9.96 |
||
|
77451
|
77451
77451-65010
Protector, Fuel Inlet Hose
[10.1996 -] BXD20 |
77451-65010 |
— | ||
|
77601A
|
77601A
77601-65030 Band Sub-Assy, Fuel Tank, No.1[10.1996 -] BXD20 |
77601-65030 |
US $54.89 |
||
|
77602B
|
77602B
77602-65020 Band Sub-Assy, Fuel Tank, No.1 Lh[10.1996 -] BXD20 |
77602-65020 |
US $24.02 |
||
|
77603A
|
77603A
77603-65020 Band Sub-Assy, Fuel Tank, No.2[10.1996 -] BXD20 |
77603-65020 |
US $54.89 |
||
|
77606
|
77606
77606-65010
Protector Sub-Assy, Fuel Tank, No.1
[10.1996 -] BXD20 |
77606-65010 |
— | ||
|
77611A
|
77611A
90240-08118 Pin (For Fuel Tank Band)[10.1996 -] BXD20 |
90240-08118 |
US $4.13 |
||
|
77617A
|
77617A
77617-12010 Union, Auxiliary Fuel Band[10.1996 -] BXD20 |
77617-12010 |
US $1.97 |
||
|
77681
|
77681
77681-65010 Seat, Fuel Tank Band, Rh[10.1996 -] BXD20 |
77681-65010 |
US $13.83 |
||
|
77682
|
77682
77682-65010 Seat, Fuel Tank Band, Lh[10.1996 -] BXD20 |
77682-65010 |
US $7.43 |
||
|
77683
|
77683
77683-65010 Seat, Fuel Tank Band, No.3[10.1996 -] BXD20 |
77683-65010 |
US $12.81 |
||
|
77701A
|
77701A
90917-10082 Hose, Fuel, No.1 (For Breather Valve)[10.1996 -] BXD20 |
90917-10082 |
from US $17.31 |
||
|
91631B0614
|
91631B0614
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.84 |
||
|
91651A0814
|
91651A0814
91651-A0814 New Genuine Part |
91651-A0814 |
US $1.16 |
||
|
91651B0816
|
91651B0816
91651-B0816 New Genuine Part |
91651-B0816 |
US $2.87 |
||
|
9046712056
|
9046712056
90467-12056 Clamp Or Clip(For Throttle Body Hose) |
90467-12056 |
from US $0.72 |
||
| replacement | |||||
|
9046712056
|
9046712056
90466-T0048
New Genuine Part
|
90466-T0048 |
— | ||
|
9046716003
|
9046716003
90467-16003
Clip Or Clamp(For Ventilation Hose)
|
90467-16003 |
— | ||
| replacement | |||||
|
9046716003
|
9046716003
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $2.26 |
||
|
9048076002
|
9048076002
90480-76002 New Genuine Part |
90480-76002 |
US $13.83 |
||
|
9054109041
|
9054109041
90541-09041 Cushion, Hood Bumper |
90541-09041 |
US $1.51 |
||
|
9098011078
|
9098011078
90980-11078 HOUSING CONNECTOR |
90980-11078 |
US $5.38 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.16 |
||
|
9165161040
|
9165161040
91651-61040 Bolt (For Transfer Case) |
91651-61040 |
US $2.15 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.43 |
||
|
9611130630
|
9611130630
96111-30630 New Genuine Part |
96111-30630 |
US $3.20 |
||
|
9611131120
|
9611131120
96111-31120 Clamp(For Air Cleaner Hose, No.2) |
96111-31120 |
US $1.05 |
||
|
9611210250
|
9611210250
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose) |
96112-10250 |
from US $2.22 |
||
|
9611230280
|
9611230280
96112-30280 New Genuine Part |
96112-30280 |
US $1.60 |
||
|
9613241100
|
9613241100
96132-41100
Clamp Or Clip(For Radiator Reserve Tank Hose)
|
96132-41100 |
— | ||
| replacement | |||||
|
9613241100
|
9613241100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
