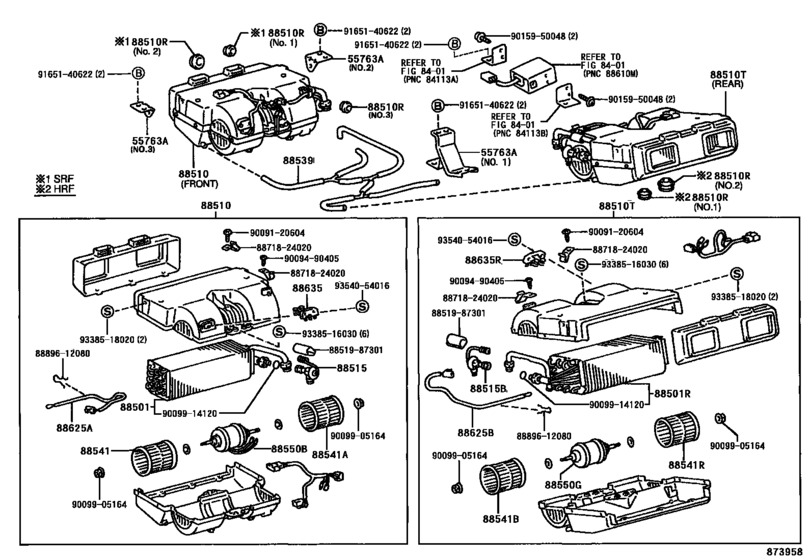

Heating & Air Conditioning - Cooler Unit ([10.1996 - ] (9610- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- SRF
- ENGINE
- 15BFT
- From
- 10.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55763A
|
55763A
55707-65110 Bracket, Cooler Mounting[10.1996 -] BXD20 NO.1 |
55707-65110 |
US $39.60 |
||
|
55763A
|
55763A
55763-65020 Bracket, Cooler Mounting[10.1996 -] BXD20 NO.2 |
55763-65020 |
US $11.50 |
||
|
55763A
|
55763A
55763-65030 Bracket, Cooler Mounting[10.1996 -] BXD20 NO.3 |
55763-65030 |
US $8.88 |
||
|
88501
|
88501
88501-65010
Evaporator Sub-Assy, Cooler, No.1
[10.1996 -] BXD20 |
88501-65010 |
— | ||
|
88501R
|
88501R
88501-65010
Evaporator Sub-Assy, Cooler, No.1
[10.1996 -] BXD20 |
88501-65010 |
— | ||
|
88510
|
88510
88350-65021
Unit Assy, Cooler
[10.1996 -] BXD20 |
88350-65021 |
— | ||
|
88510R
|
88510R
90480-26003 Grommet (For Cooler Unit)[10.1996 -] BXD20..SRF NO.1 |
90480-26003 |
US $2.80 |
||
|
88510R
|
88510R
90480-26022 Grommet (For Cooler Unit)[10.1996 -] BXD20..SRF NO.3 |
90480-26022 |
US $2.45 |
||
|
88510R
|
88510R
90480-36003 Grommet (For Cooler Unit)[10.1996 -] BXD20..SRF NO.2 |
90480-36003 |
US $2.97 |
||
|
88510T
|
88510T
88350-65031
Unit Assy, Cooling (Rear)
[10.1996 -] BXD20 |
88350-65031 |
— | ||
|
88515
|
88515
88515-28090 Valve, Cooler Expansion[10.1996 -] BXD20 |
88515-28090 |
US $58.09 |
||
|
88515B
|
88515B
88515-28090 Valve, Cooler Expansion[10.1996 -] BXD20 |
88515-28090 |
US $58.09 |
||
|
88539
|
88539
88539-65020
Hose, Cooler Unit Drain, No.1
[10.1996 -] BXD20 |
88539-65020 |
— | ||
|
88541
|
88541
88541-10010
Fan, Cooler Blower, No.1
[10.1996 -] BXD20 |
88541-10010 |
— | ||
|
88541A
|
88541A
88541-10020
Fan, Cooler Blower, No.2
[10.1996 -] BXD20 |
88541-10020 |
— | ||
|
88541B
|
88541B
88541-10020
Fan, Cooler Blower, No.2
[10.1996 -] BXD20 |
88541-10020 |
— | ||
|
88541R
|
88541R
88541-10010
Fan, Cooler Blower, No.1
[10.1996 -] BXD20 |
88541-10010 |
— | ||
|
88550B
|
88550B
88550-65010 Motor Assy, Blower[10.1996 -] BXD20 |
88550-65010 |
US $294.11 |
||
|
88550G
|
88550G
88550-55010 Motor Assy, Blower, Rear[10.1996 -] BXD20 |
88550-55010 |
US $275.18 |
||
|
88625A
|
88625A
88625-30480
Thermistor, Cooler, No.1
[10.1996 -] BXD20 |
88625-30480 |
— | ||
|
88625B
|
88625B
88625-30480
Thermistor, Cooler, No.1
[10.1996 -] BXD20 |
88625-30480 |
— | ||
|
88635
|
88635
88635-55010
Resistor, Cooler Unit Blower
[10.1996 -] BXD20 |
88635-55010 |
— | ||
|
88635R
|
88635R
88635-55010
Resistor, Cooler Unit Blower
[10.1996 -] BXD20 |
88635-55010 |
— | ||
|
8851987301
|
8851987301
88519-87301
Holder, Remote Bulb, Parts
|
88519-87301 |
— | ||
|
8871824020
|
8871824020
88718-24020
Clamp (For Cooler Wiring Harness), No.1
|
88718-24020 |
— | ||
|
8889612080
|
8889612080
88896-12080
Plate, Cooler Air Outlet Grille Ornament
|
88896-12080 |
— | ||
|
9009120604
|
9009120604
90091-20604
New Genuine Part
|
90091-20604 |
— | ||
|
9009490405
|
9009490405
90094-90405
New Genuine Part
|
90094-90405 |
— | ||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.84 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.79 |
||
|
9015950048
|
9015950048
90159-50048 New Genuine Part |
90159-50048 |
US $1.16 |
||
|
9165140622
|
9165140622
91651-40622 New Genuine Part |
91651-40622 |
US $0.67 |
||
|
9338516030
|
9338516030
93385-16030 Lever, Cooler Control, No.1 |
93385-16030 |
US $1.60 |
||
|
9338518020
|
9338518020
93385-18020
New Genuine Part
|
93385-18020 |
— | ||
|
9354054016
|
9354054016
93540-54016 SCREW |
93540-54016 |
US $1.10 |
