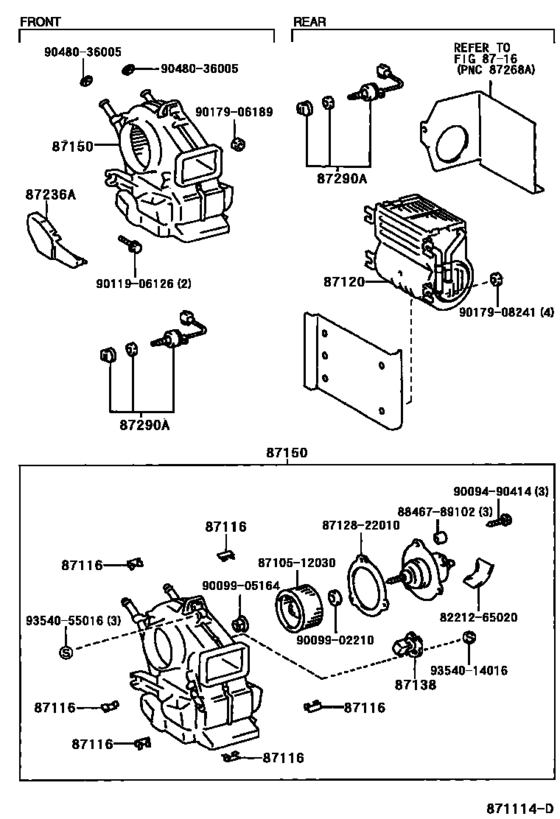

Heating & Air Conditioning - Heater Unit & Blower ([10.1996 - ] (9610- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- SRF
- ENGINE
- 15BFT
- From
- 10.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87116
|
87116
87116-14010
Spring, Heater Case Fastening
[10.1996 -] BXD20 |
87116-14010 |
— | ||
|
87120
|
87120
87110-65030
Heater Assy, Rear
[10.1996 -] BXD20 |
87110-65030 |
— | ||
|
87138
|
87138
87138-65010 Resistor, Heater Blower[10.1996 -] BXD20 |
87138-65010 |
US $21.40 |
||
|
87150
|
87150
87150-65010
Radiator Assy, Heater
[10.1996 -] BXD20 |
87150-65010 |
— | ||
| replacement | |||||
|
87150
|
87150
87150-65020
Radiator Assy, Heater
[10.1996 -] BXD20 |
87150-65020 |
— | ||
|
87236A
|
87236A
87236-65010 Cover, Heater Blower[10.1996 -] BXD20 |
87236-65010 |
US $20.38 |
||
|
87290A
|
87290A
87290-65010 Switch Assy, Heater[10.1996 -] BXD20 |
87290-65010 |
US $67.12 |
||
|
8221265020
|
8221265020
82212-65020
Wire, Instrument Panel Lamp Feed
|
82212-65020 |
— | ||
|
8710512030
|
8710512030
87105-12030
Fan Sub-Assy, Heater Blower
|
87105-12030 |
— | ||
|
8712822010
|
8712822010
87128-22010
Packing, Heater Blower Motor
|
87128-22010 |
— | ||
|
8846789102
|
8846789102
88467-89102
Cushion, Cooler Condenser, No.1
|
88467-89102 |
— | ||
|
9009490414
|
9009490414
90094-90414
New Genuine Part
|
90094-90414 |
— | ||
|
9009902210
|
9009902210
90099-02210 New Genuine Part |
90099-02210 |
US $0.87 |
||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.83 |
||
|
9011906126
|
9011906126
90119-06126 BOLT |
90119-06126 |
US $1.25 |
||
|
9017906189
|
9017906189
90179-06189 New Genuine Part |
90179-06189 |
US $1.25 |
||
|
9017908241
|
9017908241
90179-08241 NUT |
90179-08241 |
from US $0.89 |
||
|
9048036005
|
9048036005
90480-36005 Grommet, Heater Hose |
90480-36005 |
US $3.58 |
||
|
9354014016
|
9354014016
93540-14016 SCREW |
93540-14016 |
US $1.60 |
||
|
9354055016
|
9354055016
93540-55016 SCREW |
93540-55016 |
US $1.25 |
||
