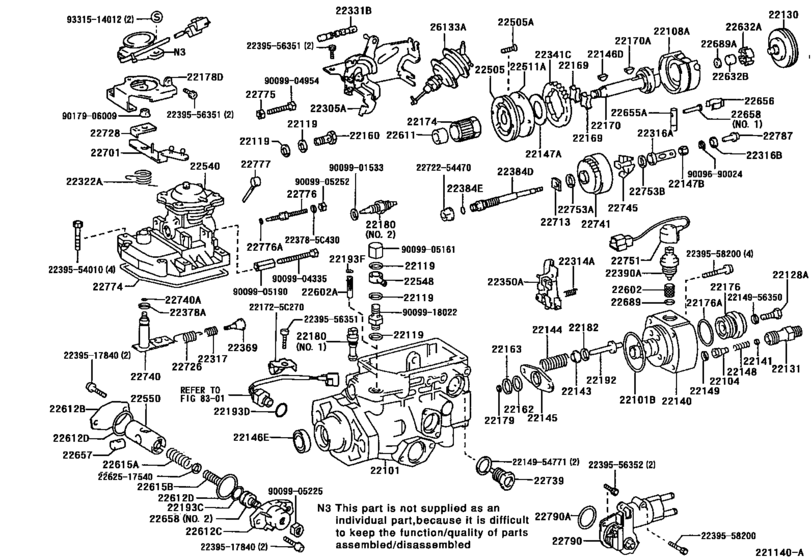

Injection Pump Body ([08.2000 - ] (0008- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- SRF
- ENGINE
- 15BFT
- From
- 10.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22101
|
22101
22101-17840 Housing Sub-Assy, Injection Pump[10.1996 -] 15BFT..BXD20 |
22101-17840 |
US $201.70 |
||
|
22101B
|
22101B
90099-14053 Ring, O(For Injection Pump Housing)[10.1996 - 10.2001] 15BFT..BXD20 |
90099-14053 |
from US $3.84 |
||
|
22104
|
22104
22104-17840 Valve Sub-Assy, Injection Pump Delivery[10.1996 -] 15BFT..BXD20 |
22104-17840 |
US $31.36 |
||
|
22108A
|
22108A
22108-5C090
Ring Sub-Assy, Roller
[10.1996 -] 15BFT..BXD20 |
22108-5C090 |
— | ||
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[04.1997 -] 15BFT..BXD20 |
90201-12109 |
from US $1.18 |
||
|
22128A
|
22128A
22128-56330
Bolt, Distributive Head
[10.1996 -] 15BFT..BXD20 |
22128-56330 |
— | ||
|
22130
|
22130
22130-5C090 Camplate Sub-Assy, Face[10.1996 -] 15BFT..BXD20 |
22130-5C090 |
US $86.70 |
||
|
22131
|
22131
22131-17420
Holder, Delivery Valve
[10.1996 -] 15BFT..BXD20 |
22131-17420 |
— | ||
|
22140
|
22140
22140-5C090 Head Sub-Assy, Distributive Pump[10.1996 -] 15BFT..BXD20 |
22140-5C090 |
US $287.66 |
||
|
22141
|
22141
22141-54010
Seat, Delivery Valve Spring
[10.1996 -] 15BFT..BXD20 |
22141-54010 |
— | ||
|
22143
|
22143
22143-56350
Seat, Spring Upper
[10.1996 -] 15BFT..BXD20 |
22143-56350 |
— | ||
|
22144
|
22144
22144-17840
Spring, Pump Plunger
[10.1996 - 09.1998] 15BFT..BXD20 |
22144-17840 |
— | ||
|
22144
|
22144
22144-5C090
Spring, Pump Plunger
[09.1998 -] 15BFT..BXD20 |
22144-5C090 |
— | ||
|
22145
|
22145
22145-56350
Seat, Spring, Lower
[10.1996 -] 15BFT..BXD20 |
22145-56350 |
— | ||
|
22146D
|
22146D
90099-13018 Key(For Drive Gear)[10.1996 -] 15BFT..BXD20 |
90099-13018 |
from US $5.37 |
||
|
22146E
|
22146E
22544-64740 Seal, Oil, Injection Pump Camshaft[10.1996 -] 15BFT..BXD20 |
22544-64740 |
from US $3.32 |
||
|
22147A
|
22147A
22161-54010 Washer, Drive Shaft[10.1996 -] 15BFT..BXD20 |
22161-54010 |
US $17.97 |
||
|
22147B
|
22147B
22147-54290
Ring, Governor Sleeve
[10.1996 -] 15BFT..BXD20 |
22147-54290 |
— | ||
|
22148
|
22148
22148-5B250 Spring, Delivery Valve[10.1996 -] 15BFT..BXD20 |
22148-5B250 |
US $1.90 |
||
|
22149
|
22149
22149-56351 Gasket, Delivery Valve[10.1996 -] 15BFT..BXD20 |
22149-56351 |
from US $0.42 |
||
|
22160
|
22160
22160-56350
Screw Sub-Assy, Overflow
[10.1996 -] 15BFT..BXD20 |
22160-56350 |
— | ||
|
22162
|
22162
22162-54010 Plate, Plunger Upper[10.1996 -] 15BFT..BXD20 |
22162-54010 |
from US $3.52 |
||
|
22163
|
22163
22163-54010 Plate, Plunger Lower[10.1996 -] 15BFT..BXD20 |
22163-54010 |
from US $2.85 |
||
|
22169
|
22169
22169-54180
Joint, Rubber
[10.1996 -] 15BFT..BXD20 |
22169-54180 |
— | ||
|
22170
|
22170
22170-17840 Shaft Sub-Assy, Drive[10.1996 - 08.2000] 15BFT..BXD20 |
22170-17840 |
US $50.33 |
||
|
22170
|
22170
22170-5C120
Shaft Sub-Assy, Drive
[08.2000 -] 15BFT..BXD20 |
22170-5C120 |
— | ||
|
22170A
|
22170A
90099-13017 Key(For Drive Gear)[10.1996 -] 15BFT..BXD20 |
90099-13017 |
US $8.21 |
||
|
22174
|
22174
22174-58270
Shaft, Spline
[10.1996 -] 15BFT..BXD20 |
22174-58270 |
— | ||
|
22176
|
22176
22176-54020 Plug, Distributive Head[10.1996 -] 15BFT..BXD20 |
22176-54020 |
from US $10.48 |
||
|
22176A
|
22176A
22193-54772 Ring, O(For Distributive Head Plug)[10.1996 -] 15BFT..BXD20 |
22193-54772 |
from US $2.62 |
||
|
22178D
|
22178D
22178-5C270
Bracket(For Injection Pump Assy)
[10.1996 -] 15BFT..BXD20 |
22178-5C270 |
— | ||
|
22179
|
22179
22179-54010
Shim, Plunger Adjusting
[10.1996 -] 15BFT..BXD20 T=1.9 |
22179-54010 |
— | ||
|
22179
|
22179
22179-54011
Shim, Plunger Adjusting
[10.1996 -] 15BFT..BXD20 T=2.0 |
22179-54011 |
— | ||
|
22179
|
22179
22179-54012
Shim, Plunger Adjusting
[10.1996 -] 15BFT..BXD20 T=2.1 |
22179-54012 |
— | ||
|
22179
|
22179
22179-54013
Shim, Plunger Adjusting
[10.1996 -] 15BFT..BXD20 T=2.2 |
22179-54013 |
— | ||
|
22179
|
22179
22179-54014
Shim, Plunger Adjusting
[10.1996 -] 15BFT..BXD20 T=2.3 |
22179-54014 |
— | ||
|
22179
|
22179
22179-54015
Shim, Plunger Adjusting
[10.1996 -] 15BFT..BXD20 T=2.4 |
22179-54015 |
— | ||
|
22179
|
22179
22179-54016
Shim, Plunger Adjusting
[10.1996 -] 15BFT..BXD20 T=2.5 |
22179-54016 |
— | ||
|
22179
|
22179
22179-54017
Shim, Plunger Adjusting
[10.1996 -] 15BFT..BXD20 T=2.6 |
22179-54017 |
— | ||
|
22179
|
22179
22179-54018
Shim, Plunger Adjusting
[10.1996 -] 15BFT..BXD20 T=2.7 |
22179-54018 |
— | ||
|
22179
|
22179
22179-54019
Shim, Plunger Adjusting
[10.1996 -] 15BFT..BXD20 T=2.8 |
22179-54019 |
— | ||
|
22179
|
22179
22179-54020
Shim, Plunger Adjusting
[10.1996 -] 15BFT..BXD20 T=2.9 |
22179-54020 |
— | ||
|
22180
|
22180
22180-17140
Valve Sub-Assy, Regulator
[10.1996 -] 15BFT..BXD20 NO.2 |
22180-17140 |
— | ||
|
22180
|
22180
22180-56320
Valve Sub-Assy, Regulator
[10.1996 -] 15BFT..BXD20 NO.2/ -17140 GA SEI |
22180-56320 |
— | ||
|
22180
|
22180
22180-56351
Valve Sub-Assy, Regulator
[10.1996 -] 15BFT..BXD20 NO.1 |
22180-56351 |
— | ||
|
22182
|
22182
22182-17010
Plate, Tappet Adjusting Shim
[10.1996 - 04.1998] 15BFT..BXD20 T=0.9 |
22182-17010 |
— | ||
|
22182
|
22182
22182-17011
Plate, Tappet Adjusting Shim
[10.1996 - 04.1998] 15BFT..BXD20 T=1.1 |
22182-17011 |
— | ||
|
22182
|
22182
22182-17012
Plate, Tappet Adjusting Shim
[10.1996 - 04.1998] 15BFT..BXD20 T=1.3 |
22182-17012 |
— | ||
|
22182
|
22182
22182-17013
Plate, Tappet Adjusting Shim
[10.1996 - 04.1998] 15BFT..BXD20 T=1.4 |
22182-17013 |
— | ||
|
22182
|
22182
22182-54010
Plate, Tappet Adjusting Shim
[10.1996 -] 15BFT..BXD20 T=0.5 |
22182-54010 |
— | ||
|
22182
|
22182
22183-54010
Plate, Tappet Adjusting Shim
[10.1996 -] 15BFT..BXD20 T=0.8 |
22183-54010 |
— | ||
|
22182
|
22182
22184-54010
Plate, Tappet Adjusting Shim
[10.1996 -] 15BFT..BXD20 T=1.0 |
22184-54010 |
— | ||
|
22182
|
22182
22185-54010
Plate, Tappet Adjusting Shim
[10.1996 -] 15BFT..BXD20 T=1.2 |
22185-54010 |
— | ||
|
22182
|
22182
22186-54010
Plate, Tappet Adjusting Shim
[10.1996 -] 15BFT..BXD20 T=1.5 |
22186-54010 |
— | ||
|
22182
|
22182
22187-54010
Plate, Tappet Adjusting Shim
[10.1996 -] 15BFT..BXD20 T=1.8 |
22187-54010 |
— | ||
|
22182
|
22182
22188-54010
Plate, Tappet Adjusting Shim
[10.1996 -] 15BFT..BXD20 T=2.0 |
22188-54010 |
— | ||
|
22192
|
22192
22192-56350
Guide Sub-Assy, Plunger Spring
[10.1996 -] 15BFT..BXD20 |
22192-56350 |
— | ||
|
22193C
|
22193C
22193-17020 Ring, O(For Lever Connecting Pin)[10.1996 -] 15BFT..BXD20 |
22193-17020 |
US $1.54 |
||
|
22193D
|
22193D
22193-64750 Ring, O(For Lever Connecting Pin)[10.1996 -] 15BFT..BXD20 |
22193-64750 |
from US $0.84 |
||
|
22193F
|
22193F
22193-5B320 Ring, O(For Fuel Injection Pump Filter)[10.1996 -] 15BFT..BXD20 |
22193-5B320 |
from US $1.35 |
||
|
22305A
|
22305A
22305-5C270
Idle-Up Sub-Assy
[10.1996 -] 15BFT..BXD20 |
22305-5C270 |
— | ||
|
22314A
|
22314A
22314-54010
Spring, Lever Support
[10.1996 -] 15BFT..BXD20 |
22314-54010 |
— | ||
|
22316A
|
22316A
22316-5C270
Sleeve, Governor
[10.1996 -] 15BFT..BXD20 ID=1.00 |
22316-5C270 |
— | ||
|
22316B
|
22316B
90099-10148
Bearing, Ball(For Governor Sleeve)
[10.1996 -] 15BFT..BXD20 |
90099-10148 |
— | ||
|
22317
|
22317
22317-56350
Spring, Governor Domper
[10.1996 -] 15BFT..BXD20 K=0.1,L=8.2 |
22317-56350 |
— | ||
|
22322A
|
22322A
22322-17170
Spring, Return
[10.1996 -] 15BFT..BXD20 |
22322-17170 |
— | ||
|
22331B
|
22331B
22331-58490 Rod Sub-Assy[10.1996 -] 15BFT..BXD20 |
22331-58490 |
from US $16.80 |
||
|
22341C
|
22341C
22341-54010
Gear, Governor Drive
[10.1996 -] 15BFT..BXD20 |
22341-54010 |
— | ||
|
22350A
|
22350A
22350-5C340
Governor Assy, Torque Control
[10.1996 -] 15BFT..BXD20 |
22350-5C340 |
— | ||
|
22369
|
22369
22369-54010
Seat, Governor Spring
[10.1996 -] 15BFT..BXD20 |
22369-54010 |
— | ||
|
22378A
|
22378A
22378-64010 Washer, Governor Thrust[10.1996 -] 15BFT..BXD20 |
22378-64010 |
from US $0.42 |
||
|
22384D
|
22384D
22384-54010
Shaft, Governor
[10.1996 -] 15BFT..BXD20 |
22384-54010 |
— | ||
|
22384E
|
22384E
90099-14049
Ring, O(For Governor Main Shaft)
[10.1996 -] 15BFT..BXD20 |
90099-14049 |
— | ||
|
22390A
|
22390A
22390-56290
Solenoid Assy, Fuel Cut
[10.1996 - 03.1997] 15BFT..BXD20 |
22390-56290 |
— | ||
| replacement | |||||
|
22390A
|
22390A
22390-56291 Solenoid Assy, Fuel Cut[10.1996 - 03.1997] 15BFT..BXD20 |
22390-56291 |
from US $108.33 |
||
|
22390A
|
22390A
22390-56291 Solenoid Assy, Fuel Cut[03.1997 -] 15BFT..BXD20 |
22390-56291 |
from US $108.33 |
||
|
22505
|
22505
22505-54010 Pump Sub-Assy, Fuel Feed[10.1996 -] 15BFT..BXD20 |
22505-54010 |
from US $102.30 |
||
|
22505A
|
22505A
90099-00723 Screw(For Fuel Feed Pump)[10.1996 -] 15BFT..BXD20 |
90099-00723 |
US $0.68 |
||
|
22511A
|
22511A
22511-58650 Cover, Feed Pump[10.1996 -] 15BFT..BXD20 |
22511-58650 |
US $14.59 |
||
|
22540
|
22540
22540-5C340
Compensator Sub-Assy, Boost
[10.1996 -] 15BFT..BXD20 |
22540-5C340 |
— | ||
|
22548
|
22548
22548-17010
Nipple, Swivel
[10.1996 -] 15BFT..BXD20 |
22548-17010 |
— | ||
|
22550
|
22550
22550-5C130
Piston Assy, Timer
[10.1996 -] 15BFT..BXD20 |
22550-5C130 |
— | ||
|
22602
|
22602
22602-56350 Filter Sub-Assy, Fuel Injection Pump[10.1996 -] 15BFT..BXD20 |
22602-56350 |
from US $10.17 |
||
|
22602A
|
22602A
22602-5B320 Filter Sub-Assy, Fuel Injection Pump, No.2[10.1996 -] 15BFT..BXD20 |
22602-5B320 |
from US $13.49 |
||
|
22611
|
22611
22611-58200
Nut, Timer Round
[10.1996 -] 15BFT..BXD20 |
22611-58200 |
— | ||
|
22612B
|
22612B
22612-17840
Cover, Timer
[10.1996 -] 15BFT..BXD20 |
22612-17840 |
— | ||
|
22612C
|
22612C
22612-17020
Cover, Timer
[10.1996 -] 15BFT..BXD20 |
22612-17020 |
— | ||
|
22612D
|
22612D
22193-17840 Ring, O(For Timer Cover)[10.1996 -] 15BFT..BXD20 |
22193-17840 |
from US $2.55 |
||
|
22615A
|
22615A
22615-17030 Spring, Timer Outer[10.1996 -] 15BFT..BXD20 K=1.7,L=27.9 |
22615-17030 |
US $1.29 |
||
|
22615B
|
22615B
22615-5C120
Spring, Timer Inner
[10.1996 -] 15BFT..BXD20 K=0.13,L=35.1 |
22615-5C120 |
— | ||
|
22615B
|
22615B
22615-5C121
Spring, Timer Inner
[10.1996 -] 15BFT..BXD20 K=0.15,L=34.6 |
22615-5C121 |
— | ||
|
22615B
|
22615B
22615-5C122
Spring, Timer Outer
[10.1996 -] 15BFT..BXD20 K=0.16,L=34.6 |
22615-5C122 |
— | ||
|
22615B
|
22615B
22615-5C153
Spring, Timer Outer
[10.1996 -] 15BFT..BXD20 K=0.12,L=35.9 |
22615-5C153 |
— | ||
|
22615B
|
22615B
22615-5C154
Spring, Timer Inner
[10.1996 -] 15BFT..BXD20 K=0.14,L=35.0 |
22615-5C154 |
— | ||
|
22632A
|
22632A
22632-17840 Coupling, Injection Pump[10.1996 -] 15BFT..BXD20 |
22632-17840 |
US $32.24 |
||
|
22632B
|
22632B
90099-70002
Spacer, Injection Pump Coupling
[08.2000 -] 15BFT..BXD20 |
90099-70002 |
— | ||
|
22655A
|
22655A
22655-17840
Pin, Timer Slide
[10.1996 -] 15BFT..BXD20 |
22655-17840 |
— | ||
|
22656
|
22656
22656-17840
Clip, Timer
[10.1996 -] 15BFT..BXD20 |
22656-17840 |
— | ||
|
22657
|
22657
22657-54010
Clip, Timer
[10.1996 -] 15BFT..BXD20 |
22657-54010 |
— | ||
|
22658
|
22658
22658-17020
Stopper, Timer
[10.1996 -] 15BFT..BXD20 NO.2 |
22658-17020 |
— | ||
|
22658
|
22658
22658-17840
Stopper, Timer
[10.1996 -] 15BFT..BXD20 NO.1 |
22658-17840 |
— | ||
|
22689
|
22689
22689-56350 Washer(For Swivel Nipple)[10.1996 -] 15BFT..BXD20 |
22689-56350 |
from US $0.70 |
||
|
22689A
|
22689A
22689-5B170
Spacer, Injection Pump Coupling
[08.2000 -] 15BFT..BXD20 |
22689-5B170 |
— | ||
|
22701
|
22701
22701-5C271
Lever Sub-Assy, Adjusting
[10.1996 -] 15BFT..BXD20 MARK"564" |
22701-5C271 |
— | ||
|
22701
|
22701
22701-5C272
Lever Sub-Assy, Adjusting
[10.1996 -] 15BFT..BXD20 MARK"565" |
22701-5C272 |
— | ||
|
22701
|
22701
22701-5C273
Lever Sub-Assy, Adjusting
[10.1996 -] 15BFT..BXD20 MARK"566" |
22701-5C273 |
— | ||
|
22713
|
22713
22713-54010
Washer, Governor Gear Adjusting
[10.1996 -] 15BFT..BXD20 T=1.05 |
22713-54010 |
— | ||
|
22713
|
22713
22714-54010
Washer, Governor Gear Adjusting
[10.1996 -] 15BFT..BXD20 T=1.25 |
22714-54010 |
— | ||
|
22713
|
22713
22715-54010
Washer, Governor Gear Adjusting
[10.1996 -] 15BFT..BXD20 T=1.45 |
22715-54010 |
— | ||
|
22713
|
22713
22716-54010
Washer, Governor Gear Adjusting
[10.1996 -] 15BFT..BXD20 T=1.65 |
22716-54010 |
— | ||
|
22713
|
22713
22717-54010 Washer, Governor Gear Adjusting[10.1996 -] 15BFT..BXD20 T=1.85 |
22717-54010 |
US $6.63 |
||
|
22726
|
22726
22726-56350
Spring, Speed Control
[10.1996 -] 15BFT..BXD20 |
22726-56350 |
— | ||
|
22728
|
22728
22728-54010
Guide, Return Spring
[10.1996 -] 15BFT..BXD20 |
22728-54010 |
— | ||
|
22739
|
22739
22739-54020
Bolt, Governor Link Support
[10.1996 -] 15BFT..BXD20 |
22739-54020 |
— | ||
|
22740
|
22740
22740-21910 Shaft Sub-Assy, Governor Adjusting[10.1996 -] 15BFT..BXD20 L=20 |
22740-21910 |
US $20.60 |
||
|
22740
|
22740
22740-58650
Shaft Sub-Assy, Governor Adjusting
[10.1996 -] 15BFT..BXD20 L=23.4 |
22740-58650 |
— | ||
|
22740A
|
22740A
22193-54770 Ring, O(For Governor Adjusting Shaft)[10.1996 -] 15BFT..BXD20 |
22193-54770 |
from US $1.75 |
||
|
22741
|
22741
22741-54020
Holder Sub-Assy, Flyweight
[10.1996 -] 15BFT..BXD20 |
22741-54020 |
— | ||
|
22745
|
22745
22745-5C090
Flyweight, Distributive Pump
[10.1996 -] 15BFT..BXD20 |
22745-5C090 |
— | ||
|
22751
|
22751
22751-5C270
Wire Sub-Assy, Fuel Cut Solenoid
[10.1996 -] 15BFT..BXD20 |
22751-5C270 |
— | ||
|
22753A
|
22753A
22753-54010
Washer, Flyweight, No.1
[10.1996 -] 15BFT..BXD20 |
22753-54010 |
— | ||
|
22753B
|
22753B
22753-54020 Washer, Flyweight, No.2[10.1996 -] 15BFT..BXD20 |
22753-54020 |
US $1.37 |
||
|
22774
|
22774
22774-54270 Gasket, Governor Cover[10.1996 -] 15BFT..BXD20 |
22774-54270 |
from US $3.14 |
||
|
22775
|
22775
22775-77121
Nut, Rock
[10.1996 -] 15BFT..BXD20 |
22775-77121 |
— | ||
|
22776
|
22776
22776-55030
Screw, Smoke Set Adjusting
[10.1996 -] 15BFT..BXD20 |
22776-55030 |
— | ||
|
22776A
|
22776A
22193-54771 Ring, O(For Smoke Set Screw)[10.1996 -] 15BFT..BXD20 |
22193-54771 |
US $1.24 |
||
|
22777
|
22777
22777-54261
Cap, Rubber(For Bellows)
[10.1996 -] 15BFT..BXD20 |
22777-54261 |
— | ||
|
22787
|
22787
22787-17144
Plug, Governor Sleeve
[10.1996 -] 15BFT..BXD20 L=5.0 |
22787-17144 |
— | ||
|
22787
|
22787
22787-17150
Plug, Governor Sleeve
[10.1996 -] 15BFT..BXD20 L=5.6 |
22787-17150 |
— | ||
|
22787
|
22787
22787-54033
Plug, Governor Sleeve
[10.1996 -] 15BFT..BXD20 L=4.0 |
22787-54033 |
— | ||
|
22787
|
22787
22787-56357
Plug, Governor Sleeve
[10.1996 -] 15BFT..BXD20 L=6.6 |
22787-56357 |
— | ||
|
22787
|
22787
22787-64641
Plug, Governor Sleeve
[10.1996 -] 15BFT..BXD20 L=3.0 |
22787-64641 |
— | ||
|
22790
|
22790
22790-5C270
Cover Sub-Assy, Timer
[10.1996 -] 15BFT..BXD20 |
22790-5C270 |
— | ||
|
22790A
|
22790A
22193-17840 Ring, O(For Timer Cover)[10.1996 -] 15BFT..BXD20 |
22193-17840 |
from US $2.55 |
||
|
26133A
|
26133A
26133-5C100
Actuator Set, Idle-Up
[10.1996 -] 15BFT..BXD20 |
26133-5C100 |
— | ||
|
221725C270
|
221725C270
22172-5C270
Clip, Connector Support, Solenoid
|
22172-5C270 |
— | ||
|
223785C430
|
223785C430
22378-5C430
Washer, Governor Thrust
|
22378-5C430 |
— | ||
|
2214954771
|
2214954771
22149-54771
Gasket, Delivery Valve
|
22149-54771 |
— | ||
|
2214956350
|
2214956350
22149-56350
Gasket, Delivery Valve
|
22149-56350 |
— | ||
|
2239517840
|
2239517840
22395-17840
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-17840 |
— | ||
|
2239554010
|
2239554010
22395-54010
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-54010 |
— | ||
|
2239556351
|
2239556351
22395-56351
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-56351 |
— | ||
|
2239556352
|
2239556352
22395-56352
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-56352 |
— | ||
|
2239558200
|
2239558200
22395-58200
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-58200 |
— | ||
|
2262517540
|
2262517540
22625-17540
Washer, Timer Sensor Adjusting
|
22625-17540 |
— | ||
|
2272254470
|
2272254470
22722-54470
Nut, Governor Shaft Rock
|
22722-54470 |
— | ||
|
9009690024
|
9009690024
90096-90024
Ring, O(For Stopper Lever)
|
90096-90024 |
— | ||
|
9009901533
|
9009901533
90099-01533
Washer, Air Bleeder Nipple
|
90099-01533 |
— | ||
|
9009904335
|
9009904335
90099-04335
BOLT STUD
|
90099-04335 |
— | ||
|
9009904954
|
9009904954
90099-04954
BOLT
|
90099-04954 |
— | ||
|
9009905161
|
9009905161
90099-05161 Nut, Timer Round |
90099-05161 |
from US $1.25 |
||
|
9009905190
|
9009905190
90099-05190
BOLT STUD
|
90099-05190 |
— | ||
|
9009905225
|
9009905225
90099-05225
New Genuine Part
|
90099-05225 |
— | ||
|
9009905252
|
9009905252
90099-05252
New Genuine Part
|
90099-05252 |
— | ||
|
9009918022
|
9009918022
90099-18022 SCREW |
90099-18022 |
US $2.62 |
||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.65 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.72 |
||
