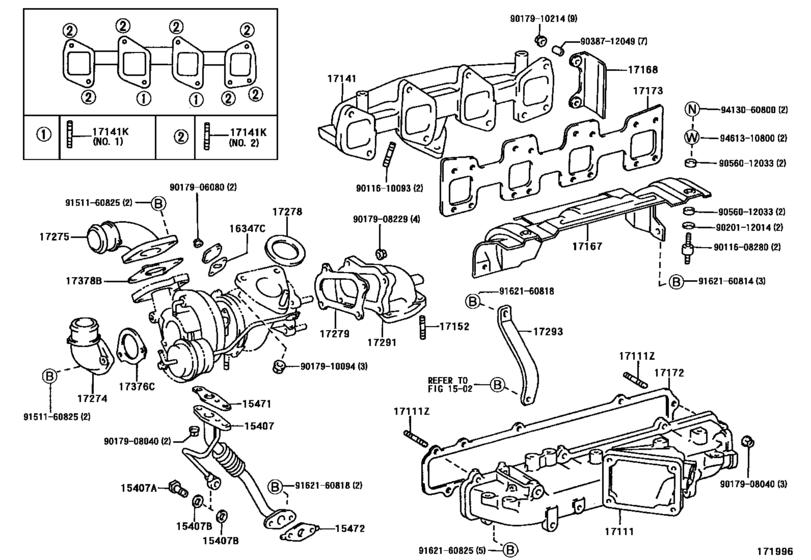

Manifold ([10.1996 - ] (9610- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- SRF
- ENGINE
- 15BFT
- From
- 10.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15407
|
15407
15407-58030 Pipe Sub-Assy, Turbo Oil Inlet[10.1996 -] 15BFT..BXD20 |
15407-58030 |
US $181.71 |
||
|
15407A
|
15407A
90401-12028 Bolt, Union(For Turbo Oil Inlet Pipe)[10.1996 -] 15BFT..BXD20 |
90401-12028 |
US $4.89 |
||
|
15407B
|
15407B
90430-12025 Gasket(For Turbo Oil Inlet Pipe)[10.1996 -] 15BFT..BXD20 |
90430-12025 |
from US $0.87 |
||
|
15471
|
15471
15471-58010 Gasket, Turbo Oil Inlet[10.1996 -] 15BFT..BXD20 |
15471-58010 |
from US $2.34 |
||
|
15472
|
15472
15472-58011 Gasket, Turbo Oil Outlet, No.1[10.1996 -] 15BFT..BXD20 |
15472-58011 |
US $9.32 |
||
|
16347C
|
16347C
16347-67010 Gasket(For Turbo Water Pipe)[10.1996 -] 15BFT..BXD20 |
16347-67010 |
US $1.61 |
||
|
17111
|
17111
17111-58040 Manifold, Intake[10.1996 -] 15BFT..BXD20 |
17111-58040 |
US $234.12 |
||
|
17111Z
|
17111Z
92132-60820 Bolt, Stud(For Intake Manifold To Cylinder Head)[10.1996 -] 15BFT..BXD20 |
92132-60820 |
US $0.79 |
||
|
17141
|
17141
17141-58050
Manifold, Exhaust
[10.1996 -] 15BFT..BXD20 |
17141-58050 |
— | ||
| replacement | |||||
|
17141
|
17141
17141-58051 Manifold, ExhaustEXHAUST [10.1996 -] 15BFT..BXD20 |
17141-58051 |
US $302.27 |
||
|
17141K
|
17141K
90116-10063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[10.1996 -] 15BFT..BXD20 NO.1 |
90116-10063 |
from US $0.91 |
||
|
17141K
|
17141K
90116-10198 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[10.1996 -] 15BFT..BXD20 NO.2 |
90116-10198 |
US $15.95 |
||
|
17152
|
17152
90126-10006 Bolt, Stud(For Manifold To Exhaust Pipe)[10.1996 -] 15BFT..BXD20 |
90126-10006 |
from US $4.45 |
||
|
17167
|
17167
17167-58050 Insulator, Exhaust Manifold Heat, No.1[10.1996 -] 15BFT..BXD20 |
17167-58050 |
US $87.36 |
||
|
17168
|
17168
17168-58050 Insulator, Exhaust Manifold Heat, No.2[10.1996 -] 15BFT..BXD20 |
17168-58050 |
US $8.21 |
||
|
17172
|
17172
17171-58010 Gasket, Manifold To Cylinder Head[10.1996 -] 15BFT..BXD20 |
17171-58010 |
US $7.34 |
||
|
17173
|
17173
17173-58040 Gasket, Exhaust Manifold To Head[10.1996 -] 15BFT..BXD20 |
17173-58040 |
US $59.23 |
||
|
17274
|
17274
17274-58010 Elbow, Compressor Inlet[10.1996 -] 15BFT..BXD20 |
17274-58010 |
US $49.10 |
||
|
17275
|
17275
17275-58020 Elbow, Compressor Outlet[10.1996 -] 15BFT..BXD20 |
17275-58020 |
US $81.54 |
||
|
17278
|
17278
17278-58030 Gasket, Turbo To Exhaust Manifold[10.1996 -] 15BFT..BXD20 |
17278-58030 |
US $7.86 |
||
|
17279
|
17279
17279-58030 Gasket, Turbine Outlet Elbow[10.1996 -] 15BFT..BXD20 |
17279-58030 |
US $19.57 |
||
|
17291
|
17291
17291-58030 Elbow, Turbine Outlet[10.1996 -] 15BFT..BXD20 |
17291-58030 |
US $122.30 |
||
|
17293
|
17293
17293-58020 Stay, Turbocharger[10.1996 -] 15BFT..BXD20 |
17293-58020 |
US $20.27 |
||
|
17376C
|
17376C
17376-46010 Gasket, Air Tube[10.1996 -] 15BFT..BXD20 |
17376-46010 |
US $8.06 |
||
|
17378B
|
17378B
17378-46010 Gasket, Air Tube, No.3[10.1996 -] 15BFT..BXD20 |
17378-46010 |
US $8.06 |
||
|
9011608280
|
9011608280
90116-08280 STUD |
90116-08280 |
from US $1.31 |
||
|
9011610093
|
9011610093
90116-10093 Bolt, Stud(For Turbocharger) |
90116-10093 |
US $3.40 |
||
|
9017906080
|
9017906080
90179-06080 NUT |
90179-06080 |
from US $0.46 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9017908229
|
9017908229
90179-08229 NUT |
90179-08229 |
from US $1.16 |
||
|
9017910094
|
9017910094
90179-10094 NUT |
90179-10094 |
from US $2.39 |
||
|
9017910214
|
9017910214
90179-10214 NUT |
90179-10214 |
US $1.97 |
||
|
9020112014
|
9020112014
90201-12014 New Genuine Part |
90201-12014 |
US $2.15 |
||
|
9038712049
|
9038712049
90387-12049 New Genuine Part |
90387-12049 |
US $5.20 |
||
|
9056012033
|
9056012033
90560-12033 New Genuine Part |
90560-12033 |
US $1.97 |
||
|
9151160825
|
9151160825
91511-60825
Bolt (For Transfer Stiffener Plate)
|
91511-60825 |
— | ||
| replacement | |||||
|
9151160825
|
9151160825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
from US $0.93 |
||
|
9162160814
|
9162160814
91621-60814
Bolt (For Transmission Control Cable Bracket)
|
91621-60814 |
— | ||
| replacement | |||||
|
9162160814
|
9162160814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.67 |
||
|
9162160818
|
9162160818
91621-60818
Bolt(For Automatic Transmission Case Protector)
|
91621-60818 |
— | ||
| replacement | |||||
|
9162160818
|
9162160818
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.97 |
||
|
9162160825
|
9162160825
91621-60825
BOLT
|
91621-60825 |
— | ||
| replacement | |||||
|
9162160825
|
9162160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.82 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.67 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.67 |
||
