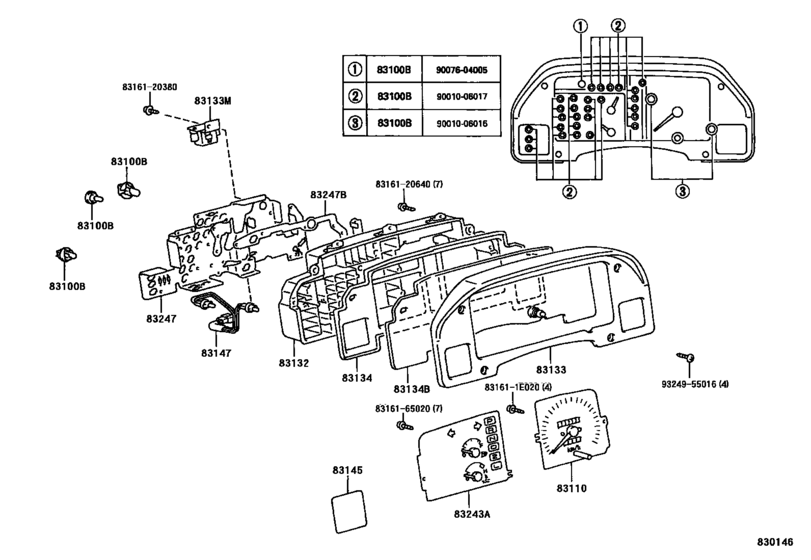

Meter ([10.1996 - ] COMBINATION METER (9610- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- SRF
- ENGINE
- 15BFT
- From
- 10.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
90010-06016 Bulb, Combination Meter, No.1[10.1996 -] BXD20 24V 3W |
90010-06016 |
US $2.33 |
||
|
83100B
|
83100B
90010-06017 Bulb, Combination Meter, No.1[10.1996 -] BXD20 24V 1.8KW |
90010-06017 |
US $2.20 |
||
|
83100B
|
83100B
90076-04005 Bulb, Combination Meter, No.1[10.1996 -] BXD20 24V 1.4W |
90076-04005 |
US $7.86 |
||
|
83110
|
83110
83110-65040 Speedometer Assy[10.1996 - 12.1996] BXD20 |
83110-65040 |
US $390.21 |
||
| replacement | |||||
|
83110
|
83110
83110-65041 Speedometer Assy[10.1996 - 12.1996] BXD20 |
83110-65041 |
US $294.11 |
||
|
83110
|
83110
83220-65010 Speedometer Assy[12.1996 -] BXD20 |
83220-65010 |
US $468.83 |
||
|
83132
|
83132
83132-65020 Case, Combination Meter[10.1996 -] BXD20 |
83132-65020 |
US $45.72 |
||
|
83133
|
83133
83821-65010
Plate, Combination Meter, No.1
[10.1996 -] BXD20 |
83821-65010 |
— | ||
|
83133M
|
83133M
83133-65020 Convertor Volt[10.1996 -] BXD20 |
83133-65020 |
US $37.56 |
||
|
83134
|
83134
83141-65020 Cover, Combination Meter, No.1[10.1996 -] BXD20 |
83141-65020 |
US $51.54 |
||
|
83134B
|
83134B
83138-65020 Cover, Combination Meter, No.2[10.1996 -] BXD20 |
83138-65020 |
US $54.69 |
||
|
83145
|
83145
83145-65020 Lens, Meter, No.1[10.1996 -] BXD20 |
83145-65020 |
US $6.55 |
||
|
83147
|
83147
83147-65040 Lamp, Meter No.1[10.1996 -] BXD20 |
83147-65040 |
US $13.25 |
||
|
83243A
|
83243A
83882-65010 Gauge Sub-Assy, Fuel Receiver[10.1996 -] BXD20 |
83882-65010 |
US $275.18 |
||
|
83247
|
83247
83861-65010 Plate, Meter Circuit[10.1996 -] BXD20 |
83861-65010 |
US $81.54 |
||
|
83247B
|
83247B
83862-65010 Plate, Meter Circuit, No.2[10.1996 -] BXD20 |
83862-65010 |
US $33.92 |
||
|
831611E020
|
831611E020
83161-1E020 Case, Combination Meter Mirror, No.1 |
83161-1E020 |
US $0.86 |
||
|
8316120380
|
8316120380
83161-20380 Case, Combination Meter Mirror, No.1 |
83161-20380 |
US $1.14 |
||
|
8316120640
|
8316120640
83161-20640 Case, Combination Meter Mirror, No.1 |
83161-20640 |
US $0.87 |
||
|
8316165020
|
8316165020
83161-65020 Case, Combination Meter Mirror, No.1 |
83161-65020 |
US $0.86 |
||
|
9324955016
|
9324955016
93249-55016 New Genuine Part |
93249-55016 |
US $2.04 |
||
