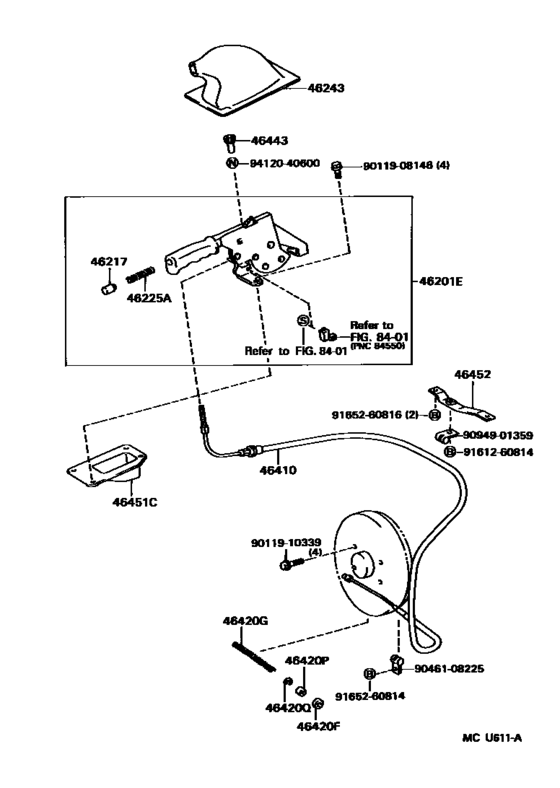

Parking Brake & Cable ([10.1996 - ] (9610- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- SRF
- ENGINE
- 15BFT
- From
- 10.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46201E
|
46201E
46210-65030-C0 Lever Sub-Assy, Parking Brake[10.1996 -] BXD20 BLACK,TRIM1# |
46210-65030-C0 |
US $67.09 |
||
|
46217
|
46217
46217-20020-11
Knob, Parking Brake Release Rod
[10.1996 -] BXD20 BLACK,TRIM1# |
46217-20020-11 |
— | ||
|
46225A
|
46225A
90501-10138 Spring, Compression(For Parking Brake Pawl Rod)[10.1996 -] BXD20 |
90501-10138 |
US $0.52 |
||
|
46243
|
46243
46243-65010-C0 Cover, Parking Brake Lever[10.1996 -] BXD20 BLACK,TRIM1# |
46243-65010-C0 |
US $48.05 |
||
|
46410
|
46410
46410-65010 Cable Assy, Parking Brake, No.1[10.1996 -] BXD20 |
46410-65010 |
US $70.41 |
||
|
46420F
|
46420F
90303-10001 Seal, Dust(For Parking Brake Cable)[10.1996 -] BXD20 |
90303-10001 |
US $1.51 |
||
|
46420G
|
46420G
90501-14021 Spring(For Parking Cable Inner Wire Set)[10.1996 -] BXD20 |
90501-14021 |
from US $2.20 |
||
|
46420P
|
46420P
90560-08002 Spacer(For Parking Brake Handle)[10.1996 -] BXD20 |
90560-08002 |
US $2.20 |
||
|
46420Q
|
46420Q
96160-00700 Ring, E(For Chain Tensioner Slipper)[10.1996 -] BXD20 |
96160-00700 |
US $2.48 |
||
|
46443
|
46443
46443-12020 Cap, Cable Adjusting[10.1996 -] BXD20 |
46443-12020 |
from US $1.67 |
||
|
46451C
|
46451C
46451-65010 Bracket, Parking Brake Cable Support, No.1[10.1996 -] BXD20 |
46451-65010 |
US $16.31 |
||
|
46452
|
46452
46452-65010 Bracket, Parking Brake Cable Support, No.2[10.1996 -] BXD20 |
46452-65010 |
US $8.30 |
||
|
9011908146
|
9011908146
90119-08146 Bolt(For Parking Brake Setting) |
90119-08146 |
US $2.48 |
||
|
9011910339
|
9011910339
90119-10339 Bolt, Hexagon(For Front Disc Brake Caliper) |
90119-10339 |
US $1.10 |
||
|
9046108225
|
9046108225
90461-08225 Clamp, No.3(For Parking Brake Cable) |
90461-08225 |
US $1.79 |
||
|
9094901359
|
9094901359
90949-01359 Clamp, No.1(For Parking Brake Cable) |
90949-01359 |
US $4.22 |
||
|
9161260814
|
9161260814
91612-60814
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91612-60814 |
— | ||
| replacement | |||||
|
9161260814
|
9161260814
91611-60814 Bolt |
91611-60814 |
from US $0.72 |
||
|
9165260814
|
9165260814
91652-60814 New Genuine Part |
91652-60814 |
US $1.75 |
||
| replacement | |||||
|
9165260814
|
9165260814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.80 |
||
|
9165260816
|
9165260816
91652-60816 New Genuine Part |
91652-60816 |
US $1.02 |
||
|
9412040600
|
9412040600
94120-40600 Nut, Wire Adjusting, No.1 |
94120-40600 |
US $2.06 |
||
