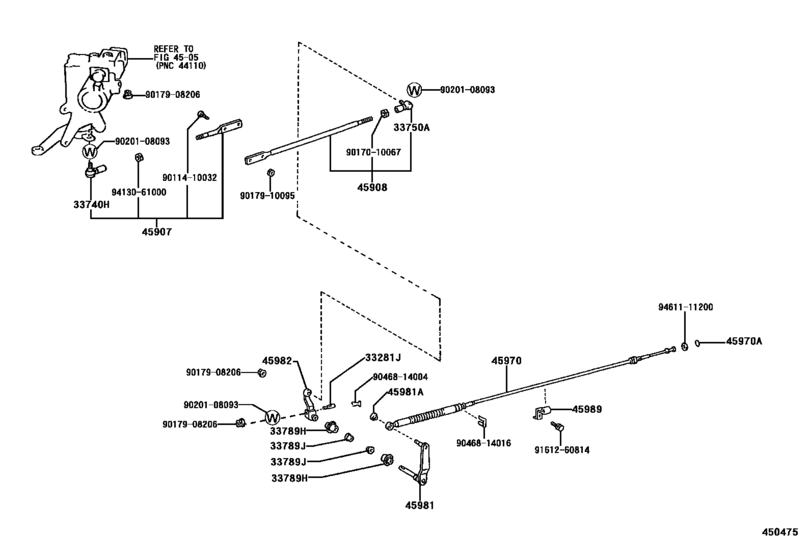

Rear Steering Connecting Parts (4Ws) ([10.1996 - ] (9610- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- SRF
- ENGINE
- 15BFT
- From
- 10.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33281J
|
33281J
33281-65010 Pin,lever Lock[10.1996 -] BXD20 |
33281-65010 |
US $3.32 |
||
|
33740H
|
33740H
33740-65010 End Assy, Connecting Rod, No.1[10.1996 -] BXD20 |
33740-65010 |
US $14.50 |
||
|
33750A
|
33750A
33750-65010 End Assy, Connecting Rod, No.2[10.1996 -] BXD20 |
33750-65010 |
US $18.70 |
||
|
33789H
|
33789H
33789-65010
Cover, Cross Shaft Dust, No.3
[10.1996 -] BXD20 |
33789-65010 |
— | ||
|
33789J
|
33789J
90386-15110 Bush (For Selecting Link)[10.1996 -] BXD20 |
90386-15110 |
from US $2.48 |
||
|
45907
|
45907
45907-65010 Shaft Sub-Assy, Rear Steering Gear Connecting, No.1[10.1996 -] BXD20 |
45907-65010 |
US $81.54 |
||
|
45908
|
45908
45908-65010
Shaft Sub-Assy, Rear Steering Gear Connecting, No.2
[10.1996 -] BXD20 |
45908-65010 |
— | ||
|
45970
|
45970
45970-65010 Cable Assy, Rear Steering Control, Rh[10.1996 -] BXD20 |
45970-65010 |
US $231.50 |
||
|
45970A
|
45970A
96721-19012 Ring, O (For Manual Transmission Oil Strainer)[10.1996 -] BXD20 |
96721-19012 |
US $1.93 |
||
|
45981
|
45981
45981-65010 Lever, Rear Steering Control, No,1[10.1996 -] BXD20 |
45981-65010 |
US $17.33 |
||
|
45981A
|
45981A
90386-07018 Bush[10.1996 -] BXD20 |
90386-07018 |
US $1.46 |
||
|
45982
|
45982
45982-65010 Lever, Rear Steering Control, No.2[10.1996 -] BXD20 |
45982-65010 |
US $10.13 |
||
|
45989
|
45989
45989-65010 Clanp, Rear Steering Connectimg Shaft Boot, No.1[10.1996 -] BXD20 |
45989-65010 |
US $2.33 |
||
|
9011410032
|
9011410032
90114-10032 Serration Bolt(For Front Lower Ball Joint) |
90114-10032 |
US $0.70 |
||
|
9017010067
|
9017010067
90170-10067 Nut, Hexagon(For Gear Shift Rod) |
90170-10067 |
US $1.22 |
||
|
9017908206
|
9017908206
90179-08206 Nut(For Front Suspension Support) |
90179-08206 |
from US $0.80 |
||
|
9017910095
|
9017910095
90179-10095 Nut(For Backing Plate To Rear Axle Housing Setting) |
90179-10095 |
from US $1.25 |
||
|
9020108093
|
9020108093
90201-08093 New Genuine Part |
90201-08093 |
from US $0.61 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.63 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.01 |
||
|
9161260814
|
9161260814
91612-60814
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91612-60814 |
— | ||
| replacement | |||||
|
9161260814
|
9161260814
91611-60814 Bolt |
91611-60814 |
from US $0.72 |
||
|
9413061000
|
9413061000
94130-61000 Nut(For Clutch Pedal Stopper) |
94130-61000 |
from US $0.76 |
||
|
9461111200
|
9461111200
94611-11200 New Genuine Part |
94611-11200 |
US $1.93 |
||
