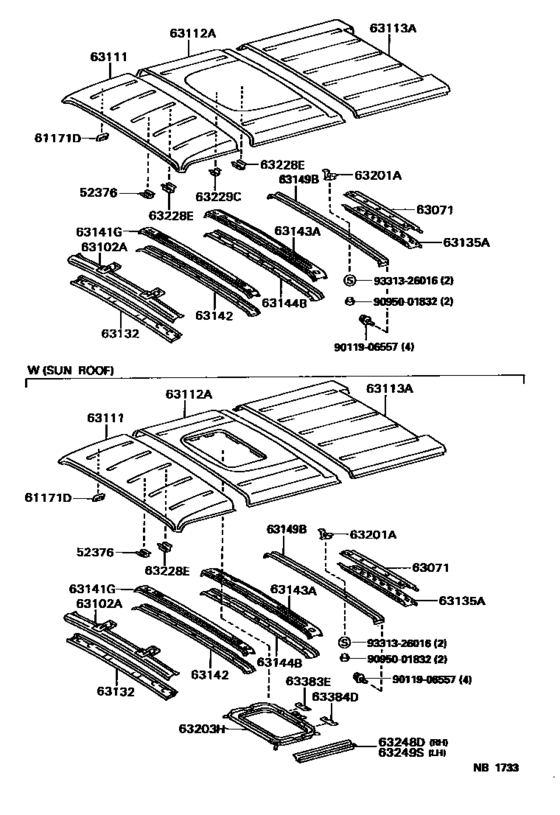

Roof Panel & Back Panel ([10.1996 - ] (9610- )SRF) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- SRF
- ENGINE
- 15BFT
- From
- 10.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52376
|
52376
52376-65010 Bracket, Mounting Hook Guide[10.1996 -] BXD20 |
52376-65010 |
US $15 |
||
|
61171D
|
61171D
61171-65020 Bracket, Antenna Pole Mounting[10.1996 -] BXD20 |
61171-65020 |
US $8.30 |
||
|
63071
|
63071
63071-65010 Frame Sub-Assy, Back Door Opening, Upper[10.1996 -] BXD20 |
63071-65010 |
US $216.94 |
||
|
63102A
|
63102A
63102-65010 Panel Sub-Assy, Windshield Header[10.1996 -] BXD20 |
63102-65010 |
US $216.94 |
||
|
63111
|
63111
63111-65030
Panel, Roof
[10.1996 -] BXD20 |
63111-65030 |
— | ||
|
63112A
|
63112A
63112-65030 Panel, Roof, No.2[10.1996 -] BXD20..SRF |
63112-65030 |
US $1,288.56 |
||
|
63112A
|
63112A
63112-65040 Panel, Roof, No.2[10.1996 -] BXD20..SRF W(SUN ROOF) |
63112-65040 |
US $1,288.56 |
||
|
63113A
|
63113A
63113-65040 Panel, Roof, No.3[10.1996 -] BXD20..SRF |
63113-65040 |
US $1,528.80 |
||
|
63132
|
63132
63132-65010 Panel, Windshield Header, Inner[10.1996 -] BXD20 |
63132-65010 |
US $189.28 |
||
|
63135A
|
63135A
63135-65010 Frame, Back Door Opening, Lower[10.1996 -] BXD20 |
63135-65010 |
US $136.86 |
||
|
63141G
|
63141G
63103-65020 Reinforcement, Roof Panel, No.1[10.1996 -] BXD20..SRF W(SUN ROOF) |
63103-65020 |
US $216.94 |
||
|
63141G
|
63141G
63141-65030 Reinforcement, Roof Panel, No.1[10.1996 -] BXD20 |
63141-65030 |
US $216.94 |
||
| replacement | |||||
|
63141G
|
63141G
63103-65020 Reinforcement, Roof Panel, No.1[10.1996 -] BXD20 |
63103-65020 |
US $216.94 |
||
|
63142
|
63142
63142-65010 Reinforcement, Roof Panel, No.2[10.1996 -] BXD20 |
63142-65010 |
US $216.94 |
||
|
63143A
|
63143A
63143-65030 Reinforcement, Roof Panel[10.1996 -] BXD20..SRF |
63143-65030 |
US $216.94 |
||
|
63144B
|
63144B
63144-65030 Reinforcement, Roof Panel, No.4[10.1996 -] BXD20..SRF |
63144-65030 |
US $216.94 |
||
|
63149B
|
63149B
63104-65030 Reinforcement, Roof Panel, No.1 Rear[10.1996 -] BXD20..SRF |
63104-65030 |
US $398.94 |
||
|
63201A
|
63201A
63201-92605 Bracket, Roof Panel Reinforcement[10.1996 -] BXD20..SRF |
63201-92605 |
US $46.01 |
||
|
63203H
|
63203H
63203-65020 Housing Sub-Assy, Removable Roof[10.1996 -] BXD20..SRF |
63203-65020 |
US $409.14 |
||
|
63228E
|
63228E
63228-65010 Bracket, Roof Headlining, No.1[10.1996 -] BXD20..SRF W(SUN ROOF) |
63228-65010 |
US $20.09 |
||
|
63229C
|
63229C
63229-65020 Bracket, Roof Headlining, No.2[10.1996 -] BXD20..SRF |
63229-65020 |
US $10.05 |
||
|
63248D
|
63248D
63248-65010 Support, Removable Roof Housing, Rh[10.1996 -] BXD20..SRF |
63248-65010 |
US $94.64 |
||
|
63249S
|
63249S
63249-65040 Support, Removable Roof Housing, Lh[10.1996 -] BXD20..SRF |
63249-65040 |
US $94.64 |
||
|
63383E
|
63383E
63383-42010 Retainer, Roof Headlining Trim, Rear Rh[10.1996 -] BXD20..SRF |
63383-42010 |
US $11.94 |
||
|
63384D
|
63384D
63384-42010 Retainer, Roof Headlining Trim, Rear Lh[10.1996 -] BXD20..SRF |
63384-42010 |
US $11.94 |
||
|
9011906557
|
9011906557
90119-06557 New Genuine Part |
90119-06557 |
US $0.87 |
||
|
9095001832
|
9095001832
90950-01832 Sub-Sheet, Front Door Service Hole |
90950-01832 |
from US $1.97 |
||
|
9331326016
|
9331326016
93313-26016 New Genuine Part |
93313-26016 |
US $1.46 |
||
