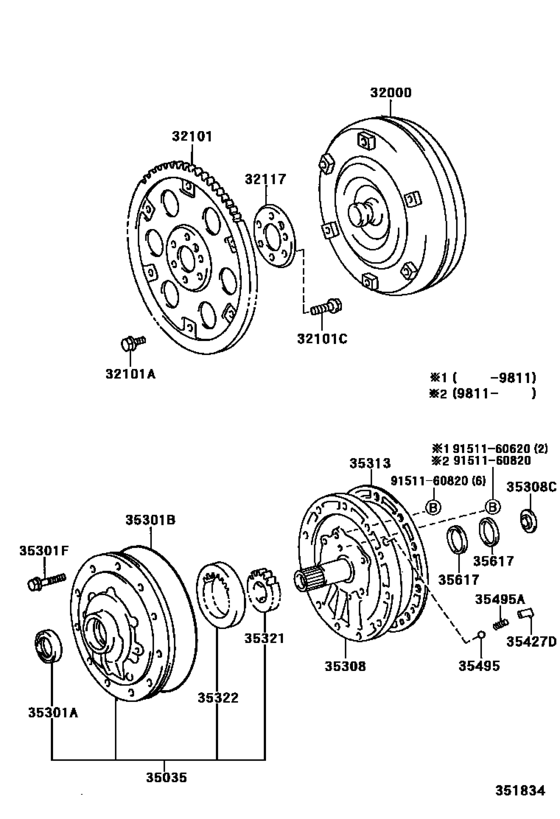

Torque Converter, Front Oil Pump & Chain (Atm) ([10.1996 - ] A443F (9610- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- SRF
- ENGINE
- 15BFT
- From
- 10.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32000
|
32000
32000-60060
Converter Assy, Torque
[10.1996 - 10.2001] BXD20 |
32000-60060 |
— | ||
| replacement | |||||
|
32000
|
32000
32000-65010
Converter Assy, Torque
[10.1996 - 10.2001] BXD20 |
32000-65010 |
— | ||
|
32101
|
32101
32101-65010
Gear Sub-Assy, Drive Plate & Ring
[10.1996 -] BXD20 |
32101-65010 |
— | ||
|
32101A
|
32101A
90105-10472 Bolt(For Drive Plate & Torque Converter Setting)[06.1999 -] BXD20 *10-1.25PX12.2-8.9,YELLOW |
90105-10472 |
US $2.18 |
||
|
32101A
|
32101A
90105-10473 Bolt(For Drive Plate & Torque Converter Setting)[06.1999 -] BXD20 *10-1.25PX12.2-8.9,BLUE |
90105-10473 |
US $2.18 |
||
|
32101A
|
32101A
90119-10789 Bolt(For Drive Plate & Torque Converter Setting)[10.1996 - 06.1999] BXD20 *10-1.25PX14-9,GREEN |
90119-10789 |
US $1.38 |
||
|
32101A
|
32101A
90119-10790
Bolt(For Drive Plate & Torque Converter Setting)
[10.1996 - 06.1999] BXD20 *10-1.25PX14-9,BLACK |
90119-10790 |
— | ||
| replacement | |||||
|
32101A
|
32101A
90119-10954 Bolt(For Drive Plate & Torque Converter Setting)[10.1996 - 06.1999] BXD20 *10-1.25PX14-9,BLACK |
90119-10954 |
US $1.38 |
||
|
32101C
|
32101C
90105-13011 Bolt, Hexagon(For Drive Plate Setting)[10.1996 -] BXD20 |
90105-13011 |
US $4.22 |
||
|
32117
|
32117
32117-36020
Spacer, Drive Plate, Rear
[10.1996 -] BXD20 |
32117-36020 |
— | ||
|
35035
|
35035
35035-60010 Body Sub-Assy, Fr Oil Pump & Gear[10.1996 - 01.1999] BXD20 |
35035-60010 |
US $467.84 |
||
|
35035
|
35035
35035-60011 Body Sub-Assy, Fr Oil Pump & Gear[01.1999 - 10.2001] BXD20 |
35035-60011 |
US $541.63 |
||
|
35301A
|
35301A
90311-42010 Seal, Oil (For Front Oil Pump)[10.1996 - 10.2001] BXD20 |
90311-42010 |
from US $7.16 |
||
|
35301B
|
35301B
90301-99029 Ring, O (For Front Oil Pump Body)[10.1996 - 10.2001] BXD20 |
90301-99029 |
from US $3.58 |
||
|
35301F
|
35301F
90105-08212 Bolt (For Front Oil Pump Setting)[10.1996 - 10.2001] BXD20 *8-1.25PX60-30 |
90105-08212 |
US $1.16 |
||
|
35301F
|
35301F
90105-08213 Bolt (For Front Oil Pump Setting)[10.1996 - 10.2001] BXD20 *8-1.25PX60-20 |
90105-08213 |
US $1.16 |
||
|
35308
|
35308
35308-60050 Cover Sub-Assy, Front Oil Pump[10.1996 - 01.1999] BXD20 |
35308-60050 |
US $679.95 |
||
|
35308
|
35308
35308-60051 Cover Sub-Assy, Front Oil Pump[01.1999 - 10.2001] BXD20 |
35308-60051 |
US $723.63 |
||
|
35308C
|
35308C
35789-36040 Race, Thrust Bearing (For Front Oil Pump Cover)[10.1996 - 10.2001] BXD20 T=0.8 |
35789-36040 |
US $6.99 |
||
|
35308C
|
35308C
35789-36050 Race, Thrust Bearing (For Front Oil Pump Cover)[10.1996 - 10.2001] BXD20 T=1.0 |
35789-36050 |
US $6.99 |
||
|
35308C
|
35308C
35789-36060 Race, Thrust Bearing (For Front Oil Pump Cover)[10.1996 - 10.2001] BXD20 T=1.4 |
35789-36060 |
US $8.04 |
||
|
35313
|
35313
35313-60010 Gasket, Front Oil Pump Cover[10.1996 - 10.2001] BXD20 |
35313-60010 |
from US $4.68 |
||
|
35321
|
35321
35321-60010
Gear, Front Oil Pump Drive
[10.1996 - 03.1998] BXD20 T=11.983-11.998 |
35321-60010 |
— | ||
| replacement | |||||
|
35321
|
35321
35321-60011 Gear, Front Oil Pump Drive[10.1996 - 03.1998] BXD20 T=11.983-11.998 |
35321-60011 |
US $69.36 |
||
|
35321
|
35321
35321-60011 Gear, Front Oil Pump Drive[03.1998 - 10.2001] BXD20 T=11.948-11.962 |
35321-60011 |
US $69.36 |
||
|
35321
|
35321
35321-60020
Gear, Front Oil Pump Drive
[10.1996 - 03.1998] BXD20 T=11.967-11.982 |
35321-60020 |
— | ||
| replacement | |||||
|
35321
|
35321
35321-60021
Gear, Front Oil Pump Drive
[10.1996 - 03.1998] BXD20 T=11.967-11.982 |
35321-60021 |
— | ||
|
35321
|
35321
35321-60021
Gear, Front Oil Pump Drive
[03.1998 - 10.2001] BXD20 T=11.963-11.977 |
35321-60021 |
— | ||
|
35321
|
35321
35321-60030
Gear, Front Oil Pump Drive
[10.1996 - 03.1998] BXD20 T=11.999-12.014 |
35321-60030 |
— | ||
| replacement | |||||
|
35321
|
35321
35321-60031 Gear, Front Oil Pump Drive[10.1996 - 03.1998] BXD20 T=11.999-12.014 |
35321-60031 |
US $69.36 |
||
|
35321
|
35321
35321-60031 Gear, Front Oil Pump Drive[03.1998 - 10.2001] BXD20 T=11.978-11.992 |
35321-60031 |
US $69.36 |
||
|
35321
|
35321
35321-60090 Gear, Front Oil Pump Drive[03.1998 - 10.2001] BXD20 T=11.993-12.007 |
35321-60090 |
US $71.34 |
||
|
35321
|
35321
35321-60100 Gear, Front Oil Pump Drive[03.1998 - 10.2001] BXD20 T=12.008-12.022 |
35321-60100 |
US $71.34 |
||
|
35322
|
35322
35322-60010
Gear, Front Oil Pump Driven
[10.1996 - 03.1998] BXD20 T=11.983-11.998 |
35322-60010 |
— | ||
| replacement | |||||
|
35322
|
35322
35322-60011 Gear, Front Oil Pump Driven[10.1996 - 03.1998] BXD20 T=11.983-11.998 |
35322-60011 |
US $44.55 |
||
|
35322
|
35322
35322-60011 Gear, Front Oil Pump Driven[03.1998 - 10.2001] BXD20 T=11.948-11.962 |
35322-60011 |
US $44.55 |
||
|
35322
|
35322
35322-60020
Gear, Front Oil Pump Driven
[10.1996 - 03.1998] BXD20 T=11.967-11.982 |
35322-60020 |
— | ||
| replacement | |||||
|
35322
|
35322
35322-60021 Gear, Front Oil Pump Driven[10.1996 - 03.1998] BXD20 T=11.967-11.982 |
35322-60021 |
US $44.55 |
||
|
35322
|
35322
35322-60021 Gear, Front Oil Pump Driven[03.1998 - 10.2001] BXD20 T=11.963-11.977 |
35322-60021 |
US $44.55 |
||
|
35322
|
35322
35322-60030
Gear, Front Oil Pump Driven
[10.1996 - 03.1998] BXD20 T=11.999-12.014 |
35322-60030 |
— | ||
| replacement | |||||
|
35322
|
35322
35322-60031
Gear, Front Oil Pump Driven
[10.1996 - 03.1998] BXD20 T=11.999-12.014 |
35322-60031 |
— | ||
|
35322
|
35322
35322-60031
Gear, Front Oil Pump Driven
[03.1998 - 10.2001] BXD20 T=11.978-11.992 |
35322-60031 |
— | ||
|
35322
|
35322
35322-60090 Gear, Front Oil Pump Driven[03.1998 - 10.2001] BXD20 T=11.993-12.007 |
35322-60090 |
US $45.57 |
||
|
35322
|
35322
35322-60100 Gear, Front Oil Pump Driven[03.1998 - 10.2001] BXD20 T=12.008-12.022 |
35322-60100 |
US $45.57 |
||
|
35427D
|
35427D
35427-36010 Seat, Check Valve Spring[10.1996 - 11.1998] BXD20 |
35427-36010 |
US $5.39 |
||
|
35427D
|
35427D
35427-60010 Seat, Check Valve Spring[11.1998 - 10.2001] BXD20 |
35427-60010 |
US $1.46 |
||
|
35495
|
35495
35495-36010 Ball, Check[10.1996 - 11.1998] BXD20 |
35495-36010 |
US $7.13 |
||
|
35495
|
35495
35495-60010 Ball, Check[11.1998 - 10.2001] BXD20 |
35495-60010 |
US $4.37 |
||
|
35495A
|
35495A
90501-18106 Spring, Compression (For Check Ball)[11.1998 - 10.2001] BXD20 |
90501-18106 |
US $1.31 |
||
|
35495A
|
35495A
90501-18677 Spring (For Pressure Relief)[10.1996 - 11.1998] BXD20 |
90501-18677 |
US $3.86 |
||
|
35617
|
35617
35617-60010 Ring, Clutch Drum Oil Seal[10.1996 - 10.2001] BXD20 |
35617-60010 |
US $16.77 |
||
|
9151160620
|
9151160620
91511-60620
Bolt(For Clutch Release Bearing Hub Retainer)
|
91511-60620 |
— | ||
| replacement | |||||
|
9151160620
|
9151160620
91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) |
91511-B0620 |
from US $0.68 |
||
|
9151160820
|
9151160820
91511-60820
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
91511-60820 |
— | ||
| replacement | |||||
|
9151160820
|
9151160820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.86 |
||
