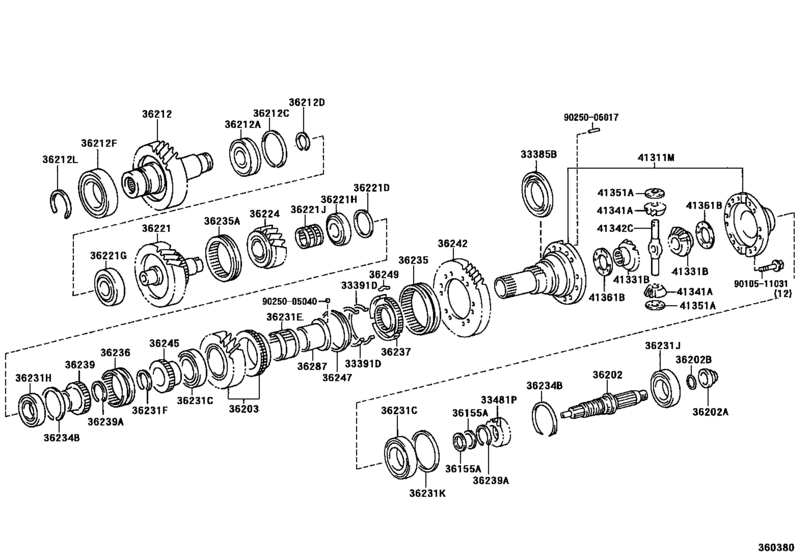

Transfer Gear ([01.1998 - ] (9801- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- SRF
- ENGINE
- 15BFT
- From
- 10.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33385B
|
33385B
33385-60030 Retainer, Shifting Key (For Transfer Front Drive Clutch)[10.1996 -] BXD20 |
33385-60030 |
US $4.89 |
||
|
33391D
|
33391D
33371-37030 Spring, Synchromesh Shifting Key, No.1[05.1999 -] BXD20 |
33371-37030 |
from US $4.12 |
||
|
33391D
|
33391D
33391-60010 Spring, Synchromesh Shifting Key, No.2[10.1996 - 05.1999] BXD20 |
33391-60010 |
from US $2.66 |
||
|
33481P
|
33481P
33481-65020 Gear, Speedometer Drive (For Transfer)[10.1996 -] BXD20 |
33481-65020 |
US $24.32 |
||
|
36155A
|
36155A
36155-60030 Ring, Transfer Oil Seal[10.1996 -] BXD20 |
36155-60030 |
from US $1.08 |
||
|
36202
|
36202
36202-65010 Shaft Sub-Assy, Transfer Output, Rear[10.1996 -] BXD20 |
36202-65010 |
US $282.46 |
||
|
36202A
|
36202A
90179-24011 Nut (For Manual Transmission Output Shaft Rear Set)[10.1996 -] BXD20 |
90179-24011 |
from US $2.89 |
||
|
36202B
|
36202B
90301-31003 Ring, O(For Manual Transmisson Output Shaft Rear Set Nut)[10.1996 -] BXD20 |
90301-31003 |
from US $3.17 |
||
|
36203
|
36203
36203-60081 Gear Sub-Assy, Transfer High Speed Output[10.1996 - 01.1998] BXD20 |
36203-60081 |
US $307.51 |
||
|
36203
|
36203
36203-60100 Gear Sub-Assy, Transfer High Speed Output[01.1998 -] BXD20 |
36203-60100 |
US $230.63 |
||
|
36212
|
36212
36212-60100 Gear, Transfer Input[10.1996 - 01.1998] BXD20 |
36212-60100 |
US $293.53 |
||
|
36212
|
36212
36212-60120 Gear, Transfer Input[01.1998 -] BXD20 |
36212-60120 |
from US $137.76 |
||
|
36212A
|
36212A
90363-35030 Bearing, Radial Ball (For Transfer Input Gear)[10.1996 -] BXD20 |
90363-35030 |
from US $42.84 |
||
|
36212C
|
36212C
90520-82001 Ring, Shaft Snap (For Transfer Input Gear)[10.1996 -] BXD20 T=1.65 |
90520-82001 |
US $3.76 |
||
|
36212D
|
36212D
90520-32005 Ring, Shaft Snap (For Transfer Input Bearing)[10.1996 -] BXD20 T=2.0,MARK A |
90520-32005 |
US $0.96 |
||
|
36212D
|
36212D
90520-32006 Ring, Shaft Snap (For Transfer Input Bearing)[10.1996 -] BXD20 T=2.1,MARK B |
90520-32006 |
US $0.96 |
||
|
36212D
|
36212D
90520-32007 Ring, Shaft Snap (For Transfer Input Bearing)[10.1996 -] BXD20 T=2.2,MARK C |
90520-32007 |
US $0.96 |
||
|
36212D
|
36212D
90520-32008 Ring, Shaft Snap (For Transfer Input Bearing)[10.1996 -] BXD20 T=2.3,MARK D |
90520-32008 |
US $0.96 |
||
|
36212D
|
36212D
90520-32009 Ring, Shaft Snap (For Transfer Input Bearing)[10.1996 -] BXD20 T=2.4,MARK E |
90520-32009 |
US $1.65 |
||
|
36212F
|
36212F
90363-50003 Bearing, Radial Ball (For Transfer Input Shaft Front)[10.1996 -] BXD20 |
90363-50003 |
from US $21.98 |
||
|
36212L
|
36212L
90520-46004 Ring, Shaft Snap (For Clutch Hub No.1)[01.1998 -] BXD20 T=2.90-2.95,MARK A |
90520-46004 |
from US $1.65 |
||
|
36212L
|
36212L
90520-46005 Ring, Shaft Snap (For Clutch Hub No.1)[01.1998 -] BXD20 T=2.95-3.00,MARK B |
90520-46005 |
US $1.14 |
||
|
36212L
|
36212L
90520-46006 Ring, Shaft Snap (For Clutch Hub No.1)[01.1998 -] BXD20 T=3.00-3.05,MARK C |
90520-46006 |
US $1.65 |
||
|
36212L
|
36212L
90520-46007 Ring, Shaft Snap (For Clutch Hub No.1)[01.1998 -] BXD20 T=3.05-3.10,MARK D |
90520-46007 |
US $1.14 |
||
|
36212L
|
36212L
90520-46008 Ring, Shaft Snap (For Clutch Hub No.1)[01.1998 -] BXD20 T=3.10-3.15,MARK E |
90520-46008 |
US $1.14 |
||
|
36212L
|
36212L
90520-46009 Ring, Shaft Snap (For Clutch Hub No.1)[01.1998 -] BXD20 T=3.15-3.20,MARK F |
90520-46009 |
US $1.14 |
||
|
36221
|
36221
36221-60121 Gear, Transfer Idler[10.1996 - 01.1998] BXD20 |
36221-60121 |
US $643.55 |
||
|
36221
|
36221
36221-60140 Gear, Transfer Idler[01.1998 -] BXD20 |
36221-60140 |
US $475.24 |
||
|
36221D
|
36221D
90201-57002 Washer, Plate(For Transfer Idler Gear)[10.1996 -] BXD20 T=0.29-0.31,MARK 2 |
90201-57002 |
US $6.12 |
||
|
36221D
|
36221D
90201-57003 Washer, Plate(For Transfer Idler Gear)[10.1996 -] BXD20 T=0.44-0.46,MARK 3 |
90201-57003 |
US $6.12 |
||
|
36221D
|
36221D
90201-57004 Washer, Plate(For Transfer Idler Gear)[10.1996 -] BXD20 T=2.39-2.41,MARK 4 |
90201-57004 |
US $6.12 |
||
|
36221D
|
36221D
90201-57005 Washer, Plate(For Transfer Idler Gear)[10.1996 -] BXD20 T=2.59-2.61,MARK 5 |
90201-57005 |
US $5.59 |
||
|
36221D
|
36221D
90201-57006 Washer, Plate(For Transfer Idler Gear)[10.1996 -] BXD20 T=2.79-2.81,MARK 6 |
90201-57006 |
US $5.68 |
||
|
36221D
|
36221D
90201-57007 Washer, Plate(For Transfer Idler Gear)[10.1996 -] BXD20 T=2.99-3.01,MARK 7 |
90201-57007 |
US $6.12 |
||
|
36221D
|
36221D
90201-57008 Washer, Plate(For Transfer Idler Gear)[10.1996 -] BXD20 T=3.19-3.21,MARK 8 |
90201-57008 |
US $5.59 |
||
|
36221D
|
36221D
90201-57009 Washer, Plate(For Transfer Idler Gear)[10.1996 -] BXD20 T=3.39-3.41,MARK 9 |
90201-57009 |
US $7.71 |
||
|
36221D
|
36221D
90201-57010 Washer, Plate(For Transfer Idler Gear)[10.1996 -] BXD20 T=3.59-3.61,MARK 10 |
90201-57010 |
US $5.68 |
||
|
36221D
|
36221D
90201-57011 Washer, Plate(For Transfer Idler Gear)[10.1996 -] BXD20 T=3.79-3.81,MARK 11 |
90201-57011 |
US $5.68 |
||
|
36221D
|
36221D
90201-57012 Washer, Plate(For Transfer Idler Gear)[10.1996 -] BXD20 T=3.99-4.01,MARK 12 |
90201-57012 |
US $5.68 |
||
|
36221D
|
36221D
90201-57013 Washer, Plate(For Transfer Idler Gear)[10.1996 -] BXD20 T=0.55,MARK 13 |
90201-57013 |
US $5.68 |
||
|
36221G
|
36221G
90366-35060 Bearing (For Transfer Ilder Gear), Front[10.1996 -] BXD20 |
90366-35060 |
from US $45.02 |
||
|
36221H
|
36221H
90366-33002 Bearing (For Transfer Ilder Gear), Rear[10.1996 -] BXD20 |
90366-33002 |
from US $32.09 |
||
|
36221J
|
36221J
90364-38016 Bearing (For Transfer Idler Gear Lower)[10.1996 -] BXD20 |
90364-38016 |
from US $23.45 |
||
|
36224
|
36224
36224-60011 Gear, Transfer Idler Lower[10.1996 - 01.1998] BXD20 |
36224-60011 |
US $99.01 |
||
| replacement | |||||
|
36224
|
36224
36224-60020 Gear, Transfer Idler Lower[10.1996 - 01.1998] BXD20 |
36224-60020 |
US $59.11 |
||
|
36224
|
36224
36224-60020 Gear, Transfer Idler Lower[01.1998 -] BXD20 |
36224-60020 |
US $59.11 |
||
|
36231C
|
36231C
90366-48001 Bearing, Taper Roller (For Transfer Output Shaft)[10.1996 -] BXD20 FR |
90366-48001 |
from US $43.18 |
||
|
36231C
|
36231C
90366-60008 Bearing, Taper Roller (For Transfer Output Shaft)[10.1996 -] BXD20 RR |
90366-60008 |
from US $39.14 |
||
|
36231E
|
36231E
90364-56001 Bearing, Needle Roller (For Transfer Output Shaft Front)[10.1996 -] BXD20 |
90364-56001 |
from US $16.07 |
||
|
36231F
|
36231F
90520-44022 Ring, Shaft Snap (For Transfer Input Gear Stopper)[10.1996 -] BXD20 T=2.0,MARK A |
90520-44022 |
US $2.87 |
||
|
36231F
|
36231F
90520-44023 Ring, Shaft Snap (For Transfer Input Gear Stopper)[10.1996 -] BXD20 T=2.1,MARK B |
90520-44023 |
US $2.87 |
||
|
36231F
|
36231F
90520-44024 Ring, Shaft Snap (For Transfer Input Gear Stopper)[10.1996 -] BXD20 T=2.2,MARK C |
90520-44024 |
US $1.31 |
||
|
36231F
|
36231F
90520-44025 Ring, Shaft Snap (For Transfer Input Gear Stopper)[10.1996 -] BXD20 T=2.3,MARK D |
90520-44025 |
US $2.18 |
||
|
36231F
|
36231F
90520-44026 Ring, Shaft Snap (For Transfer Input Gear Stopper)[10.1996 -] BXD20 T=2.4,MARK E |
90520-44026 |
US $3.05 |
||
|
36231F
|
36231F
90520-44027 Ring, Shaft Snap (For Transfer Input Gear Stopper)[10.1996 -] BXD20 T=2.5,MARK F |
90520-44027 |
US $3.05 |
||
|
36231F
|
36231F
90520-44028 Ring, Shaft Snap (For Transfer Input Gear Stopper)[10.1996 -] BXD20 T=2.6,MARK G |
90520-44028 |
US $1.31 |
||
|
36231F
|
36231F
90520-44029 Ring, Shaft Snap (For Transfer Input Gear Stopper)[10.1996 -] BXD20 T=2.7,MARK H |
90520-44029 |
US $1.31 |
||
|
36231F
|
36231F
90520-44030 Ring, Shaft Snap (For Transfer Input Gear Stopper)[10.1996 -] BXD20 T=2.8,MARK J |
90520-44030 |
US $1.31 |
||
|
36231F
|
36231F
90520-44031 Ring, Shaft Snap (For Transfer Output Shaft)[10.1996 -] BXD20 T=1.80,MARK A |
90520-44031 |
US $1.89 |
||
|
36231F
|
36231F
90520-44032 Ring, Shaft Snap (For Transfer Output Shaft)[10.1996 -] BXD20 T=1.95,MARK B |
90520-44032 |
US $2.04 |
||
|
36231H
|
36231H
90363-40044
Bearing, Radial Ball (For Transfer Output Shaft Front)
[10.1996 -] BXD20 |
90363-40044 |
— | ||
| replacement | |||||
|
36231H
|
36231H
90363-40083 Bearing, Radial Ball (For Transfer Output Shaft Front)[10.1996 -] BXD20 |
90363-40083 |
from US $16.95 |
||
|
36231J
|
36231J
90363-38005 Bearing, Radial Ball (For Transfer Output Shaft Rear)[10.1996 -] BXD20 |
90363-38005 |
US $29.57 |
||
|
36231K
|
36231K
90201-82011 Washer, Plate(For Transfer Output Rear Case)[10.1996 -] BXD20 T=2.39-2.41,MARK L |
90201-82011 |
US $2.77 |
||
|
36231K
|
36231K
90201-82012 Washer, Plate(For Transfer Output Rear Case)[10.1996 -] BXD20 T=2.59-2.61,MARK M |
90201-82012 |
US $2.77 |
||
|
36231K
|
36231K
90201-82014 Washer, Plate(For Transfer Output Rear Case)[10.1996 -] BXD20 T=0.27-0.33,MARK B |
90201-82014 |
US $0.70 |
||
|
36231K
|
36231K
90201-82015 Washer, Plate(For Transfer Output Rear Case)[10.1996 -] BXD20 T=0.415-0.485,MARK C |
90201-82015 |
US $0.96 |
||
|
36231K
|
36231K
90201-82016 Washer, Plate(For Transfer Output Rear Case)[10.1996 -] BXD20 T=0.99-1.01,MARK D |
90201-82016 |
US $1.14 |
||
|
36231K
|
36231K
90201-82017 Washer, Plate(For Transfer Output Rear Case)[10.1996 -] BXD20 T=1.19-1.21,MARK E |
90201-82017 |
US $2.04 |
||
|
36231K
|
36231K
90201-82018 Washer, Plate(For Transfer Output Rear Case)[10.1996 -] BXD20 T=1.39-1.41,MARK F |
90201-82018 |
US $1.40 |
||
|
36231K
|
36231K
90201-82019 Washer, Plate(For Transfer Output Rear Case)[10.1996 -] BXD20 T=1.59-1.61,MARK G |
90201-82019 |
US $2.62 |
||
|
36231K
|
36231K
90201-82020 Washer, Plate(For Transfer Output Rear Case)[10.1996 -] BXD20 T=1.79-1.81,MARK H |
90201-82020 |
US $2.48 |
||
|
36231K
|
36231K
90201-82021 Washer, Plate(For Transfer Output Rear Case)[10.1996 -] BXD20 T=1.99-2.01,MARK J |
90201-82021 |
US $2.62 |
||
|
36231K
|
36231K
90201-82022 Washer, Plate(For Transfer Output Rear Case)[10.1996 -] BXD20 T=2.19-2.21,MARK K |
90201-82022 |
US $2.62 |
||
|
36231K
|
36231K
90201-82023 Washer, Plate(For Transfer Output Rear Case)[10.1996 -] BXD20 T=0.55,MARK N |
90201-82023 |
US $1.16 |
||
|
36234B
|
36234B
90520-73001 Ring, Snap (For Transfer Output Front Shaft Bearing)[10.1996 -] BXD20 T=1.7,MARK A,OD=76 |
90520-73001 |
US $2.48 |
||
|
36234B
|
36234B
90520-73002 Ring, Snap (For Transfer Output Front Shaft Bearing)[10.1996 -] BXD20 T=1.8,MARK B,OD=76 |
90520-73002 |
US $3.58 |
||
|
36234B
|
36234B
90521-84002 Ring, Snap (For Transfer Output Front Shaft Bearing)[10.1996 -] BXD20 T=1.7,MARK A |
90521-84002 |
US $3.05 |
||
|
36234B
|
36234B
90521-84003 Ring, Snap (For Transfer Output Front Shaft Bearing)[10.1996 -] BXD20 T=1.8,MARK B |
90521-84003 |
US $1.40 |
||
|
36235
|
36235
36235-60040 Sleeve, Transfer High & Low Clutch[10.1996 -] BXD20 |
36235-60040 |
from US $41.50 |
||
|
36235A
|
36235A
36235-60050 Sleeve (For Transfer Idler Gear)[10.1996 -] BXD20 |
36235-60050 |
US $22.13 |
||
|
36236
|
36236
36236-60060 Sleeve, Front Drive Clutch[10.1996 -] BXD20 |
36236-60060 |
US $20.44 |
||
|
36237
|
36237
36237-60040 Hub, Transfer Clutch[10.1996 -] BXD20 |
36237-60040 |
US $43.18 |
||
|
36239
|
36239
36239-60010 Hub, Transfer Drive Clutch[10.1996 -] BXD20 |
36239-60010 |
US $21.67 |
||
|
36239A
|
36239A
90520-36019 Ring, Shaft Snap(For Transfer Drive Clutch Hub)[10.1996 -] BXD20 T=1.8,MARK A |
90520-36019 |
US $0.96 |
||
|
36239A
|
36239A
90520-36020 Ring, Shaft Snap(For Transfer Drive Clutch Hub)[10.1996 -] BXD20 T=1.9,MARK B |
90520-36020 |
US $0.96 |
||
|
36239A
|
36239A
90520-36021 Ring, Shaft Snap(For Transfer Drive Clutch Hub)[10.1996 -] BXD20 T=2.0,MARK C |
90520-36021 |
US $2.33 |
||
|
36239A
|
36239A
90520-36022 Ring, Shaft Snap(For Transfer Drive Clutch Hub)[10.1996 -] BXD20 T=2.1,MARK D |
90520-36022 |
US $1.75 |
||
|
36239A
|
36239A
90520-36023 Ring, Shaft Snap(For Transfer Drive Clutch Hub)[10.1996 -] BXD20 T=2.2,MARK E |
90520-36023 |
US $1.75 |
||
|
36239A
|
36239A
90520-40009 Ring, Shaft Snap(For Transfer Drive Clutch Hub)[10.1996 -] BXD20 T=1.5 |
90520-40009 |
US $1.31 |
||
|
36242
|
36242
36242-60150 Gear, Transfer Low[10.1996 - 01.1998] BXD20 |
36242-60150 |
US $230.05 |
||
| replacement | |||||
|
36242
|
36242
36242-60170 Gear, Transfer Low[10.1996 - 01.1998] BXD20 |
36242-60170 |
US $92.60 |
||
|
36242
|
36242
36242-60170 Gear, Transfer Low[01.1998 -] BXD20 |
36242-60170 |
US $92.60 |
||
|
36245
|
36245
36245-60040 Piece, Transfer Front Drive Gear[10.1996 -] BXD20 |
36245-60040 |
US $52.85 |
||
|
36247
|
36247
36247-60011 Ring, Transfer Synchronizer[10.1996 -] BXD20 |
36247-60011 |
US $29.57 |
||
|
36249
|
36249
36249-60010 Key, Synchromesh Shifting, Transfer Drive, No.2[10.1996 -] BXD20 |
36249-60010 |
US $2.15 |
||
|
36287
|
36287
36287-60011 Bush, Transfer High Speed Output Gear[10.1996 -] BXD20 |
36287-60011 |
US $26.91 |
||
|
41311M
|
41311M
41301-60032 Case, Center Differential[10.1996 -] BXD20 |
41301-60032 |
US $284.79 |
||
|
41331B
|
41331B
41331-60031 Gear, Center Differential Side[10.1996 -] BXD20 |
41331-60031 |
from US $58.97 |
||
|
41341A
|
41341A
41341-30011 Pinion, Rear Differential[10.1996 -] BXD20 |
41341-30011 |
from US $36.29 |
||
| replacement | |||||
|
41341A
|
41341A
41039-28010 Gear Kit, Differential, Rear[10.1996 -] BXD20 |
41039-28010 |
US $251.60 |
||
|
41342C
|
41342C
41342-60030 Shaft, Center Differential Pinion[10.1996 -] BXD20 |
41342-60030 |
from US $22.48 |
||
|
41351A
|
41351A
41351-60020 Washer, Center Differential Pinion Trust[10.1996 -] BXD20 |
41351-60020 |
from US $1.65 |
||
|
41361B
|
41361B
41361-60190 Washer, Center Differential Side Gear Thrust, No.1[10.1996 -] BXD20 T=1.7 |
41361-60190 |
US $4.95 |
||
| replacement | |||||
|
41361B
|
41361B
41361-60G00 Washer, Center Differential Side Gear Thrust, No.1[10.1996 -] BXD20 T=1.7 |
41361-60G00 |
US $5.37 |
||
|
41361B
|
41361B
41361-60200 Washer, Center Differential Side Gear Thrust, No.1[10.1996 -] BXD20 T=1.85 |
41361-60200 |
US $5.24 |
||
| replacement | |||||
|
41361B
|
41361B
41361-60G20 Washer, Center Differential Side Gear Thrust, No.1[10.1996 -] BXD20 T=1.85 |
41361-60G20 |
US $5.36 |
||
|
41361B
|
41361B
41361-60210 Washer, Center Differential Side Gear Thrust, No.1[10.1996 -] BXD20 T=2 |
41361-60210 |
US $5.82 |
||
| replacement | |||||
|
41361B
|
41361B
41361-60G40 Washer, Center Differential Side Gear Thrust, No.1[10.1996 -] BXD20 T=2 |
41361-60G40 |
US $5.59 |
||
|
41361B
|
41361B
41361-60220 Washer, Center Differential Side Gear Thrust, No.1[10.1996 -] BXD20 T=2.15 |
41361-60220 |
US $5.82 |
||
| replacement | |||||
|
41361B
|
41361B
41361-60G60 Washer, Center Differential Side Gear Thrust, No.1[10.1996 -] BXD20 T=2.15 |
41361-60G60 |
US $6.12 |
||
|
41361B
|
41361B
41361-60230 Washer, Center Differential Side Gear Thrust, No.1[10.1996 -] BXD20 T=2.3 |
41361-60230 |
US $5.82 |
||
| replacement | |||||
|
41361B
|
41361B
41361-60G80 Washer, Center Differential Side Gear Thrust, No.1[10.1996 -] BXD20 T=2.3 |
41361-60G80 |
from US $5.78 |
||
|
41361B
|
41361B
41361-60240 Washer, Center Differential Side Gear Thrust, No.1[10.1996 -] BXD20 T=2.45 |
41361-60240 |
US $5.82 |
||
| replacement | |||||
|
41361B
|
41361B
41361-60J00 Washer, Center Differential Side Gear Thrust, No.1[10.1996 -] BXD20 T=2.45 |
41361-60J00 |
from US $5.37 |
||
|
41361B
|
41361B
41361-60250 Washer, Center Differential Side Gear Thrust, No.1[10.1996 -] BXD20 T=2.6 |
41361-60250 |
US $5.82 |
||
| replacement | |||||
|
41361B
|
41361B
41361-60J20 Washer, Center Differential Side Gear Thrust, No.1[10.1996 -] BXD20 T=2.6 |
41361-60J20 |
US $5.37 |
||
|
41361B
|
41361B
41361-60260 Washer, Center Differential Side Gear Thrust, No.1[10.1996 -] BXD20 T=2.75 |
41361-60260 |
US $5.82 |
||
| replacement | |||||
|
41361B
|
41361B
41361-60J40 Washer, Center Differential Side Gear Thrust, No.1[10.1996 -] BXD20 T=2.75 |
41361-60J40 |
from US $5.72 |
||
|
41361B
|
41361B
41361-60270 Washer, Center Differential Side Gear Thrust, No.1[10.1996 -] BXD20 T=2.9 |
41361-60270 |
US $6.26 |
||
| replacement | |||||
|
41361B
|
41361B
41361-60J60 Washer, Center Differential Side Gear Thrust, No.1[10.1996 -] BXD20 T=2.9 |
41361-60J60 |
from US $5.77 |
||
|
41361B
|
41361B
41361-60280 Washer, Center Differential Side Gear Thrust, No.1[10.1996 -] BXD20 T=3.05 |
41361-60280 |
US $6.41 |
||
| replacement | |||||
|
41361B
|
41361B
41361-60J80 Washer, Center Differential Side Gear Thrust, No.1[10.1996 -] BXD20 T=3.05 |
41361-60J80 |
from US $5.68 |
||
|
9010511031
|
9010511031
90105-11031 BOLT WASHER BASED |
90105-11031 |
US $2.33 |
||
|
9025005040
|
9025005040
90250-05040 New Genuine Part |
90250-05040 |
US $0.61 |
||
|
9025006017
|
9025006017
90250-06017 PIN STRAIGHT |
90250-06017 |
US $0.96 |
||
