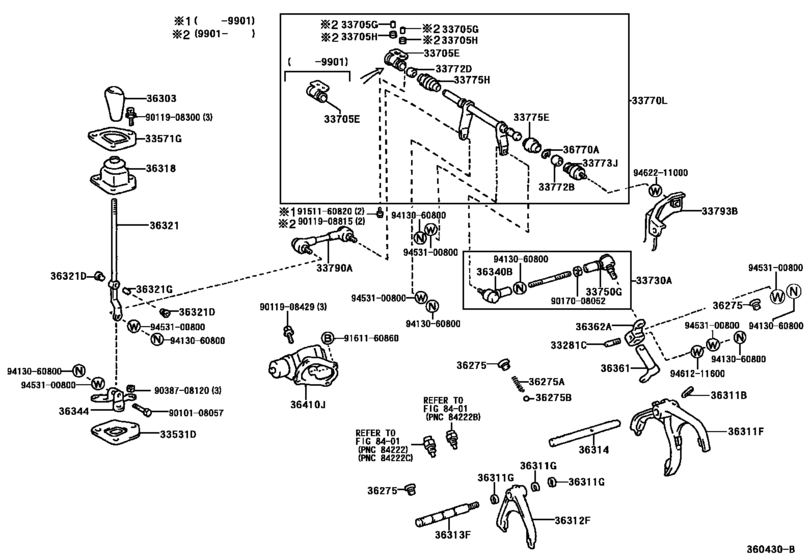

Transfer Lever & Shift Rod ([10.1996 - ] (9610- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- SRF
- ENGINE
- 15BFT
- From
- 10.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33281C
|
33281C
33281-16020 Pin, Lever Lock (For Shift Outer Lever)[10.1996 -] BXD20 |
33281-16020 |
from US $1.31 |
||
|
33531D
|
33531D
33531-65010
Boot, Dust (For Differential Lock Shift Fork Shaft)
[10.1996 -] BXD20 |
33531-65010 |
— | ||
|
33571G
|
33571G
33571-65010 Bracket, Control Shaft, Lwr[10.1996 -] BXD20 |
33571-65010 |
US $8.04 |
||
|
33705E
|
33705E
33705-65010
Support Sub-Assy, Cross Shaft
[10.1996 - 01.1999] BXD20 |
33705-65010 |
— | ||
| replacements | |||||
|
33705E
|
33705E
33705-65020 Support Sub-Assy, Cross Shaft[10.1996 - 01.1999] BXD20 |
33705-65020 |
US $21.84 |
||
|
33705E
|
33705E
90119-08815 Bolt[10.1996 - 01.1999] BXD20 |
90119-08815 |
US $2.69 |
||
|
33705E
|
33705E
90387-09034 Collar (For Cross Shaft Support)[10.1996 - 01.1999] BXD20 |
90387-09034 |
US $1.24 |
||
|
33705E
|
33705E
90480-17024 Grommet (For Cross Shaft Support)[10.1996 - 01.1999] BXD20 |
90480-17024 |
US $1.05 |
||
|
33705E
|
33705E
33705-65020 Support Sub-Assy, Cross Shaft[01.1999 -] BXD20 |
33705-65020 |
US $21.84 |
||
|
33705G
|
33705G
90387-09034 Collar (For Cross Shaft Support)[11.1998 -] BXD20 |
90387-09034 |
US $1.24 |
||
|
33705H
|
33705H
90480-17024 Grommet (For Cross Shaft Support)[11.1998 -] BXD20 |
90480-17024 |
US $1.05 |
||
|
33730A
|
33730A
33730-65010 Rod Assy, Gear Shifting, No.2[10.1996 -] BXD20 |
33730-65010 |
US $47.61 |
||
|
33750G
|
33750G
33750-26010 End, Connecting Rod, No.2 (For Column Shift)[10.1996 -] BXD20 |
33750-26010 |
from US $11.28 |
||
|
33770L
|
33770L
33770-65010
Shaft Assy, Cross
[10.1996 - 01.1999] BXD20 |
33770-65010 |
— | ||
| replacements | |||||
|
33770L
|
33770L
33770-65020 Shaft Assy, Cross[10.1996 - 01.1999] BXD20 |
33770-65020 |
US $64.47 |
||
|
33770L
|
33770L
90119-08815 Bolt[10.1996 - 01.1999] BXD20 |
90119-08815 |
US $2.69 |
||
|
33770L
|
33770L
33770-65020 Shaft Assy, Cross[01.1999 -] BXD20 |
33770-65020 |
US $64.47 |
||
|
33772B
|
33772B
33772-26010 Bush (For Cross Shaft)[10.1996 -] BXD20 |
33772-26010 |
from US $1.16 |
||
|
33772D
|
33772D
33772-35011 Bush, No.1, Cross Shaft Support (For Column Shift)[10.1996 -] BXD20 |
33772-35011 |
US $2.61 |
||
|
33773J
|
33773J
33773-20020 Support, Cross Shaft, No.1 (For Colum Shift)[10.1996 -] BXD20 |
33773-20020 |
US $9.61 |
||
|
33775E
|
33775E
33775-20020 Cover, Cross Shaft Dust (For Column Shift)[10.1996 -] BXD20 |
33775-20020 |
US $3.76 |
||
|
33775H
|
33775H
33775-35010 Cover, Cross Shaft Dust (For Column Shift)[10.1996 -] BXD20 |
33775-35010 |
US $7.16 |
||
|
33790A
|
33790A
33790-36560 Rod Assy, Gear Selecting, No.2[10.1996 -] BXD20 |
33790-36560 |
US $30.05 |
||
|
33793B
|
33793B
33793-65010
Bracket, Cross Shaft, No.2
[10.1996 -] BXD20 |
33793-65010 |
— | ||
|
36275
|
36275
90341-12008 Plug, W/head Straight Screw(For Transfer Adapter)[10.1996 -] BXD20 |
90341-12008 |
from US $3.25 |
||
|
36275A
|
36275A
90501-18093 Spring, Compression (For Shift Detent Ball)[10.1996 -] BXD20 L=23.8 |
90501-18093 |
US $1.97 |
||
|
36275B
|
36275B
90360-10003 Ball(For Transmission Oil Pump Cover)[10.1996 -] BXD20 OD=9.52,STEEL |
90360-10003 |
from US $1.16 |
||
|
36303
|
36303
36303-60180-C0 Knob Sub-Assy, Shift Lever[10.1996 -] BXD20 BLACK,TRIM1# |
36303-60180-C0 |
US $27.78 |
||
|
36311B
|
36311B
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[10.1996 -] BXD20 L=25.5 |
90254-05016 |
from US $1.90 |
||
|
36311F
|
36311F
36311-60080
Fork, Transfer Gear Shift, No.1
[10.1996 - 01.1998] BXD20 |
36311-60080 |
— | ||
| replacement | |||||
|
36311F
|
36311F
36311-60120 Fork, Transfer Gear Shift, No.1[10.1996 - 01.1998] BXD20 |
36311-60120 |
US $49.80 |
||
|
36311F
|
36311F
36311-60120 Fork, Transfer Gear Shift, No.1[01.1998 -] BXD20 |
36311-60120 |
US $49.80 |
||
|
36311G
|
36311G
90520-13004 Ring, Shaft Snap (For Transfer Gear Shift Fork)[10.1996 -] BXD20 |
90520-13004 |
from US $0.96 |
||
|
36312F
|
36312F
36312-60050 Fork, Transfer Gear Shift, No.2[10.1996 -] BXD20 |
36312-60050 |
US $26.73 |
||
|
36313F
|
36313F
36313-60100 Shaft, Transfer Front Drive Shift Fork[10.1996 -] BXD20 |
36313-60100 |
US $17.47 |
||
|
36314
|
36314
36314-60050 Shaft, Transfer High And Low Shift Fork[10.1996 -] BXD20 |
36314-60050 |
US $16.25 |
||
|
36318
|
36318
33555-65020
Boot, Transfer Front Drive Shift
[10.1996 -] BXD20 |
33555-65020 |
— | ||
|
36321
|
36321
36321-65020 Lever, Transfer Front Drive Shift[10.1996 -] BXD20 |
36321-65020 |
US $13.10 |
||
|
36321D
|
36321D
90385-11006 Bush(For Shift Lever)[10.1996 -] BXD20 |
90385-11006 |
US $1.24 |
||
|
36321G
|
36321G
90387-08069 Coller (For Transfer Shift Lever)[10.1996 -] BXD20 |
90387-08069 |
US $0.96 |
||
|
36340B
|
36340B
33740-26020 End Assy, Connecting Rod, No.1(For Column Shift)[10.1996 -] BXD20 |
33740-26020 |
from US $11.18 |
||
|
36344
|
36344
36344-65010 Retainer, Transfer Control Shift Lever[10.1996 -] BXD20 |
36344-65010 |
US $5.42 |
||
|
36361
|
36361
36361-60030 Lever, Transfer Shift, Inner[10.1996 -] BXD20 |
36361-60030 |
US $12.93 |
||
|
36362A
|
36362A
36362-60030 Lever, Transfer Shift, Outer[10.1996 -] BXD20 |
36362-60030 |
US $13.98 |
||
|
36410J
|
36410J
36410-65010 Actuator Assy, Transfer Shift[10.1996 - 06.1999] BXD20 |
36410-65010 |
US $662.48 |
||
|
36410J
|
36410J
36410-65020 Actuator Assy, Transfer Shift[06.1999 - 03.2001] BXD20 |
36410-65020 |
US $522.70 |
||
| replacement | |||||
|
36410J
|
36410J
36410-65021 Actuator Assy, Transfer Shift[06.1999 - 03.2001] BXD20 |
36410-65021 |
US $380.64 |
||
|
36410J
|
36410J
36410-65021 Actuator Assy, Transfer Shift[03.2001 -] BXD20 |
36410-65021 |
US $380.64 |
||
|
36770A
|
36770A
96151-01600
Ring, Snap
[10.1996 -] BXD20 |
96151-01600 |
— | ||
|
9010108057
|
9010108057
90101-08057 BOLT |
90101-08057 |
US $1.43 |
||
|
9011908300
|
9011908300
90119-08300 New Genuine Part |
90119-08300 |
from US $2.15 |
||
|
9011908429
|
9011908429
90119-08429 Bolt, W/washer(For Transmission Case Cover) |
90119-08429 |
US $1.97 |
||
|
9011908815
|
9011908815
90119-08815 Bolt |
90119-08815 |
US $2.69 |
||
|
9017008052
|
9017008052
90170-08052 Nut, Hexagon (For Column Shift Selecting Or Shifting Rod) |
90170-08052 |
US $0.87 |
||
|
9038708120
|
9038708120
90387-08120
Collar
|
90387-08120 |
— | ||
|
9151160820
|
9151160820
91511-60820
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
91511-60820 |
— | ||
| replacement | |||||
|
9151160820
|
9151160820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.89 |
||
|
9161160860
|
9161160860
91611-60860 Bolt(For Rocker Support Set) |
91611-60860 |
US $1.79 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.67 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $0.84 |
||
|
9461211600
|
9461211600
94612-11600 Washer, Shift Lever Shaft Housing, No.2 |
94612-11600 |
US $1.97 |
||
|
9462211000
|
9462211000
94622-11000 WASHER |
94622-11000 |
from US $1.37 |
||
