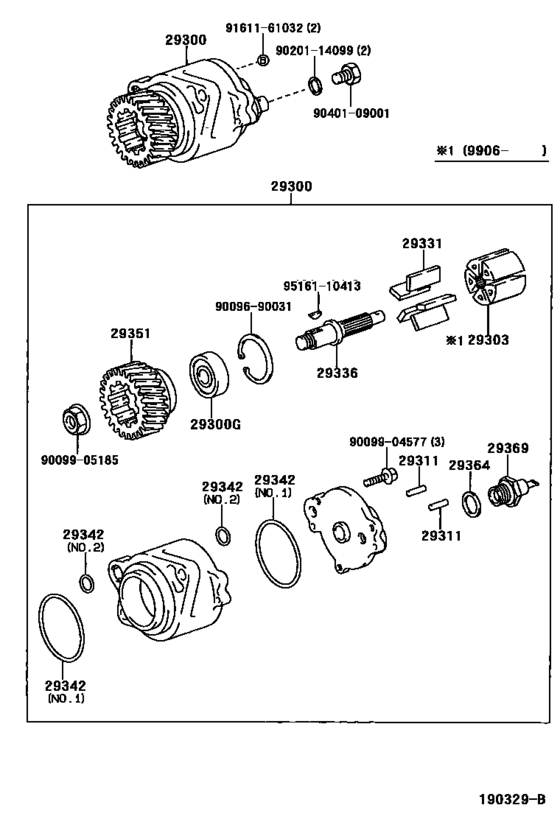

Vacuum Pump ([10.1996 - ] (9610- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 2001
- Sales region
- General
- Frame
- BXD20
- Roof
- SRF
- ENGINE
- 15BFT
- From
- 10.1996
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
29300
|
29300
29300-58050
Pump Assy, Vacuum
[10.1996 - 06.1999] 15BFT..BXD20 |
29300-58050 |
— | ||
| replacement | |||||
|
29300
|
29300
29300-58060 Pump Assy, Vacuum[10.1996 - 06.1999] 15BFT..BXD20 |
29300-58060 |
US $444.08 |
||
|
29300
|
29300
29300-58060 Pump Assy, Vacuum[06.1999 -] 15BFT..BXD20 |
29300-58060 |
US $444.08 |
||
|
29300G
|
29300G
90099-10185 Bearing, Ball[10.1996 -] 15BFT..BXD20 |
90099-10185 |
US $7.69 |
||
|
29303
|
29303
29337-27010
Rotor Sub-Assy, Vacuum Pump
[06.1999 -] 15BFT..BXD20 |
29337-27010 |
— | ||
|
29311
|
29311
29311-76010 Pin, Vacuum Pump Dowel, No.1[10.1996 -] 15BFT..BXD20 |
29311-76010 |
US $1.92 |
||
|
29331
|
29331
29331-27010
Blade, Vacuum Pump, A
[06.1999 -] 15BFT..BXD20 |
29331-27010 |
— | ||
|
29331
|
29331
29331-67020 Blade, Vacuum Pump, A[10.1996 - 06.1999] 15BFT..BXD20 |
29331-67020 |
from US $5.24 |
||
|
29336
|
29336
29336-58040
Shaft, Vacuum Pump
[11.1999 -] 15BFT..BXD20 |
29336-58040 |
— | ||
|
29336
|
29336
29336-58050
Shaft, Vacuum Pump
[10.1996 - 06.1999] 15BFT..BXD20 |
29336-58050 |
— | ||
|
29336
|
29336
29336-58060
Shaft, Vacuum Pump
[06.1999 - 11.1999] 15BFT..BXD20 |
29336-58060 |
— | ||
| replacement | |||||
|
29336
|
29336
29336-58040
Shaft, Vacuum Pump
[06.1999 - 11.1999] 15BFT..BXD20 |
29336-58040 |
— | ||
|
29342
|
29342
29342-58010 Packing, Vacuum Pump[10.1996 -] 15BFT..BXD20 NO.1 |
29342-58010 |
from US $3.84 |
||
|
29342
|
29342
29342-64010 Packing, Vacuum Pump[10.1996 -] 15BFT..BXD20 NO.2 |
29342-64010 |
from US $2.24 |
||
|
29351
|
29351
29351-58050
Gear, Vacuum Pump
[10.1996 -] 15BFT..BXD20 |
29351-58050 |
— | ||
|
29364
|
29364
29364-66010 Washer, Vacuum Pump[10.1996 -] 15BFT..BXD20 |
29364-66010 |
US $3.23 |
||
|
29369
|
29369
29369-64030 Valve Sub-Assy, Check[10.1996 -] 15BFT..BXD20 |
29369-64030 |
US $23.76 |
||
|
9009690031
|
9009690031
90096-90031
RING HOLE SNAP
|
90096-90031 |
— | ||
|
9009904577
|
9009904577
90099-04577
New Genuine Part
|
90099-04577 |
— | ||
|
9009905185
|
9009905185
90099-05185 NUT |
90099-05185 |
US $1.67 |
||
|
9020114099
|
9020114099
90201-14099 Gasket(For Vacuum Pump Union) |
90201-14099 |
from US $1.46 |
||
|
9040109001
|
9040109001
90401-09001 Bolt, Union(For Vacuum Pump Union) |
90401-09001 |
US $2.48 |
||
| replacement | |||||
|
9040109001
|
9040109001
90401-09003 Bolt, Union(For Vacuum Pump Union) |
90401-09003 |
from US $2.74 |
||
|
9161161032
|
9161161032
91611-61032 New Genuine Part |
91611-61032 |
US $2.77 |
||
| replacement | |||||
|
9161161032
|
9161161032
91612-61032 New Genuine Part |
91612-61032 |
US $1.65 |
||
|
9516110413
|
9516110413
95161-10413
Key(For Alternator Pulley)
|
95161-10413 |
— | ||
