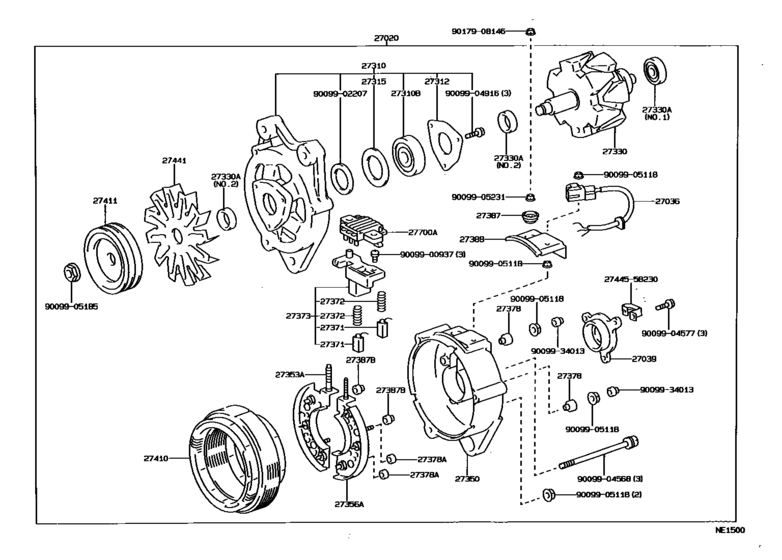

Alternator ([01.1996 - ] 24V 85A (9601- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFT
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 06.1999
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-58260 Alternator Assy[01.1996 -] 15B#..BXD20 ２４Ｖ ５０Ａ |
27060-58260 |
US $1,820 |
||
|
27020
|
27020
27060-58310
Alternator Assy
[01.1996 -] 15B#..BXD20 ２４Ｖ ８５Ａ |
27060-58310 |
— | ||
|
27036
|
27036
27036-58161
Terminal Sub-Assy, Lead Wire, Alternator
[01.1996 -] 15B#..BXD20 |
27036-58161 |
— | ||
|
27039
|
27039
27039-50090
Cover, Alternator Rear End
[01.1996 - 04.2001] 15B#..BXD20 24V 50A |
27039-50090 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-17230
Cover, Alternator Rear End
[01.1996 - 04.2001] 15B#..BXD20 24V 50A |
27039-17230 |
— | ||
|
27039
|
27039
27039-58090
Cover, Alternator Rear End
[01.1996 -] 15B#..BXD20 24V 85A |
27039-58090 |
— | ||
|
27310
|
27310
27310-58060
Frame Assy, Drive End, Alternator
[01.1996 -] 15B#..BXD20 24V 85A |
27310-58060 |
— | ||
|
27310
|
27310
27310-58080 Frame Assy, Drive End, Alternator[01.1996 -] 15B#..BXD20 24V 50A |
27310-58080 |
US $109.80 |
||
|
27310B
|
27310B
90099-10188
Bearing(For Alternator Drive End Frame)
[01.1996 -] 15B#..BXD20 24V 85A |
90099-10188 |
— | ||
|
27310B
|
27310B
90099-10192 Bearing(For Alternator Drive End Frame)[01.1996 -] 15B#..BXD20 24V 50A |
90099-10192 |
from US $13.63 |
||
|
27312
|
27312
27312-42010
Plate, Bearing Retainer, Alternator
[01.1996 -] 15B#..BXD20 24V 50A |
27312-42010 |
— | ||
|
27312
|
27312
27312-56070
Plate, Bearing Retainer, Alternator
[01.1996 -] 15B#..BXD20 24V 85A |
27312-56070 |
— | ||
|
27315
|
27315
27315-56070
Cover, Alternator Felt, Inner No.1
[01.1996 -] 15B#..BXD20 |
27315-56070 |
— | ||
|
27330
|
27330
27330-58050
Rotor Assy, Alternator
[01.1996 -] 15B#..BXD20 24V 50A |
27330-58050 |
— | ||
|
27330
|
27330
27330-58090
Rotor Assy, Alternator
[01.1996 -] 15B#..BXD20 24V 85A |
27330-58090 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[01.1996 -] 15B#..BXD20 24V 50A |
90099-10140 |
from US $9.43 |
||
|
27330A
|
27330A
90099-10141
Bearing(For Alternator Drive End Frame)
[01.1996 -] 15B#..BXD20 24V 85A,ＮＯ．１ |
90099-10141 |
— | ||
|
27330A
|
27330A
90099-20014
Ring, Space(For Alternator Rotor)
[01.1996 -] 15B#..BXD20 24V 85A,ＮＯ．２ |
90099-20014 |
— | ||
|
27350
|
27350
27350-58090
Frame Assy, Rectifier End
[01.1996 -] 15B#..BXD20 |
27350-58090 |
— | ||
|
27353A
|
27353A
27353-58010
Holder, W/rectifier
[01.1996 -] 15B#..BXD20 |
27353-58010 |
— | ||
|
27356A
|
27356A
27356-58010
Holder, W/rectifier Positive, Alternator
[01.1996 -] 15B#..BXD20 |
27356-58010 |
— | ||
|
27371
|
27371
27371-54412 Brush, Alternator[01.1996 -] 15B#..BXD20 |
27371-54412 |
from US $3.32 |
||
|
27372
|
27372
27372-56070
Spring, Alternator Brush
[01.1996 -] 15B#..BXD20 |
27372-56070 |
— | ||
|
27373
|
27373
27373-58010
Holder, Alternator Brush, A
[01.1996 -] 15B#..BXD20 |
27373-58010 |
— | ||
|
27378
|
27378
27378-45020
Insulator, Alternator, No.1
[01.1996 -] 15B#..BXD20 |
27378-45020 |
— | ||
|
27378A
|
27378A
27378-54010
Insulator, Alternator, No.2
[01.1996 -] 15B#..BXD20 |
27378-54010 |
— | ||
|
27387
|
27387
27387-17130
Insulator, Terminal
[01.1996 -] 15B#..BXD20 24V 85A |
27387-17130 |
— | ||
|
27387
|
27387
27387-42020
Insulator, Terminal
[01.1996 - 01.1999] 15BFT..BXD20 24V 50A |
27387-42020 |
— | ||
|
27387
|
27387
27387-42021
Insulator, Terminal
[01.1999 -] 15B#..BXD20 24V 50A |
27387-42021 |
— | ||
|
27387B
|
27387B
27387-54010
Insulator, Terminal
[01.1996 -] 15B#..BXD20 |
27387-54010 |
— | ||
|
27388
|
27388
27388-42010 Cover, Alternator Brush[01.1996 -] 15B#..BXD20 24V 50A |
27388-42010 |
from US $2.30 |
||
|
27388
|
27388
27388-58010
Cover, Alternator Brush
[01.1996 -] 15B#..BXD20 24V 85A |
27388-58010 |
— | ||
|
27410
|
27410
27410-58010
Stator Assy, Alternator
[01.1996 -] 15B#..BXD20 |
27410-58010 |
— | ||
|
27411
|
27411
27411-58010
Pulley, Alternator
[01.1996 -] 15B#..BXD20 24V 85A |
27411-58010 |
— | ||
|
27411
|
27411
27411-58290
Pulley, Alternator
[01.1996 -] 15B#..BXD20 24V 50A |
27411-58290 |
— | ||
|
27441
|
27441
27441-57030
Fan, Alternator
[01.1996 -] 15B#..BXD20 |
27441-57030 |
— | ||
|
27700A
|
27700A
27700-58010 Regulator Assy, Generator[01.1996 -] 15B#..BXD20 24V 85A |
27700-58010 |
US $266.45 |
||
|
27700A
|
27700A
27700-58040
Regulator Assy, Generator
[01.1996 - 08.1996] 15BFT..BXD20 24V 50A |
27700-58040 |
— | ||
| replacement | |||||
|
27700A
|
27700A
27700-58060 Regulator Assy, Generator[01.1996 - 08.1996] 15BFT..BXD20 24V 50A |
27700-58060 |
from US $127.36 |
||
|
27700A
|
27700A
27700-58060 Regulator Assy, Generator[08.1996 -] 15B#..BXD20 24V 50A |
27700-58060 |
from US $127.36 |
||
|
2744558230
|
2744558230
27445-58230
New Genuine Part
|
27445-58230 |
— | ||
|
9009900937
|
9009900937
90099-00937
New Genuine Part
|
90099-00937 |
— | ||
|
9009902207
|
9009902207
90099-02207
Felt(For Alternator Drive End Frame)
|
90099-02207 |
— | ||
|
9009904568
|
9009904568
90099-04568
New Genuine Part
|
90099-04568 |
— | ||
|
9009904577
|
9009904577
90099-04577
New Genuine Part
|
90099-04577 |
— | ||
|
9009904916
|
9009904916
90099-04916
New Genuine Part
|
90099-04916 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905185
|
9009905185
90099-05185 NUT |
90099-05185 |
US $1.67 |
||
|
9009905231
|
9009905231
90099-05231
New Genuine Part
|
90099-05231 |
— | ||
|
9009934013
|
9009934013
90099-34013
Cap, Alternator Terminal
|
90099-34013 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
