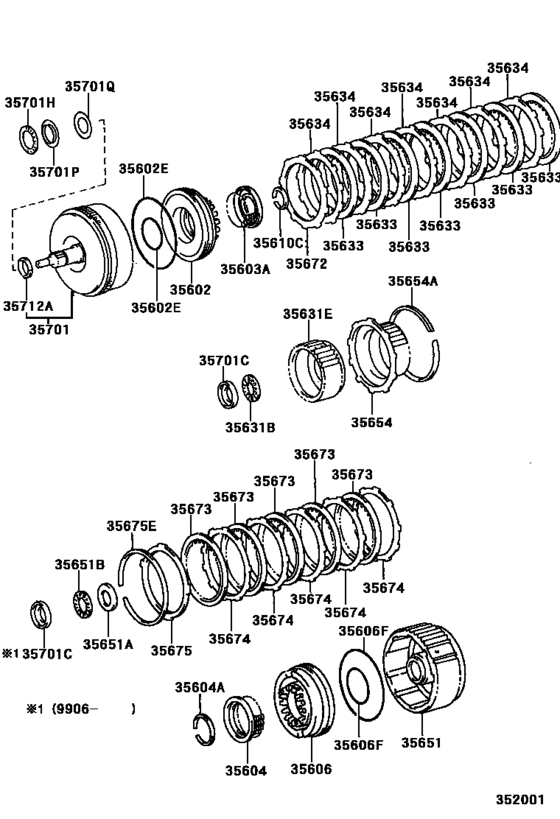

Brake Band & Multiple Disc Clutch (Atm) ([01.1996 - ] A442F,A443F (9601- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFT
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 06.1999
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35602
|
35602
35602-36020 Piston Sub-Assy, Front Clutch[01.1996 - 10.2001] BXD20 |
35602-36020 |
US $66.74 |
||
|
35602E
|
35602E
90301-62004 Ring, O (For Front Clutch Piston)[01.1996 - 10.2001] BXD20 内側 |
90301-62004 |
US $3.23 |
||
|
35602E
|
35602E
90301-99027 Ring, O (For Overdrive Direct Clutch Piston)[01.1996 - 10.2001] BXD20 外側 |
90301-99027 |
US $3.76 |
||
|
35603A
|
35603A
35603-60010 Spring Sub-Assy, Forward Clutch Return[01.1996 - 10.2001] BXD20 |
35603-60010 |
US $12.23 |
||
|
35604
|
35604
35604-60010 Spring Sub-Assy, Forward Clutch Return[01.1996 - 10.2001] BXD20 |
35604-60010 |
US $11.49 |
||
|
35604A
|
35604A
90520-50001 Ring, Shaft Snap (For Overdrive Direct Clutch Return Spring)[01.1996 - 10.2001] BXD20 |
90520-50001 |
US $2.33 |
||
|
35606
|
35606
35606-60010 Piston Sub-Assy, Rear Clutch[01.1996 - 10.2001] BXD20 |
35606-60010 |
US $72.16 |
||
|
35606F
|
35606F
90301-62004 Ring, O (For Front Clutch Piston)[01.1996 - 10.2001] BXD20 内側 |
90301-62004 |
US $3.23 |
||
|
35606F
|
35606F
90301-99028 Ring, O (For Rear Clutch Piston)[01.1996 - 10.2001] BXD20 外側 |
90301-99028 |
US $3.76 |
||
|
35610C
|
35610C
90520-50001 Ring, Shaft Snap (For Overdrive Direct Clutch Return Spring)[01.1996 - 10.2001] BXD20 |
90520-50001 |
US $2.33 |
||
|
35631B
|
35631B
90374-32005 Bearing, Thrust(For Front Clutch Hub)[01.1996 - 10.2001] BXD20 |
90374-32005 |
US $12.11 |
||
|
35631E
|
35631E
35631-60030 Hub, Front Clutch[01.1996 - 10.2001] BXD20 |
35631-60030 |
US $93.18 |
||
|
35633
|
35633
35633-60020 Disc, Clutch (For Front Clutch)[01.1996 - 06.1999] BXD20 |
35633-60020 |
from US $27.42 |
||
|
35634
|
35634
35634-36010 Plate, Clutch (For Overdrive)[01.1996 - 10.2001] BXD20 厚さ＝１．７５−１．８５ |
35634-36010 |
US $22.85 |
||
|
35634
|
35634
35634-36020 Plate, Front Clutch[01.1996 - 10.2001] BXD20 厚さ＝２．３５−２．４５ |
35634-36020 |
US $24.86 |
||
|
35634
|
35634
35634-36040 Plate, Front Clutch[01.1996 - 10.2001] BXD20 厚さ＝１．９５−２．０５ |
35634-36040 |
US $19.95 |
||
|
35634
|
35634
35634-36050 Plate, Front Clutch[01.1996 - 10.2001] BXD20 厚さ＝２．１５−２．２５ |
35634-36050 |
from US $19.95 |
||
|
35651
|
35651
35651-60010 Drum, Rear Clutch[01.1996 - 10.2001] BXD20 |
35651-60010 |
US $132.79 |
||
|
35651A
|
35651A
35789-36020 Race, Thrust Bearing (For Overdrive Case Front)[01.1996 - 10.2001] BXD20 |
35789-36020 |
US $9.50 |
||
|
35651B
|
35651B
90374-32005 Bearing, Thrust(For Front Clutch Hub)[01.1996 - 10.2001] BXD20 |
90374-32005 |
US $12.11 |
||
|
35654
|
35654
35654-36011 Hub, Rear Clutch[01.1996 - 10.2001] BXD20 |
35654-36011 |
US $38.09 |
||
|
35654A
|
35654A
90521-99017 Ring, Hole Snap (For Overdrive Clutch Flange)[01.1996 - 10.2001] BXD20 |
90521-99017 |
US $1.49 |
||
|
35672
|
35672
35672-36010 Plate, Clutch Cushion[01.1996 - 10.2001] BXD20 |
35672-36010 |
US $15.03 |
||
|
35673
|
35673
35633-36040 Disc, Clutch (For Front Clutch)[01.1996 - 10.2001] BXD20 |
35633-36040 |
from US $26.62 |
||
|
35674
|
35674
35634-36020 Plate, Front Clutch[01.1996 - 10.2001] BXD20 |
35634-36020 |
US $24.86 |
||
|
35675
|
35675
35675-60010 Flange, Overdrive Clutch[01.1996 - 10.2001] BXD20 厚さ＝５．０ |
35675-60010 |
US $46.59 |
||
|
35675
|
35675
35675-60020 Flange, Overdrive Clutch[01.1996 - 10.2001] BXD20 厚さ＝５．２ |
35675-60020 |
US $46.59 |
||
|
35675
|
35675
35675-60050 Flange, Overdrive Clutch[01.1996 - 10.2001] BXD20 厚さ＝４．６ |
35675-60050 |
US $12.08 |
||
|
35675
|
35675
35675-60060 Flange, Overdrive Clutch[01.1996 - 10.2001] BXD20 厚さ＝４．８ |
35675-60060 |
US $12.81 |
||
|
35675E
|
35675E
90521-99017 Ring, Hole Snap (For Overdrive Clutch Flange)[01.1996 - 10.2001] BXD20 |
90521-99017 |
US $1.49 |
||
|
35701
|
35701
35701-60040 Shaft Sub-Assy, Input[01.1996 - 01.1998] BXD20 |
35701-60040 |
US $435.34 |
||
| replacement | |||||
|
35701
|
35701
35701-60050 Shaft Sub-Assy, Input[01.1996 - 01.1998] BXD20 |
35701-60050 |
US $324.98 |
||
|
35701
|
35701
35701-60050 Shaft Sub-Assy, Input[01.1998 - 10.2001] BXD20 |
35701-60050 |
US $324.98 |
||
|
35701C
|
35701C
35789-36020 Race, Thrust Bearing (For Overdrive Case Front)[01.1996 - 06.1999] BXD20 |
35789-36020 |
US $9.50 |
||
|
35701H
|
35701H
90374-34001 Bearing, Thrust(For Overdrive Planetary Ring Gear Flange)[01.1996 - 10.2001] BXD20 |
90374-34001 |
US $14.87 |
||
|
35701P
|
35701P
35789-36090 Race, Thrust Bearing(For Front Clutch Hub Front)[01.1996 - 10.2001] BXD20 |
35789-36090 |
US $7.29 |
||
|
35701Q
|
35701Q
35789-36100 Race, Thrust Bearing (For Input Shaft)[01.1996 - 10.2001] BXD20 厚さ＝０．９ |
35789-36100 |
US $7.51 |
||
|
35701Q
|
35701Q
35789-36110 Race, Thrust Bearing (For Input Shaft)[01.1996 - 10.2001] BXD20 厚さ＝１．２ |
35789-36110 |
US $7.72 |
||
|
35701Q
|
35701Q
35789-36120 Race, Thrust Bearing (For Input Shaft)[01.1996 - 10.2001] BXD20 厚さ＝１．５ |
35789-36120 |
US $7.72 |
||
|
35701Q
|
35701Q
35789-36130 Race, Thrust Bearing (For Input Shaft)[01.1996 - 10.2001] BXD20 厚さ＝１．８ |
35789-36130 |
US $8.21 |
||
|
35701Q
|
35701Q
35789-36140 Race, Thrust Bearing (For Input Shaft)[01.1996 - 10.2001] BXD20 厚さ＝２．１ |
35789-36140 |
US $8.21 |
||
|
35712A
|
35712A
35712-36010 Ring, Oil Seal (For Overdrive Planetary Ring Gear Flange)[01.1996 - 10.2001] BXD20 |
35712-36010 |
US $5.42 |
||
