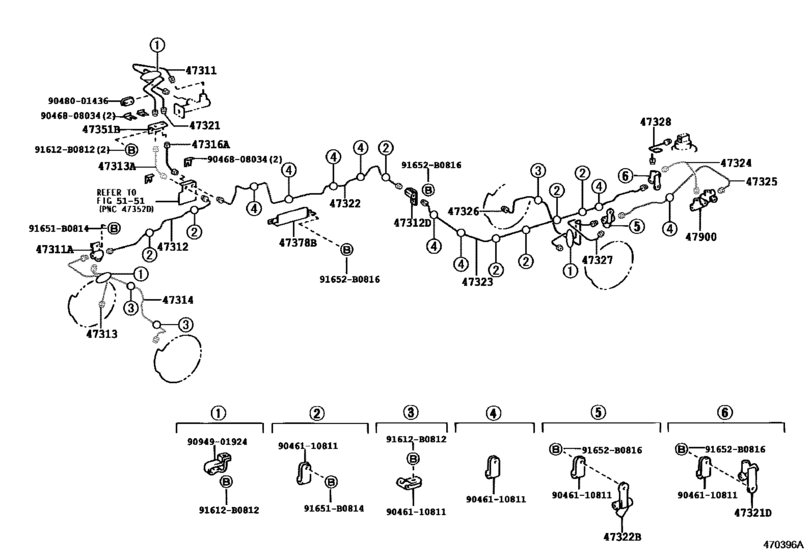

Brake Tube & Clamp ([01.1996 - ] (9601- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFT
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 06.1999
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-65050 Tube, Front Brake, No.1[01.1996 - 06.1999] BXD20 |
47311-65050 |
US $17.91 |
||
|
47311A
|
47311A
90904-13005 Way(For Front Brake Tube)[01.1996 -] BXD20 |
90904-13005 |
US $5.53 |
||
|
47312
|
47312
47312-65020 Tube, Front Brake, No.2[01.1996 -] BXD20 |
47312-65020 |
US $17.91 |
||
|
47312D
|
47312D
90412-10006 Way(For Front Brake Tube)[01.1996 -] BXD20 |
90412-10006 |
US $25.92 |
||
|
47313
|
47313
47313-65030 Tube, Front Brake, No.3[01.1996 -] BXD20 |
47313-65030 |
US $6.26 |
||
|
47313A
|
47313A
96950-32705 Hose, Flexible, No.1(For Front)[01.1996 - 08.2000] BXD20 |
96950-32705 |
US $17.04 |
||
|
47314
|
47314
47314-65030 Tube, Front Brake, No.4[01.1996 -] BXD20 |
47314-65030 |
US $8.59 |
||
|
47316A
|
47316A
96950-32705 Hose, Flexible, No.1(For Front)[01.1996 - 08.2000] BXD20 |
96950-32705 |
US $17.04 |
||
|
47321
|
47321
47321-65020 Tube, Rear Brake, No.1[01.1996 - 06.1999] BXD20 |
47321-65020 |
US $17.91 |
||
|
47321D
|
47321D
90904-12037 Way, No.1(For Rear Brake Tube)[01.1996 -] BXD20 |
90904-12037 |
US $8.15 |
||
|
47321D
|
47321D
90904-13004 Way, No.1(For Rear Brake Tube)[01.1996 -] BXD20 ｱﾘ(ﾀｲﾔｸｳｷｱﾂ ﾁﾖｳｾｲｿｳﾁ) |
90904-13004 |
US $5.53 |
||
|
47322
|
47322
47322-65010 Tube, Rear Brake, No.2[01.1996 -] BXD20 |
47322-65010 |
US $34.51 |
||
|
47322B
|
47322B
90904-13003 Way, No.1(For Rear Brake Tube)[01.1996 -] BXD20 |
90904-13003 |
US $5.53 |
||
|
47323
|
47323
47323-65010 Tube, Rear Brake, No.3[01.1996 -] BXD20 |
47323-65010 |
US $25.92 |
||
|
47324
|
47324
47310-65010 Tube, Rear Brake, No.4[01.1996 -] BXD20 |
47310-65010 |
US $11.29 |
||
|
47325
|
47325
47320-65010 Tube, Rear Brake, No.5[01.1996 -] BXD20 |
47320-65010 |
US $14.69 |
||
|
47326
|
47326
47326-65020 Tube, Rear Brake, No.6[01.1996 -] BXD20 |
47326-65020 |
US $12.81 |
||
|
47327
|
47327
47327-65020 Tube, Rear Brake, No.7[01.1996 -] BXD20 |
47327-65020 |
US $8.39 |
||
|
47328
|
47328
47328-65010 Tube, Rear Brake, No.8[01.1996 -] BXD20 |
47328-65010 |
US $6.41 |
||
|
47351B
|
47351B
47351-65020 Bracket, Flexible Hose, No.1[01.1996 - 06.1999] BXD20 |
47351-65020 |
US $10.19 |
||
|
47378B
|
47378B
17551-58070 Protector, Tube, Upper[01.1996 -] BXD20 |
17551-58070 |
US $20.09 |
||
|
47900
|
47900
47900-65010 Valve Assy, Load Sensing W/spring[01.1996 -] BXD20 |
47900-65010 |
US $106.92 |
||
|
91612B0812
|
91612B0812
91612-B0812 Bolt(For Transaxle Case Receiver) |
91612-B0812 |
US $1.46 |
||
| replacement | |||||
|
91612B0812
|
91612B0812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
|
91652B0816
|
91652B0816
91652-B0816 New Genuine Part |
91652-B0816 |
US $1.43 |
||
|
9046110811
|
9046110811
90461-10811 New Genuine Part |
90461-10811 |
US $2.33 |
||
|
9046808034
|
9046808034
90468-08034 CLIP |
90468-08034 |
from US $0.93 |
||
|
9048001436
|
9048001436
90480-01436 Grommet, No.1(For Front Brake Tube) |
90480-01436 |
US $3.79 |
||
|
9094901924
|
9094901924
90949-01924 New Genuine Part |
90949-01924 |
US $2.62 |
||
