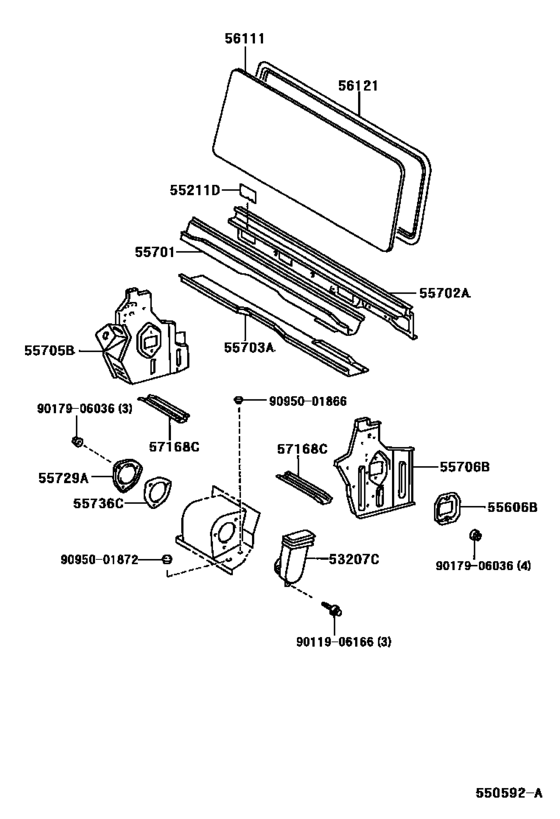

Cowl Panel & Windshield Glass ([01.1996 - ] (9601- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFT
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 06.1999
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53207C
|
53207C
53207-65020 Duct Sub-Assy, Cool Air Intake[01.1996 -] BXD20 |
53207-65020 |
US $68 |
||
|
55211D
|
55211D
55211-65010 Silencer, Front Panel, Upper[01.1996 -] BXD20 |
55211-65010 |
US $16.02 |
||
|
55606B
|
55606B
55606-65010 Cover Sub-Assy, Instrument Panel Under, No.1[01.1996 -] BXD20 |
55606-65010 |
US $45.43 |
||
|
55701
|
55701
55701-65050 Panel Sub-Assy, Cowl[01.1996 - 06.1999] BXD20 |
55701-65050 |
US $432.43 |
||
| replacement | |||||
|
55701
|
55701
55701-65070 Panel Sub-Assy, Cowl[01.1996 - 06.1999] BXD20 |
55701-65070 |
US $432.43 |
||
|
55702A
|
55702A
55702-65030 Panel Sub-Assy, Cowl Top, Outer Front[01.1996 - 06.1999] BXD20 |
55702-65030 |
US $529.98 |
||
|
55703A
|
55703A
55703-65030 Panel Sub-Assy, Cowl Top, Inner[01.1996 -] BXD20 |
55703-65030 |
US $263.54 |
||
|
55705B
|
55705B
55706-65040 Panel Sub-Assy, Cowl Top Side, Rh[01.1996 - 10.2001] BXD20 |
55706-65040 |
US $241.70 |
||
|
55706B
|
55706B
55707-65160 Panel Sub-Assy, Cowl Top Side, Lh[01.1996 - 10.2001] BXD20 |
55707-65160 |
US $286.83 |
||
|
55729A
|
55729A
55729-65010 Cover, Cowl Panel Hole[01.1996 -] BXD20 |
55729-65010 |
US $23.15 |
||
|
55736C
|
55736C
55736-65010 Seal, Water Guard Plate[01.1996 -] BXD20 |
55736-65010 |
US $5.82 |
||
|
56111
|
56111
56111-65030
Glass, Windshield
[01.1996 -] BXD20 ＊ＴＬ，Ｔ＝４．７，グリーン |
56111-65030 |
— | ||
|
56121
|
56121
56121-65030
Weatherstrip, Windshield
[01.1996 -] BXD20 |
56121-65030 |
— | ||
|
57168C
|
57168C
57168-65010 Member, Front Floor, Lh[01.1996 -] BXD20 |
57168-65010 |
US $90.27 |
||
|
9011906166
|
9011906166
90119-06166 BOLT |
90119-06166 |
US $1.43 |
||
|
9017906036
|
9017906036
90179-06036
Nut, Cap(For Cylinder Head Cover)
|
90179-06036 |
— | ||
| replacement | |||||
|
9017906036
|
9017906036
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.65 |
||
|
9095001866
|
9095001866
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $2.15 |
||
|
9095001872
|
9095001872
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
