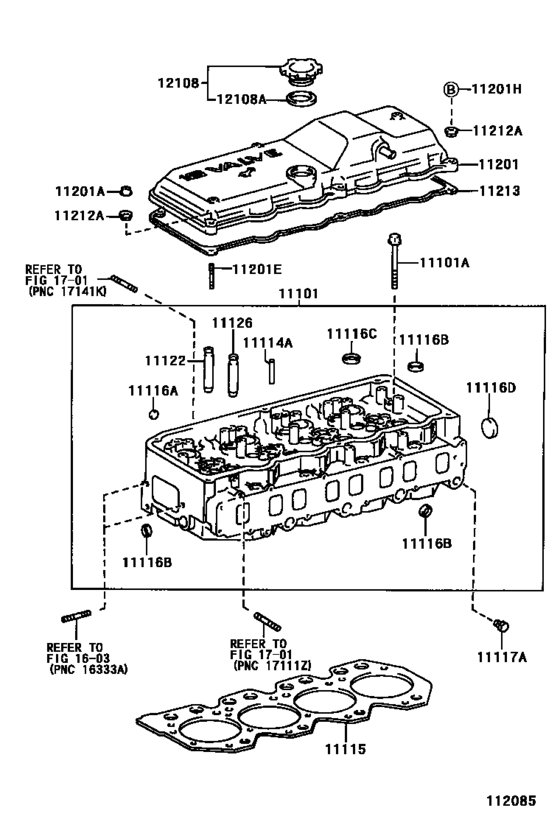

Cylinder Head ([01.1996 - 06.1999] (9601-9906)) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFT
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 06.1999
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-58090 Head Sub-Assy, Cylinder[01.1996 - 04.1999] 15BFT..BXD20 |
11101-58090 |
US $2,198.56 |
||
| replacement | |||||
|
11101
|
11101
11101-58091 Head Sub-Assy, Cylinder[01.1996 - 04.1999] 15BFT..BXD20 |
11101-58091 |
US $1,514.24 |
||
|
11101
|
11101
11101-58091 Head Sub-Assy, Cylinder[04.1999 - 06.1999] 15BFT..BXD20 |
11101-58091 |
US $1,514.24 |
||
|
11101A
|
11101A
90910-02084 Bolt(For Cylinder Head Set)[01.1996 -] 15B#..BXD20 |
90910-02084 |
US $9.50 |
||
|
11114A
|
11114A
90250-09007 Pin, Straight[01.1996 -] 15B#..BXD20 長さ＝５３．５，外径＝９ |
90250-09007 |
US $3.84 |
||
|
11115
|
11115
11115-58130 Gasket, Cylinder Head[01.1996 - 05.1999] 15BFT..BXD20 厚さ＝１．２０ |
11115-58130 |
US $177.63 |
||
| replacement | |||||
|
11115
|
11115
11115-58131 Gasket, Cylinder Head[01.1996 - 05.1999] 15BFT..BXD20 厚さ＝１．２０ |
11115-58131 |
from US $96.41 |
||
|
11115
|
11115
11115-58131 Gasket, Cylinder Head[05.1999 -] 15B#..BXD20 厚さ＝１．２０ |
11115-58131 |
from US $96.41 |
||
|
11115
|
11115
11115-58140 Gasket, Cylinder Head[01.1996 - 05.1999] 15BFT..BXD20 厚さ＝１．３０ |
11115-58140 |
US $177.63 |
||
| replacement | |||||
|
11115
|
11115
11115-58141 Gasket, Cylinder Head[01.1996 - 05.1999] 15BFT..BXD20 厚さ＝１．３０ |
11115-58141 |
from US $95.86 |
||
|
11115
|
11115
11115-58141 Gasket, Cylinder Head[05.1999 -] 15B#..BXD20 厚さ＝１．３０ |
11115-58141 |
from US $95.86 |
||
|
11115
|
11115
11115-58150 Gasket, Cylinder Head[01.1996 - 05.1999] 15BFT..BXD20 厚さ＝１．４０ |
11115-58150 |
US $177.63 |
||
| replacement | |||||
|
11115
|
11115
11115-58151 Gasket, Cylinder Head[01.1996 - 05.1999] 15BFT..BXD20 厚さ＝１．４０ |
11115-58151 |
from US $99.37 |
||
|
11115
|
11115
11115-58151 Gasket, Cylinder Head[05.1999 -] 15B#..BXD20 厚さ＝１．４０ |
11115-58151 |
from US $99.37 |
||
|
11116A
|
11116A
90331-14006 Plug, Tight, No.1[01.1996 -] 15B#..BXD20 |
90331-14006 |
US $0.35 |
||
|
11116B
|
11116B
96411-62500 Plug, Tight, No.1[01.1996 -] 15B#..BXD20 |
96411-62500 |
from US $3.58 |
||
|
11116C
|
11116C
96411-63000 Plug, Tight[01.1996 - 06.1999] 15BFT..BXD20 |
96411-63000 |
from US $3.76 |
||
|
11116D
|
11116D
96411-64000 Plug, Tight, No.2[01.1996 - 06.1999] 15BFT..BXD20 |
96411-64000 |
from US $4.12 |
||
|
11117A
|
11117A
90345-54005 Plug, W/head Taper Screw, No.1[01.1996 -] 15B#..BXD20 |
90345-54005 |
from US $3.80 |
||
|
11122
|
11122
11122-58010 Bush, Intake Valve Guide[01.1996 - 04.1999] 15BFT..BXD20 ＳＴＤ |
11122-58010 |
US $10.48 |
||
| replacement | |||||
|
11122
|
11122
11122-58020 Bush, Intake Valve Guide[01.1996 - 04.1999] 15BFT..BXD20 ＳＴＤ |
11122-58020 |
US $7.43 |
||
|
11122
|
11122
11122-58020 Bush, Intake Valve Guide[04.1999 -] 15B#..BXD20 ＳＴＤ |
11122-58020 |
US $7.43 |
||
|
11126
|
11126
11122-58010 Bush, Intake Valve Guide[01.1996 - 04.1999] 15BFT..BXD20 ＳＴＤ |
11122-58010 |
US $10.48 |
||
| replacement | |||||
|
11126
|
11126
11122-58020 Bush, Intake Valve Guide[01.1996 - 04.1999] 15BFT..BXD20 ＳＴＤ |
11122-58020 |
US $7.43 |
||
|
11126
|
11126
11122-58020 Bush, Intake Valve Guide[04.1999 -] 15B#..BXD20 ＳＴＤ |
11122-58020 |
US $7.43 |
||
|
11201
|
11201
11201-58040 Cover Sub-Assy, Cylinder Head[01.1996 - 06.1999] 15BFT..BXD20 |
11201-58040 |
US $269.36 |
||
| replacement | |||||
|
11201
|
11201
11201-58041 Cover Sub-Assy, Cylinder HeadCYLINDER HEAD [01.1996 - 06.1999] 15BFT..BXD20 |
11201-58041 |
US $283.05 |
||
|
11201A
|
11201A
90179-08025 Nut, Cap(For Cylinder Head Cover)[01.1996 - 05.1999] 15BFT..BXD20 |
90179-08025 |
from US $0.86 |
||
|
11201A
|
11201A
90179-08040 Nut, Cap(For Cylinder Head Cover)[05.1999 -] 15B#..BXD20 |
90179-08040 |
from US $1.01 |
||
|
11201E
|
11201E
92112-60835 Bolt, Stud(For Cylinder Head Cover Set)[01.1996 -] 15B#..BXD20 |
92112-60835 |
US $3.40 |
||
|
11201H
|
11201H
91511-60835
Bolt(For Cylinder Head Set Sub)
[01.1996 -] 15B#..BXD20 |
91511-60835 |
— | ||
| replacement | |||||
|
11201H
|
11201H
90105-08200 Bolt(For Cylinder Head Set Sub)[01.1996 -] 15B#..BXD20 |
90105-08200 |
from US $1.37 |
||
|
11212A
|
11212A
11228-56010 Cushion, Cylinder Head Cover[01.1996 -] 15B#..BXD20 |
11228-56010 |
from US $1.46 |
||
|
11213
|
11213
11213-58020
Gasket, Cylinder Head Cover
[01.1996 - 03.1999] 15BFT..BXD20 |
11213-58020 |
— | ||
| replacement | |||||
|
11213
|
11213
11213-58021 Gasket, Cylinder Head Cover[01.1996 - 03.1999] 15BFT..BXD20 |
11213-58021 |
US $20.50 |
||
|
11213
|
11213
11213-58021 Gasket, Cylinder Head Cover[03.1999 -] 15B#..BXD20 |
11213-58021 |
US $20.50 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[01.1996 -] 15B#..BXD20 |
12180-55010 |
from US $11.29 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[01.1996 -] 15B#..BXD20 |
90430-37140 |
from US $1.14 |
||
