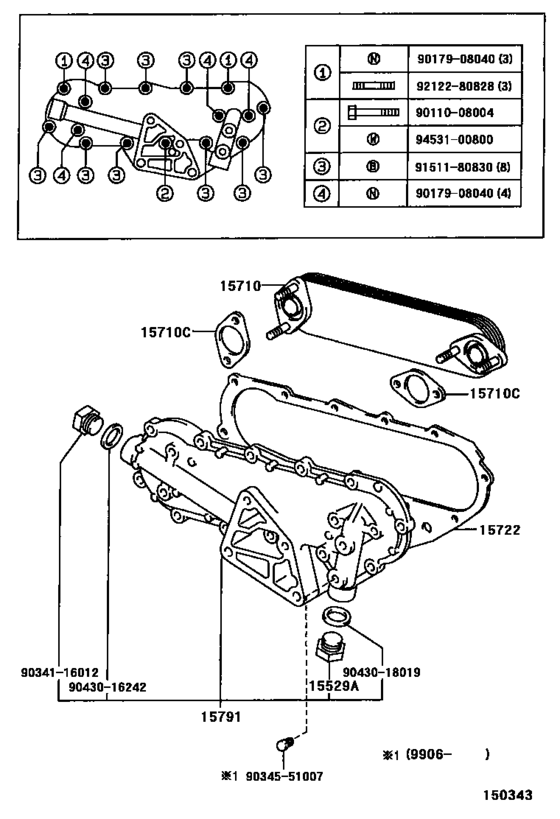

Engine Oil Cooler ([01.1996 - ] (9601- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFT
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 06.1999
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15529A
|
15529A
90341-18006 Plug (No magnet)[01.1996 -] 15B#..BXD20 |
90341-18006 |
from US $3.23 |
||
|
15710
|
15710
15710-58030 Cooler Assy, Oil[01.1996 - 06.1999] 15BFT..BXD20 |
15710-58030 |
US $377.40 |
||
|
15710C
|
15710C
15785-58010 Gasket(For Oil Cooler)[01.1996 -] 15B#..BXD20 |
15785-58010 |
US $3.58 |
||
|
15722
|
15722
15725-56020 Gasket, Oil Cooler[01.1996 -] 15B#..BXD20 |
15725-56020 |
from US $7.18 |
||
|
15791
|
15791
15701-58050 Case, Oil Cooler[01.1996 -] 15B#..BXD20 |
15701-58050 |
US $282.46 |
||
|
9011008004
|
9011008004
90110-08004 New Genuine Part |
90110-08004 |
US $4.19 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9034116012
|
9034116012
90341-16012 Plug(For Transmission Case) |
90341-16012 |
US $4.66 |
||
|
9034551007
|
9034551007
90345-51007 Plug, W/head Taper Screw, No.1 |
90345-51007 |
US $0.70 |
||
|
9043016242
|
9043016242
90430-16242 Gasket, W/head Straight Screw Plug |
90430-16242 |
from US $0.80 |
||
|
9043018019
|
9043018019
90430-18019 New Genuine Part |
90430-18019 |
US $1.16 |
||
|
9151180830
|
9151180830
91511-80830 Bolt(For Alternator) |
91511-80830 |
US $3.58 |
||
|
9212280828
|
9212280828
92122-80828 Bolt, Stud(For Intake Manifold To Cylinder Head) |
92122-80828 |
US $1.61 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $0.84 |
