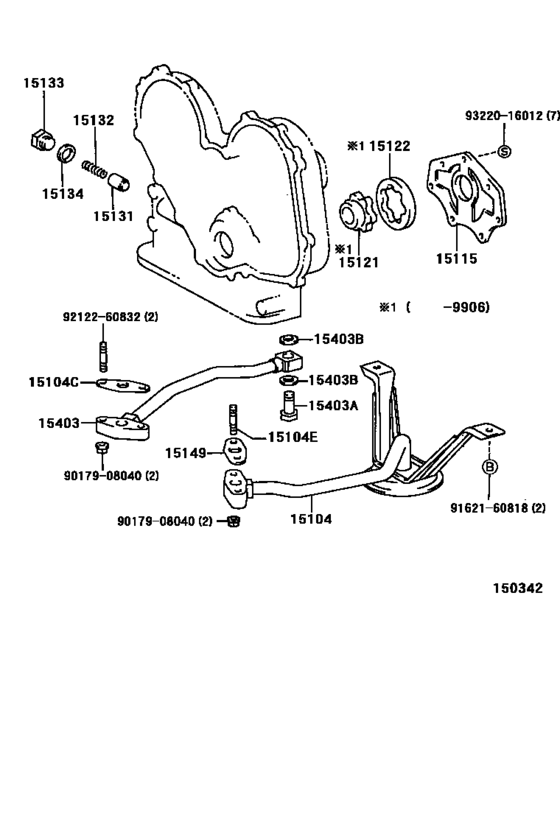

Engine Oil Pump ([01.1996 - ] (9601- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFT
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 06.1999
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15104
|
15104
15104-56061
Strainer Sub-Assy, Oil
[01.1996 - 04.1999] 15BFT..BXD20 |
15104-56061 |
— | ||
| replacement | |||||
|
15104
|
15104
15104-56062 Strainer Sub-Assy, Oil[01.1996 - 04.1999] 15BFT..BXD20 |
15104-56062 |
US $124.05 |
||
|
15104
|
15104
15104-56062 Strainer Sub-Assy, Oil[04.1999 - 06.1999] 15BFT..BXD20 |
15104-56062 |
US $124.05 |
||
|
15104C
|
15104C
15149-56020
Gasket(For Oil Strainer)
[01.1996 - 08.1999] 15B#..BXD20 |
15149-56020 |
— | ||
| replacement | |||||
|
15104C
|
15104C
15149-58010 Gasket(For Oil Strainer)[01.1996 - 08.1999] 15B#..BXD20 |
15149-58010 |
US $3.03 |
||
|
15104E
|
15104E
92122-60832 Bolt, Stud(For Oil Strainer)[01.1996 -] 15B#..BXD20 |
92122-60832 |
from US $1.61 |
||
|
15115
|
15115
15115-56090 Cover, Oil Pump[01.1996 -] 15B#..BXD20 |
15115-56090 |
US $40.62 |
||
|
15121
|
15121
15121-56090 Gear, Oil Pump Drive[01.1996 - 06.1999] 15BFT..BXD20 |
15121-56090 |
from US $26.83 |
||
|
15122
|
15122
15122-56090 Gear, Oil Pump Driven[01.1996 - 06.1999] 15BFT..BXD20 |
15122-56090 |
from US $30.72 |
||
|
15131
|
15131
15131-24010 Valve, Oil Pump Relief[01.1996 -] 15B#..BXD20 |
15131-24010 |
from US $3.88 |
||
|
15132
|
15132
15132-56080 Spring, Oil Pump Relief Valve[01.1996 -] 15B#..BXD20 |
15132-56080 |
US $2.80 |
||
|
15133
|
15133
15133-20010 Plug, Oil Pump Relief Valve[01.1996 -] 15B#..BXD20 |
15133-20010 |
from US $3.17 |
||
|
15134
|
15134
15134-20010 Gasket, Oil Pump Relief Valve[01.1996 -] 15B#..BXD20 |
15134-20010 |
from US $1.88 |
||
|
15149
|
15149
15149-56020
Gasket(For Oil Strainer)
[01.1996 - 08.1999] 15B#..BXD20 |
15149-56020 |
— | ||
| replacement | |||||
|
15149
|
15149
15149-58010 Gasket(For Oil Strainer)[01.1996 - 08.1999] 15B#..BXD20 |
15149-58010 |
US $3.03 |
||
|
15403
|
15403
15403-56050 Pipe Sub-Assy, Oil Pump Outlet[01.1996 -] 15B#..BXD20 |
15403-56050 |
US $54.16 |
||
|
15403A
|
15403A
90401-20009 Union(For Oil Pump Outlet Pipe)[01.1996 -] 15B#..BXD20 |
90401-20009 |
US $5.42 |
||
|
15403B
|
15403B
90430-20018 Gasket(For Oil Pump Outlet Pipe)[01.1996 -] 15B#..BXD20 |
90430-20018 |
from US $1.16 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9162160818
|
9162160818
91621-60818
Bolt(For Automatic Transmission Case Protector)
|
91621-60818 |
— | ||
| replacement | |||||
|
9162160818
|
9162160818
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.97 |
||
|
9212260832
|
9212260832
92122-60832 Bolt, Stud(For Oil Strainer) |
92122-60832 |
from US $1.61 |
||
|
9322016012
|
9322016012
93220-16012 SCREW |
93220-16012 |
US $1.40 |
||
