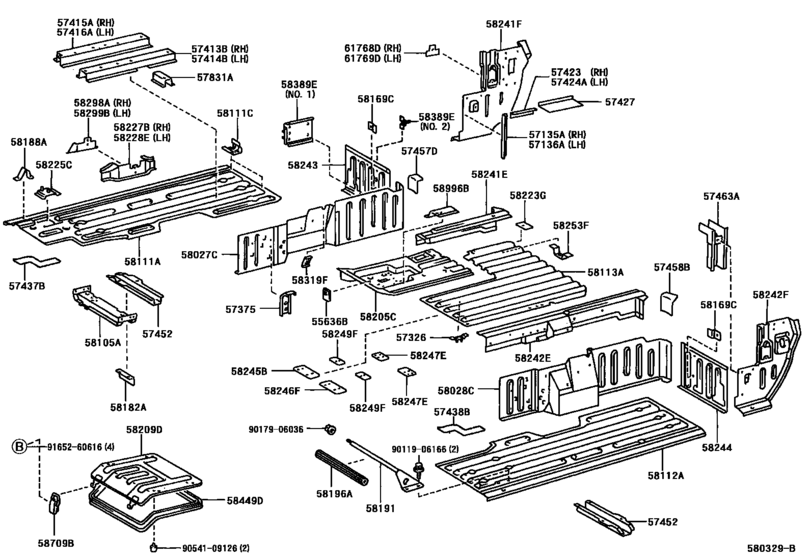

Front Floor Panel & Front Floor Member ([01.1996 - ] (9601- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFT
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 06.1999
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55636B
|
55636B
55636-65020 Bracket, Instrument Panel Under Cover, No.1[01.1996 -] BXD20 |
55636-65020 |
US $6.99 |
||
|
57135A
|
57135A
57135-65020 Bracket, Front Floor Side, Rh[01.1996 -] BXD20 |
57135-65020 |
US $20.82 |
||
|
57136A
|
57136A
57135-65020 Bracket, Front Floor Side, Rh[01.1996 -] BXD20 |
57135-65020 |
US $20.82 |
||
|
57326
|
57326
57326-65010 Bracket, Water Valve[01.1996 - 06.1999] BXD20 |
57326-65010 |
US $10.63 |
||
|
57375
|
57375
57375-65010 Reinforcement, Front Step Panel, No.1 Rh[01.1996 -] BXD20 |
57375-65010 |
US $39.60 |
||
|
57413B
|
57413B
57413-65030 Rail, Floor Side, Center Rh[01.1996 -] BXD20 |
57413-65030 |
US $125.22 |
||
|
57414B
|
57414B
57414-65020 Rail, Floor Side, Center Lh[01.1996 -] BXD20 |
57414-65020 |
US $125.22 |
||
|
57415A
|
57415A
57047-65030 Rail Sub-Assy, Floor Side, Rear Rh[01.1996 -] BXD20 |
57047-65030 |
US $170.35 |
||
|
57416A
|
57416A
57048-65010 Rail Sub-Assy, Floor Side, Rear Lh[01.1996 -] BXD20 |
57048-65010 |
US $170.35 |
||
|
57423
|
57423
57423-65020 Bracket, Front Floor Reinforcement, Rh[01.1996 -] BXD20 |
57423-65020 |
US $15 |
||
|
57424A
|
57424A
57423-65020 Bracket, Front Floor Reinforcement, Rh[01.1996 -] BXD20 |
57423-65020 |
US $15 |
||
|
57427
|
57427
57427-65010 Reinforcement, Front Floor To Brace[01.1996 -] BXD20 |
57427-65010 |
US $36.25 |
||
|
57437B
|
57437B
57437-65010 Plate, Rear Step Side, Rh[12.1996 -] BXD20 |
57437-65010 |
US $14.27 |
||
|
57452
|
57452
57452-65020 Member, Front Floor Cross, Lh[01.1996 -] BXD20 |
57452-65020 |
US $104.83 |
||
|
57457D
|
57457D
57457-65010 Patch, Floor Side Member, Rear Rh[01.1996 - 06.1999] BXD20 |
57457-65010 |
US $6.84 |
||
|
57458B
|
57458B
57458-65020 Patch, Floor Side Member, Rear Lh[01.1996 - 06.1999] BXD20 |
57458-65020 |
US $6.84 |
||
|
57463A
|
57463A
57053-65010 Reinforcement, Center Floor Crossmember[01.1996 -] BXD20 |
57053-65010 |
US $126.67 |
||
|
57831A
|
57831A
57831-65010 Reinforcement, Rear No.1 Seat Leg, Front No.1[01.1996 -] BXD20 |
57831-65010 |
US $42.95 |
||
|
58027C
|
58027C
58027-65050 Panel Sub-Assy, Center Floor Side, Rh[01.1996 -] BXD20 |
58027-65050 |
US $317.41 |
||
|
58028C
|
58028C
58028-65050 Panel Sub-Assy, Center Floor Side, Lh[01.1996 -] BXD20 |
58028-65050 |
US $317.41 |
||
|
58105A
|
58105A
58105-65020 Bracket Sub-Assy, Front Seat Mounting, Outside, Rh[01.1996 -] BXD20 |
58105-65020 |
US $145.60 |
||
|
58111A
|
58111A
58111-65060 Pan, Front Floor, Rh[01.1996 -] BXD20 |
58111-65060 |
US $703.25 |
||
|
58111C
|
58111C
58111-65020 Pan, Front Floor[01.1996 - 06.1999] BXD20 |
58111-65020 |
US $16.45 |
||
|
58112A
|
58112A
58112-65040 Panel, Front Floor, Lh[01.1996 -] BXD20 |
58112-65040 |
US $703.25 |
||
|
58113A
|
58113A
58113-65060 Panel, Front Floor, Center[01.1996 -] BXD20 |
58113-65060 |
US $532.90 |
||
|
58169C
|
58169C
58169-65010 Patch, Front Floor Rear[01.1996 - 06.1999] BXD20 |
58169-65010 |
US $9.61 |
||
|
58182A
|
58182A
58182-65040 Retainer, Seat Rail, No.2[01.1996 -] BXD20 |
58182-65040 |
US $32.76 |
||
|
58188A
|
58188A
58188-65010 Bracket, Accelerator Pedal Stopper[01.1996 - 06.1999] BXD20 |
58188-65010 |
US $9.46 |
||
|
58191
|
58191
58190-65010 Footrest, Front Floor[01.1996 -] BXD20 |
58190-65010 |
US $68.14 |
||
|
58196A
|
58196A
58196-65010 Trim, Footrest[01.1996 -] BXD20 |
58196-65010 |
US $37.86 |
||
|
58205C
|
58205C
58205-65030 Panel Sub-Assy, Shift Lever Housing[01.1996 -] BXD20 |
58205-65030 |
US $371.28 |
||
|
58209D
|
58209D
58209-65010 Cover Sub-Assy, Battery Box[01.1996 -] BXD20 |
58209-65010 |
US $161.62 |
||
|
58223G
|
58223G
58223-65010 Reinforcement, Seat Set, No.1[01.1996 -] BXD20 |
58223-65010 |
US $17.04 |
||
|
58225C
|
58225C
58225-65010 Holder, Rear Seat Cushion[01.1996 - 06.1999] BXD20 |
58225-65010 |
US $12.81 |
||
|
58227B
|
58227B
58227-65020 Plate, Front Floor Panel Side, Rh[01.1996 -] BXD20 |
58227-65020 |
US $43.10 |
||
|
58228E
|
58228E
58228-65030 Plate, Front Floor Panel Side, Lh[01.1996 -] BXD20 |
58228-65030 |
US $43.10 |
||
|
58241E
|
58241E
58241-65120 Panel, Floor Side, Front Rh[01.1996 -] BXD20 |
58241-65120 |
US $100.46 |
||
|
58241F
|
58241F
58241-65110 Panel, Floor Side, Rh[01.1996 -] BXD20 |
58241-65110 |
US $198.02 |
||
|
58242E
|
58242E
58242-65100 Panel, Floor Side, Front Lh[01.1996 -] BXD20 |
58242-65100 |
US $147.06 |
||
|
58242F
|
58242F
58242-65090 Panel, Floor Side, Lh[01.1996 -] BXD20 |
58242-65090 |
US $198.02 |
||
|
58243
|
58243
58243-65040 Panel, Rear Floor Side, Rh[01.1996 -] BXD20 |
58243-65040 |
US $126.67 |
||
|
58244
|
58244
58244-65050 Panel, Rear Floor Side, Lh[01.1996 -] BXD20 |
58244-65050 |
US $126.67 |
||
|
58245B
|
58245B
58245-65020 Bracket, Transceiver, No.1 Rh[01.1996 - 06.1999] BXD20 |
58245-65020 |
US $16.89 |
||
|
58246F
|
58246F
58246-65010 Bracket, Transceiver, No.1 Lh[01.1996 - 06.1999] BXD20 |
58246-65010 |
US $16.89 |
||
|
58247E
|
58247E
58247-65010 Bracket, Transceiver, No.2[01.1996 - 06.1999] BXD20 |
58247-65010 |
US $11.36 |
||
|
58249F
|
58249F
58249-65010 Bracket, Transceiver, No.3[01.1996 - 06.1999] BXD20 |
58249-65010 |
US $4.66 |
||
|
58253F
|
58253F
58253-65010 Bracket, Parking Brake Cable[01.1996 - 06.1999] BXD20 |
58253-65010 |
US $9.17 |
||
|
58298A
|
58298A
58298-65010 Reinforcement, Seat Belt Anchor Floor, Rh[01.1996 -] BXD20 |
58298-65010 |
US $50.52 |
||
|
58299B
|
58299B
58299-65020 Reinforcement, Seat Belt Anchor Floor, Lh[01.1996 -] BXD20 |
58299-65020 |
US $50.52 |
||
|
58319F
|
58319F
58319-65030 Bracket, Rear Floor Side Panel[01.1996 -] BXD20 |
58319-65030 |
US $8.59 |
||
|
58389E
|
58389E
58389-65040 Bracket, Heater Hose Clamp, No.2[01.1996 - 06.1999] BXD20 |
58389-65040 |
US $123.76 |
||
|
58449D
|
58449D
58449-65010 Packing, Battery Service Hole Cover[01.1996 -] BXD20 |
58449-65010 |
US $58.53 |
||
|
58709B
|
58709B
58709-95J01
Catch, Engine Service Hole Cover
[01.1996 -] BXD20 |
58709-95J01 |
— | ||
|
58996B
|
58996B
58996-65010 Bracket, Console Box Mounting, No.2[01.1996 -] BXD20 |
58996-65010 |
US $39.89 |
||
|
61768D
|
61768D
61768-65020 Reinforcement, Seat Belt Anchor[01.1996 -] BXD20 |
61768-65020 |
US $15.58 |
||
|
61769D
|
61769D
61768-65020 Reinforcement, Seat Belt Anchor[01.1996 -] BXD20 |
61768-65020 |
US $15.58 |
||
|
9011906166
|
9011906166
90119-06166 BOLT |
90119-06166 |
US $1.43 |
||
|
9017906036
|
9017906036
90179-06036
Nut, Cap(For Cylinder Head Cover)
|
90179-06036 |
— | ||
| replacement | |||||
|
9017906036
|
9017906036
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.65 |
||
|
9054109126
|
9054109126
90541-09126 Cushion, No.1 |
90541-09126 |
US $2.33 |
||
|
9165260616
|
9165260616
91652-60616 New Genuine Part |
91652-60616 |
US $1.46 |
||
