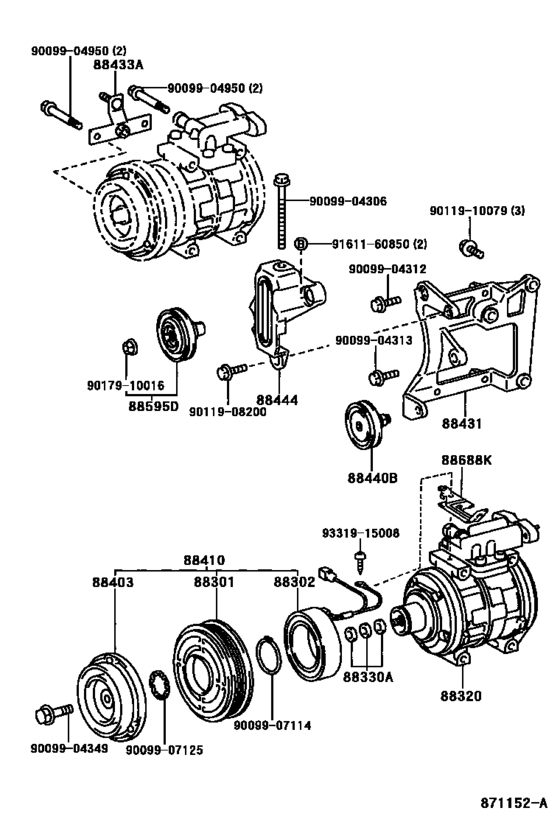

Heating & Air Conditioning - Compressor ([01.1996 - 06.1999] (9601-9906)) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFT
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 06.1999
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-26030
Rotor Sub-Assy, Magnet Clutch
[01.1996 - 06.1999] BXD20 |
88412-26030 |
— | ||
|
88302
|
88302
88411-60090
Stator Sub-Assy, Magnet Clutch
[01.1996 -] BXD20 |
88411-60090 |
— | ||
|
88320
|
88320
88320-65020
Compressor Assy, Cooler
[01.1996 - 06.1999] BXD20 |
88320-65020 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-26H91 Compressor Assy, Cooler[01.1996 - 06.1999] BXD20 |
88320-26H91 |
US $1,315.64 |
||
|
88330A
|
88330A
88335-14020 Washer[01.1996 -] BXD20 |
88335-14020 |
from US $1.25 |
||
|
88403
|
88403
88403-30290 Hub Sub-Assy, Magnet Clutch[01.1996 - 06.1999] BXD20 |
88403-30290 |
from US $86.66 |
||
|
88410
|
88410
88410-37020 Clutch Assy, Magnet[01.1996 - 06.1999] BXD20 |
88410-37020 |
US $495.04 |
||
|
88431
|
88431
88431-37020
Bracket, Compressor Mounting, No.1
[01.1996 - 06.1999] BXD20 |
88431-37020 |
— | ||
|
88433A
|
88433A
88433-65011
Stay, Compressor
[01.1996 - 04.1996] BXD20 |
88433-65011 |
— | ||
| replacement | |||||
|
88433A
|
88433A
88433-65020
Stay, Compressor
[01.1996 - 04.1996] BXD20 |
88433-65020 |
— | ||
|
88433A
|
88433A
88433-65020
Stay, Compressor
[04.1996 - 06.1999] BXD20 |
88433-65020 |
— | ||
|
88440B
|
88440B
44350-36040
Pulley Assy, Idle
[01.1996 -] BXD20 |
44350-36040 |
— | ||
|
88444
|
88444
88444-37020
Bracket, Idle Pulley
[01.1996 -] BXD20 |
88444-37020 |
— | ||
|
88595D
|
88595D
88440-12160 Pulley Assy, Power Steering Idle[01.1996 -] BXD20 |
88440-12160 |
from US $64.80 |
||
|
88688K
|
88688K
88688-37320
Bracket, Cooler Compressor
[12.1996 - 06.1999] BXD20 |
88688-37320 |
— | ||
|
9009904306
|
9009904306
90099-04306 Bolt, Idle Pulley |
90099-04306 |
US $1.92 |
||
|
9009904312
|
9009904312
90099-04312
New Genuine Part
|
90099-04312 |
— | ||
|
9009904313
|
9009904313
90099-04313 BOLT |
90099-04313 |
US $1.92 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904950
|
9009904950
90099-04950
BOLT
|
90099-04950 |
— | ||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $0.99 |
||
|
9009907125
|
9009907125
90099-07125 Ring, Snap |
90099-07125 |
from US $0.95 |
||
|
9011908200
|
9011908200
90119-08200 BOLT |
90119-08200 |
US $1.79 |
||
|
9011910079
|
9011910079
90119-10079 Bolt(For Front Suspension Lower Arm No.1 Rh) |
90119-10079 |
US $3.03 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.87 |
||
|
9161160850
|
9161160850
91611-60850 Bolt(For Rocker Support Set) |
91611-60850 |
US $1.51 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.06 |
||
