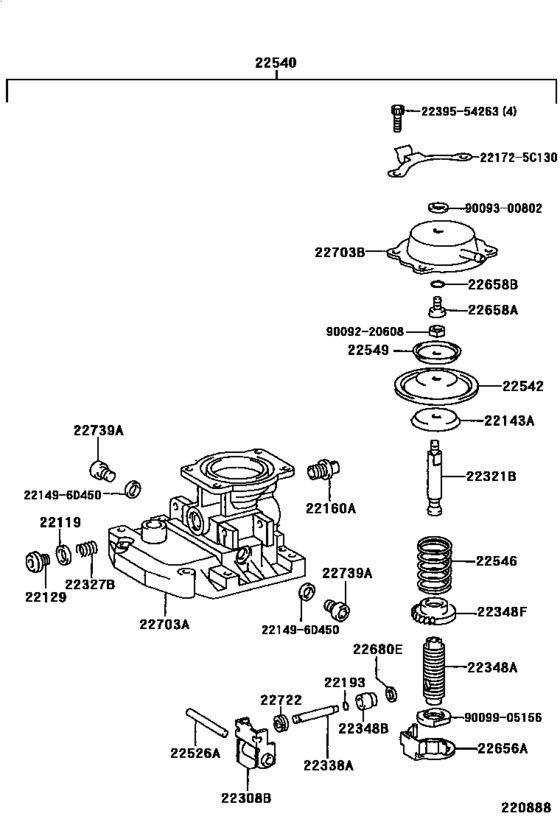

Injection Pump Body ([01.1996 - 06.1999] (9601-9906)) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFT
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 06.1999
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[01.1996 - 06.1999] 15BFT..BXD20 |
90201-12109 |
from US $1.25 |
||
|
22129
|
22129
22129-55110
Plug, Screw
[01.1996 - 06.1999] 15BFT..BXD20 |
22129-55110 |
— | ||
|
22143A
|
22143A
22143-54260
Seat, Spring Upper
[01.1996 - 06.1999] 15BFT..BXD20 |
22143-54260 |
— | ||
|
22160A
|
22160A
22160-54262
Screw Sub-Assy, Overflow
[01.1996 - 06.1999] 15BFT..BXD20 |
22160-54262 |
— | ||
|
22193
|
22193
22193-55031
Ring, O(For Lever Connecting Pin)
[01.1996 - 06.1999] 15BFT..BXD20 |
22193-55031 |
— | ||
|
22308B
|
22308B
22308-54140
Lever Sub-Assy, Control
[01.1996 - 06.1999] 15BFT..BXD20 |
22308-54140 |
— | ||
| replacement | |||||
|
22308B
|
22308B
22308-17570
Lever Sub-Assy, Control
[01.1996 - 06.1999] 15BFT..BXD20 |
22308-17570 |
— | ||
|
22321B
|
22321B
22321-5C130
Rod, Push(For Altitude Compensating Timer Advancer)
[01.1996 - 06.1999] 15BFT..BXD20 |
22321-5C130 |
— | ||
|
22327B
|
22327B
22327-58780
Spring(For Altitude Compensating Timer Advancer)
[01.1996 - 06.1999] 15BFT..BXD20 |
22327-58780 |
— | ||
|
22338A
|
22338A
22338-54120
Pin, Lever Connecting
[01.1996 - 06.1999] 15BFT..BXD20 |
22338-54120 |
— | ||
|
22348A
|
22348A
22348-64360
Bushing, Guide
[01.1996 - 06.1999] 15BFT..BXD20 |
22348-64360 |
— | ||
|
22348B
|
22348B
22348-54121
Bushing, Guide
[01.1996 - 06.1999] 15BFT..BXD20 |
22348-54121 |
— | ||
|
22348F
|
22348F
22348-54490 Bushing, Guide[01.1996 - 06.1999] 15BFT..BXD20 |
22348-54490 |
US $17.16 |
||
|
22526A
|
22526A
22526-54120
Pin, Lever Support
[01.1996 - 06.1999] 15BFT..BXD20 |
22526-54120 |
— | ||
|
22540
|
22540
22540-5C130
Compensator Sub-Assy, Boost
[01.1996 - 06.1999] 15BFT..BXD20 |
22540-5C130 |
— | ||
|
22542
|
22542
22542-54260 Diaphragm(For Boost Compensator)[01.1996 - 06.1999] 15BFT..BXD20 |
22542-54260 |
from US $5.24 |
||
|
22546
|
22546
22546-54260
Spring, Boost Compensator
[01.1996 - 06.1999] 15BFT..BXD20 バネ定数＝１．６０，長さ＝１９．８ |
22546-54260 |
— | ||
|
22546
|
22546
22546-54261
Spring, Boost Compensator
[01.1996 - 06.1999] 15BFT..BXD20 バネ定数＝１．８０，長さ＝１９．８ |
22546-54261 |
— | ||
|
22546
|
22546
22546-54490
Spring, Boost Compensator
[01.1996 - 06.1999] 15BFT..BXD20 バネ定数＝２．１０，長さ＝２０．３ |
22546-54490 |
— | ||
|
22546
|
22546
22546-54491
Spring, Boost Compensator
[01.1996 - 06.1999] 15BFT..BXD20 バネ定数＝２．３０，長さ＝１９．７ |
22546-54491 |
— | ||
|
22546
|
22546
22546-54492
Spring, Boost Compensator
[01.1996 - 06.1999] 15BFT..BXD20 バネ定数＝２．５０，長さ＝１９．２ |
22546-54492 |
— | ||
|
22549
|
22549
22549-17140
Seat, Spring Upper, No.2
[01.1996 - 06.1999] 15BFT..BXD20 |
22549-17140 |
— | ||
|
22656A
|
22656A
22656-54490
Clip, Timer
[01.1996 - 06.1999] 15BFT..BXD20 |
22656-54490 |
— | ||
|
22658A
|
22658A
22658-64518
Stopper, Timer
[01.1996 - 06.1999] 15BFT..BXD20 |
22658-64518 |
— | ||
|
22658B
|
22658B
22193-54561
Ring, O(For Lever Connecting Pin)
[01.1996 - 06.1999] 15BFT..BXD20 |
22193-54561 |
— | ||
|
22680E
|
22680E
90099-01473
Washer(For Guide Bushing)
[01.1996 - 06.1999] 15BFT..BXD20 |
90099-01473 |
— | ||
|
22703A
|
22703A
22703-64850
Cover Sub-Assy, Governor
[01.1996 - 06.1999] 15BFT..BXD20 |
22703-64850 |
— | ||
|
22703B
|
22703B
22703-54262
Cover Sub-Assy, Governor
[01.1996 - 06.1999] 15BFT..BXD20 |
22703-54262 |
— | ||
|
22722
|
22722
22722-54120
Nut, Governor Shaft Rock
[01.1996 - 06.1999] 15BFT..BXD20 |
22722-54120 |
— | ||
|
22739A
|
22739A
22739-54120
Bolt, Governor Link Support
[01.1996 - 06.1999] 15BFT..BXD20 |
22739-54120 |
— | ||
|
221496D450
|
221496D450
22149-6D450
Gasket, Delivery Valve
|
22149-6D450 |
— | ||
|
221725C130
|
221725C130
22172-5C130
Clip, Connector Support, Solenoid
|
22172-5C130 |
— | ||
|
2239554263
|
2239554263
22395-54263
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-54263 |
— | ||
|
9009220608
|
9009220608
90092-20608
New Genuine Part
|
90092-20608 |
— | ||
|
9009300802
|
9009300802
90093-00802
Washer, Plate(For Connecting Pin)
|
90093-00802 |
— | ||
|
9009905156
|
9009905156
90099-05156
New Genuine Part
|
90099-05156 |
— | ||
