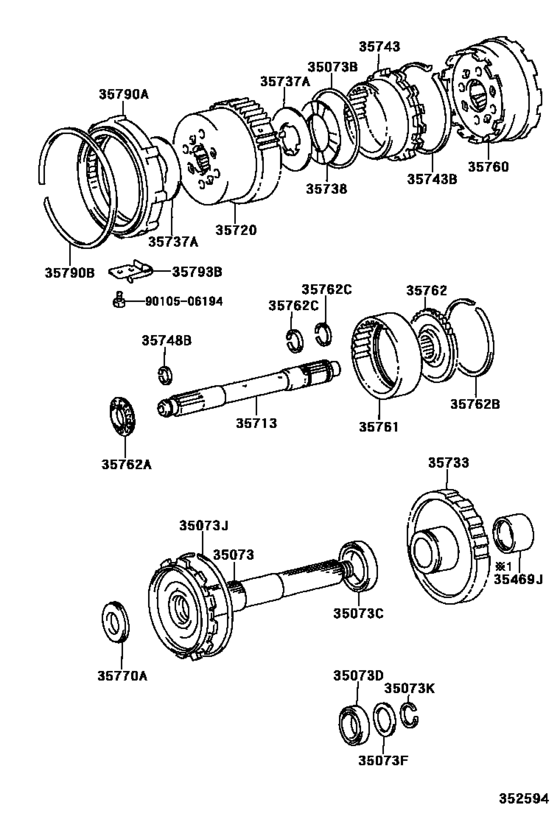

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.1996 - ] A442F,A443F (9601- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFT
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 06.1999
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35073
|
35073
35073-60080 Shaft Sub-Assy, Output[01.1996 - 06.1999] BXD20 |
35073-60080 |
US $816.82 |
||
|
35073B
|
35073B
90301-99076 Ring, O (For Output Shaft)[01.1996 - 10.2001] BXD20 |
90301-99076 |
US $2.77 |
||
|
35073C
|
35073C
90363-45008 Bearing, Radial Ball (For Output Shaft Front)[01.1996 - 10.2001] BXD20 |
90363-45008 |
US $32.26 |
||
|
35073D
|
35073D
90363-40059 Bearing, Radial Ball (For Output Shaft Rear)[01.1996 - 10.2001] BXD20 |
90363-40059 |
US $29.57 |
||
|
35073F
|
35073F
90560-40002 Spacer, No.1 (For Output Shaft Rear Bearing)[01.1996 - 10.2001] BXD20 厚さ＝１．５，マーク ０ |
90560-40002 |
US $0.70 |
||
|
35073F
|
35073F
90560-40003 Spacer, No.1 (For Output Shaft Rear Bearing)[01.1996 - 10.2001] BXD20 厚さ＝１．６，マーク １ |
90560-40003 |
US $1.16 |
||
|
35073F
|
35073F
90560-40004 Spacer, No.1 (For Output Shaft Rear Bearing)[01.1996 - 10.2001] BXD20 厚さ＝１．７，マーク ２ |
90560-40004 |
US $1.16 |
||
|
35073F
|
35073F
90560-40005 Spacer, No.1 (For Output Shaft Rear Bearing)[01.1996 - 10.2001] BXD20 厚さ＝１．８，マーク ３ |
90560-40005 |
US $1.16 |
||
|
35073J
|
35073J
90521-99041 Ring, Hole Snap (For Output Shaft)[01.1996 - 06.1999] BXD20 |
90521-99041 |
US $3.20 |
||
|
35073K
|
35073K
90520-36024 Ring, Shaft Snap (For Output Shaft Rear Bearing)[01.1996 - 10.2001] BXD20 |
90520-36024 |
US $1.79 |
||
|
35469J
|
35469J
35469-60010 Spacer, Parking Lock Gear[01.1996 - 06.1999] BXD20 |
35469-60010 |
US $26.50 |
||
|
35713
|
35713
35713-60010 Shaft, Intermediate[01.1996 - 06.1999] BXD20 |
35713-60010 |
US $104.83 |
||
|
35720
|
35720
35720-37010 Gear Assy, Front Planetary[01.1996 - 09.1997] BXD20 |
35720-37010 |
US $1,064.34 |
||
| replacement | |||||
|
35720
|
35720
35720-37011 Gear Assy, Front Planetary[01.1996 - 09.1997] BXD20 |
35720-37011 |
US $1,064.34 |
||
|
35720
|
35720
35720-37011 Gear Assy, Front Planetary[09.1997 - 06.1999] BXD20 |
35720-37011 |
US $1,064.34 |
||
|
35733
|
35733
35733-60020 Gear, Parking Lock[01.1996 - 06.1999] BXD20 |
35733-60020 |
US $168.90 |
||
|
35737A
|
35737A
35737-60011 Washer, Planetary Carrier Thrust, No.1[01.1996 - 10.2001] BXD20 |
35737-60011 |
US $9.26 |
||
|
35738
|
35738
35738-36020 Washer, Planetary Carrier Thrust, No.2[01.1996 - 10.2001] BXD20 |
35738-36020 |
US $5.64 |
||
|
35743
|
35743
35743-37010 Gear, Front Planetary Ring[01.1996 - 06.1999] BXD20 |
35743-37010 |
US $186.37 |
||
|
35743B
|
35743B
90521-99018 Ring, Hole Snap (For Direct Clutch Flange)[01.1996 - 10.2001] BXD20 |
90521-99018 |
US $2.48 |
||
|
35748B
|
35748B
35748-36010 Ring, Intermediate Shaft Oil Seal[01.1996 - 10.2001] BXD20 |
35748-36010 |
US $5.42 |
||
|
35760
|
35760
35760-37010 Gear Assy, Rear Planetary[01.1996 - 09.1997] BXD20 |
35760-37010 |
US $1,209.94 |
||
| replacement | |||||
|
35760
|
35760
35760-37011 Gear Assy, Rear Planetary[01.1996 - 09.1997] BXD20 |
35760-37011 |
US $1,209.94 |
||
|
35760
|
35760
35760-37011 Gear Assy, Rear Planetary[09.1997 - 06.1999] BXD20 |
35760-37011 |
US $1,209.94 |
||
|
35761
|
35761
35761-37010
Gear, Rear Planetary Ring
[01.1996 - 06.1999] BXD20 |
35761-37010 |
— | ||
|
35762
|
35762
35762-37010 Flange, Rear Planetary Ring Gear[01.1996 - 06.1999] BXD20 |
35762-37010 |
US $142.69 |
||
|
35762A
|
35762A
90374-32005 Bearing, Thrust(For Front Clutch Hub)[01.1996 - 01.1998] BXD20 |
90374-32005 |
US $12.11 |
||
|
35762A
|
35762A
90374-32006 Bearing, Thrust Needle Roller (For Rear Planetary Flange)[01.1998 - 10.2001] BXD20 |
90374-32006 |
US $8.56 |
||
|
35762B
|
35762B
90521-99041 Ring, Hole Snap (For Output Shaft)[01.1996 - 10.2001] BXD20 |
90521-99041 |
US $3.20 |
||
|
35762C
|
35762C
90520-22013 Ring, Shaft Snap (For Rear Planetary Ring Gear)[01.1996 - 06.1999] BXD20 |
90520-22013 |
US $2.33 |
||
|
35770A
|
35770A
90374-32005 Bearing, Thrust(For Front Clutch Hub)[01.1996 - 01.1998] BXD20 |
90374-32005 |
US $12.11 |
||
|
35770A
|
35770A
90374-32006 Bearing, Thrust Needle Roller (For Rear Planetary Flange)[01.1998 - 10.2001] BXD20 |
90374-32006 |
US $8.56 |
||
|
35790A
|
35790A
35790-36020 Clutch Assy, 1 Way[01.1996 - 10.2001] BXD20 |
35790-36020 |
US $354.68 |
||
|
35790B
|
35790B
90521-99109 Ring, Hole Snap (For Overdrive Brake Return Spring)[01.1996 - 10.2001] BXD20 |
90521-99109 |
US $3.40 |
||
|
35793B
|
35793B
35793-60010 Retainer, 1 Way Clutch[01.1996 - 10.2001] BXD20 |
35793-60010 |
US $4.37 |
||
|
9010506194
|
9010506194
90105-06194 Bolt (For Center Support) |
90105-06194 |
US $0.87 |
||
