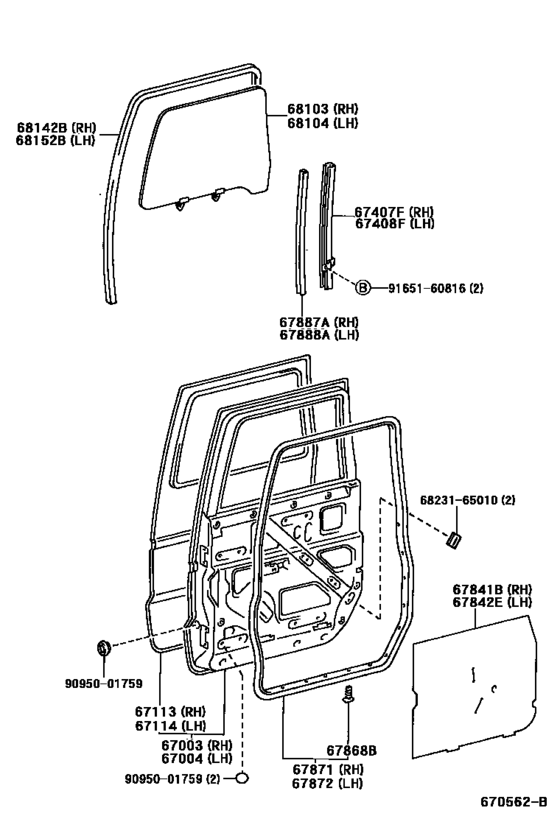

Rear Door Panel & Glass ([01.1996 - ] (9601- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFT
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 06.1999
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
67003-65010 Panel Sub-Assy, Rear Door, Rh[01.1996 -] BXD20 |
67003-65010 |
US $1,543.36 |
||
|
67004
|
67004
67004-65010 Panel Sub-Assy, Rear Door, Lh[01.1996 -] BXD20 |
67004-65010 |
US $1,543.36 |
||
|
67113
|
67113
67113-65020 Panel, Rear Door, Outer Rh[01.1996 -] BXD20 |
67113-65020 |
US $666.85 |
||
|
67114
|
67114
67114-65020 Panel, Rear Door, Outer Lh[01.1996 -] BXD20 |
67114-65020 |
US $666.85 |
||
|
67407F
|
67407F
67407-65010 Frame Sub-Assy, Rear Door Window, Rear Lower Rh[01.1996 -] BXD20 |
67407-65010 |
US $47.61 |
||
|
67408F
|
67408F
67408-65010 Frame Sub-Assy, Rear Door Window, Rear Lower Lh[01.1996 -] BXD20 |
67408-65010 |
US $47.61 |
||
|
67841B
|
67841B
67831-65010 Cover, Front Door Service Hole, Rh[01.1996 -] BXD20 |
67831-65010 |
US $37.56 |
||
|
67842E
|
67842E
67831-65010 Cover, Front Door Service Hole, Rh[01.1996 -] BXD20 |
67831-65010 |
US $37.56 |
||
|
67868B
|
67868B
67867-12150 Clip(For Hood Air Intake Duct Seal)[01.1996 -] BXD20 |
67867-12150 |
from US $1.79 |
||
|
67871
|
67871
67861-65030
Weatherstrip, Front Door, Rh
[01.1996 -] BXD20 |
67861-65030 |
— | ||
|
67872
|
67872
67862-65020
Weatherstrip, Front Door, Lh
[01.1996 -] BXD20 |
67862-65020 |
— | ||
|
67887A
|
67887A
67887-65020 Weatherstrip, Front Door, No.2 Rh[01.1996 -] BXD20 |
67887-65020 |
US $38.44 |
||
|
67888A
|
67888A
67887-65020 Weatherstrip, Front Door, No.2 Rh[01.1996 -] BXD20 |
67887-65020 |
US $38.44 |
||
|
68103
|
68103
68103-65020 Glass Sub-Assy, Rear Door, Rh[01.1996 -] BXD20 ＊ＴＴ，厚さ＝３．５，グリーン |
68103-65020 |
US $294.11 |
||
|
68104
|
68104
68104-65020
Glass Sub-Assy, Rear Door, Lh
[01.1996 -] BXD20 ＊ＴＴ，厚さ＝３．５，グリーン |
68104-65020 |
— | ||
|
68142B
|
68142B
68142-65010 Run, Rear Door Window, Rh[01.1996 -] BXD20 |
68142-65010 |
US $85.90 |
||
|
68152B
|
68152B
68152-65010 Run, Rear Door Window, Lh[01.1996 -] BXD20 |
68152-65010 |
US $85.90 |
||
|
6823165010
|
6823165010
68231-65010 Seal, Front Door Drain Hole Dust |
68231-65010 |
US $2.33 |
||
|
9095001759
|
9095001759
90950-01759 PLUG |
90950-01759 |
from US $2.03 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
