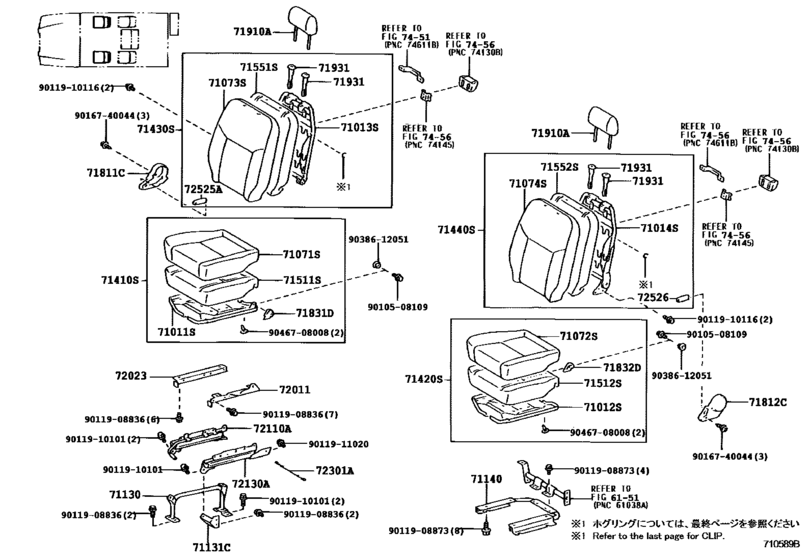

Seat & Seat Track ([01.1996 - ] (9601- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFT
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 06.1999
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71011S
|
71011S
71011-65030 Frame Sub-Assy, Front Seat Cushion, Rh[01.1996 -] BXD20 |
71011-65030 |
US $161.62 |
||
|
71012S
|
71012S
71012-65020 Frame Sub-Assy, Front Seat Cushion, Lh[01.1996 -] BXD20 |
71012-65020 |
US $161.62 |
||
|
71013S
|
71013S
71013-65010 Frame Sub-Assy, Front Seat Back, Rh[01.1996 -] BXD20 |
71013-65010 |
US $263.54 |
||
|
71014S
|
71014S
71014-65030 Frame Sub-Assy, Front Seat Back, Lh[01.1996 -] BXD20 |
71014-65030 |
US $244.61 |
||
|
71071S
|
71071S
71071-65040-B0 Cover, Front Seat Cushion, Rh(For Separate Type)[01.1996 - 10.2001] BXD20 BLUISH GRAY,TRIM1# |
71071-65040-B0 |
US $445.54 |
||
|
71072S
|
71072S
71072-65050-B0 Cover, Front Seat Cushion, Lh(For Separate Type)[01.1996 - 10.2001] BXD20 BLUISH GRAY,TRIM1# |
71072-65050-B0 |
US $445.54 |
||
|
71073S
|
71073S
71073-65050-B0 Cover, Front Seat Back, Rh(For Separate Type)[01.1996 - 10.2001] BXD20 BLUISH GRAY,TRIM1# |
71073-65050-B0 |
US $598.42 |
||
|
71074S
|
71074S
71074-65060-B0 Cover, Front Seat Back, Lh(For Separate Type)[01.1996 - 10.2001] BXD20 BLUISH GRAY,TRIM1# |
71074-65060-B0 |
US $598.42 |
||
|
71130
|
71130
79110-65010 Leg Assy, Front Seat, Rh[01.1996 -] BXD20 |
79110-65010 |
US $88.82 |
||
|
71131C
|
71131C
79118-65010 Bracket, Front Seat Leg, Front Rh[01.1996 -] BXD20 |
79118-65010 |
US $29.41 |
||
|
71140
|
71140
79120-65010 Leg Assy, Front Seat, Lh[01.1996 -] BXD20 |
79120-65010 |
US $238.78 |
||
|
71410S
|
71410S
71410-65040-B0 Cushion Assy, Front Seat, Rh(For Separate Type)[01.1996 - 10.2001] BXD20 ***,BLUISH GRAY,TRIM1# |
71410-65040-B0 |
US $956.59 |
||
|
71420S
|
71420S
71420-65040-B0 Cushion Assy, Front Seat, Lh (For Separate Type)[01.1996 - 10.2001] BXD20 ***,BLUISH GRAY,TRIM1# |
71420-65040-B0 |
US $956.59 |
||
|
71430S
|
71430S
71401-65020-B0 Back Assy, Front Seat, Rh(For Separate Type)[01.1996 - 10.2001] BXD20 ***,BLUISH GRAY,TRIM1# |
71401-65020-B0 |
US $1,172.08 |
||
|
71440S
|
71440S
71402-65030-B0 Back Assy, Front Seat, Lh(For Separate Type)[01.1996 - 10.2001] BXD20 ***,BLUISH GRAY,TRIM1# |
71402-65030-B0 |
US $1,172.08 |
||
|
71511S
|
71511S
71511-65020 Pad, Front Seat Cushion, Rh(For Separate Type)[01.1996 -] BXD20 |
71511-65020 |
US $283.92 |
||
|
71512S
|
71512S
71511-65020 Pad, Front Seat Cushion, Rh(For Separate Type)[01.1996 -] BXD20 |
71511-65020 |
US $283.92 |
||
|
71551S
|
71551S
71551-95J20 Pad, Front Seat Back, Rh(For Separate Type)[01.1996 -] BXD20 |
71551-95J20 |
US $187.82 |
||
|
71552S
|
71552S
71551-95J20 Pad, Front Seat Back, Rh(For Separate Type)[01.1996 -] BXD20 |
71551-95J20 |
US $187.82 |
||
|
71811C
|
71811C
71811-95J00-B0 Cover, Reclining Adjuster, Rh[01.1996 - 10.2001] BXD20 BLUISH GRAY,TRIM1# |
71811-95J00-B0 |
US $33.20 |
||
|
71812C
|
71812C
71812-95J00-B0 Cover, Reclining Adjuster, Lh[01.1996 - 10.2001] BXD20 GRAY,TRIM1# |
71812-95J00-B0 |
US $32.18 |
||
|
71831D
|
71831D
71831-95J00-B0 Cover, Front Seat Hinge, Rh[01.1996 - 10.2001] BXD20 BLUISH GRAY,TRIM1# |
71831-95J00-B0 |
US $6.81 |
||
|
71832D
|
71832D
71832-95J01-B0 Cover, Front Seat Hinge, Lh[01.1996 - 10.2001] BXD20 BLUISH GRAY,TRIM1# |
71832-95J01-B0 |
US $6.99 |
||
|
71910A
|
71910A
71910-65010-B0 Headrest Assy, Front Seat[01.1996 - 10.2001] BXD20 BLUISH GRAY,TRIM1# |
71910-65010-B0 |
US $519.79 |
||
|
71931
|
71931
71930-26010-B0
Support, Front Seat Headrest
[01.1996 - 10.2001] BXD20 ロック付,BLUISH GRAY,TRIM1# |
71930-26010-B0 |
— | ||
| replacement | |||||
|
71931
|
71931
71930-26010-B3 Support, Front Seat Headrest[01.1996 - 10.2001] BXD20 ロック付,BLUISH GRAY,TRIM1# |
71930-26010-B3 |
US $17.82 |
||
|
71931
|
71931
71931-26010-B0
Support, Front Seat Headrest
[01.1996 - 10.2001] BXD20 ロック無,BLUISH GRAY,TRIM1# |
71931-26010-B0 |
— | ||
| replacement | |||||
|
71931
|
71931
71931-26010-B3 Support, Front Seat Headrest[01.1996 - 10.2001] BXD20 ロック無,BLUISH GRAY,TRIM1# |
71931-26010-B3 |
US $13.28 |
||
|
72011
|
72011
72011-65010 Adjuster Sub-Assy, Front Seat, Outer Rh[01.1996 -] BXD20 |
72011-65010 |
US $53.73 |
||
|
72023
|
72023
72023-65010 Rail Sub-Assy, Front Out Seat Track, Upper Rh[01.1996 -] BXD20 |
72023-65010 |
US $93.18 |
||
|
72110A
|
72110A
72110-65020 Track Assy, Front Seat, Outer Rh[01.1996 -] BXD20 |
72110-65020 |
US $262.08 |
||
|
72130A
|
72130A
72130-65020 Track Assy, Front Seat, Inner Rh[01.1996 -] BXD20 |
72130-65020 |
US $186.37 |
||
|
72301A
|
72301A
72301-65010 Wire Sub-Assy, Seat Track Equalizing, Rh[01.1996 -] BXD20 |
72301-65010 |
US $12.23 |
||
|
72525A
|
72525A
72525-95J01-B0 Handle, Reclining Adjuster Release, Rh[01.1996 - 10.2001] BXD20 BLUISH GRAY,TRIM1# |
72525-95J01-B0 |
US $9.61 |
||
|
72526
|
72526
72525-95J01-B0 Handle, Reclining Adjuster Release, Rh[01.1996 - 10.2001] BXD20 BLUISH GRAY,TRIM1# |
72525-95J01-B0 |
US $9.61 |
||
|
9010508109
|
9010508109
90105-08109 New Genuine Part |
90105-08109 |
US $2.04 |
||
|
9011908836
|
9011908836
90119-08836 BOLT WWASHER |
90119-08836 |
from US $0.82 |
||
|
9011908873
|
9011908873
90119-08873 New Genuine Part |
90119-08873 |
US $2.04 |
||
|
9011910101
|
9011910101
90119-10101 BOLT |
90119-10101 |
US $3.44 |
||
|
9011910116
|
9011910116
90119-10116
New Genuine Part
|
90119-10116 |
— | ||
| replacement | |||||
|
9011910116
|
9011910116
90119-10229 BOLT |
90119-10229 |
US $3.67 |
||
|
9011911020
|
9011911020
90119-11020 New Genuine Part |
90119-11020 |
US $3.20 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.70 |
||
|
9038612051
|
9038612051
90386-12051 Bush (For Front Seat Hinge Pin) |
90386-12051 |
US $2.62 |
||
|
9046708008
|
9046708008
90467-08008 Clip, Step Plate Cover |
90467-08008 |
from US $2.51 |
||
