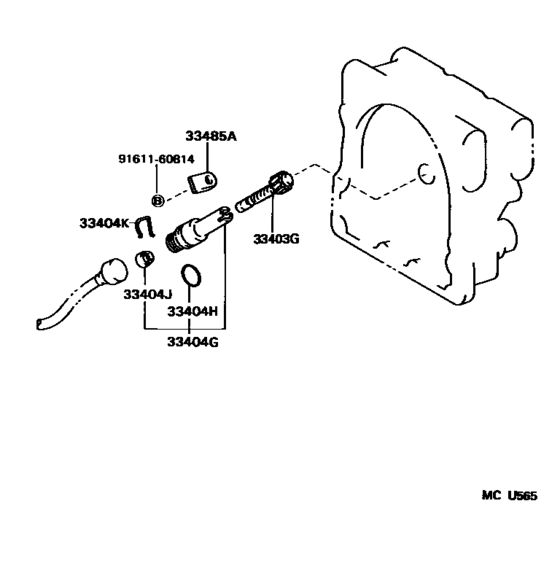

Speedometer Driven Gear (Atm) ([01.1996 - ] A442F,A443F (9601- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFT
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 06.1999
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33403G
|
33403G
33403-65020 Gear Sub-Assy, Speedometer Driven (Atm)[01.1996 -] BXD20 歯数＝３３，マーク ３３：１０ |
33403-65020 |
US $17.02 |
||
|
33404G
|
33404G
33404-22010 Sleeve Sub-Assy, Speedometer Shaft (Mtm)[01.1996 -] BXD20 |
33404-22010 |
from US $17.35 |
||
|
33404H
|
33404H
96711-24030 Ring,o (For Speedometer Driven Hole Cover)[01.1996 -] BXD20 |
96711-24030 |
from US $2.15 |
||
|
33404J
|
33404J
90310-09001 Seal, Oil (For Mtm Speedometer Shaft Sleeve)[01.1996 -] BXD20 |
90310-09001 |
from US $2.87 |
||
|
33404K
|
33404K
90468-12005 Clip (For Mtm Speedometer Shaft Sleeve)[01.1996 -] BXD20 |
90468-12005 |
US $1.61 |
||
|
33485A
|
33485A
33485-30020 Plate, Speedometer Sleeve Lock (For Atm)[01.1996 -] BXD20 |
33485-30020 |
from US $1.62 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
