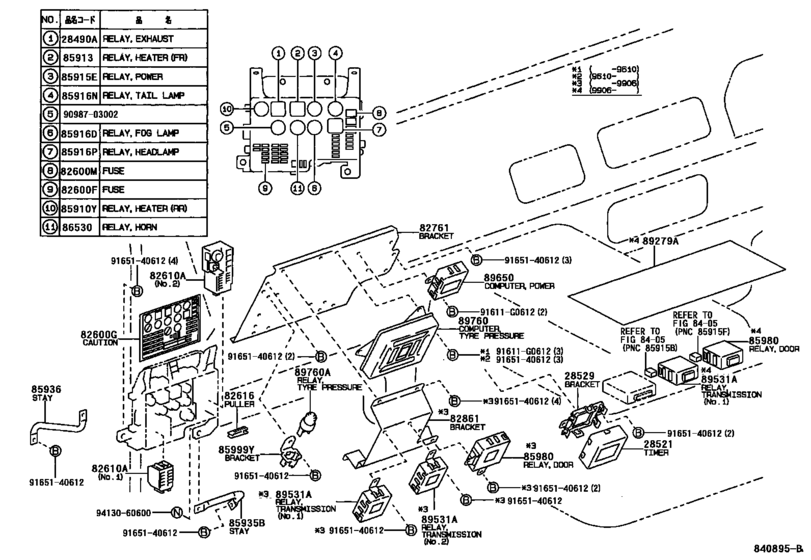

Switch & Relay & Computer ([01.1996 - ] ｲﾝﾊﾟﾈ ﾘﾚ- (9601- )) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFT
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 06.1999
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28490A
|
28490A
28490-56080 Relay Assy, Exhaust Retarder[01.1996 -] 15B#..BXD20 |
28490-56080 |
US $60.13 |
||
|
28521
|
28521
28521-58120 Timer, Preheating[01.1996 -] 15B#..BXD20 |
28521-58120 |
US $677.04 |
||
|
28529
|
28529
28529-54170 Bracket, Preheating Timer, No.1[01.1996 - 07.1997] 15BFT..BXD20 |
28529-54170 |
US $8.15 |
||
| replacement | |||||
|
28529
|
28529
28529-54380 Bracket, Preheating Timer, No.1[01.1996 - 07.1997] 15BFT..BXD20 |
28529-54380 |
US $6.55 |
||
|
28529
|
28529
28529-54380 Bracket, Preheating Timer, No.1[07.1997 -] 15B#..BXD20 |
28529-54380 |
US $6.55 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[01.1996 - 06.1999] BXD20 ５Ａ，ミニ ヒューズ |
90982-09007 |
from US $0.83 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[01.1996 - 06.1999] BXD20 ７．５Ａ，ミニ ヒューズ |
90982-09008 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[01.1996 - 06.1999] BXD20 １０Ａ，ミニ ヒューズ |
90982-09009 |
from US $0.83 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[01.1996 - 06.1999] BXD20 １５Ａ，ミニ ヒューズ |
90982-09010 |
from US $0.83 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[01.1996 - 06.1999] BXD20 ２０Ａ，ミニ ヒューズ |
90982-09011 |
from US $0.83 |
||
|
82600G
|
82600G
82683-65020
Plate, Caution(For Fuse)
[01.1996 - 06.1999] BXD20 |
82683-65020 |
— | ||
|
82600M
|
82600M
90982-10001 Instrument Panel Fusible Link[01.1996 - 06.1999] BXD20 ３０Ａ |
90982-10001 |
from US $2.93 |
||
|
82616
|
82616
82616-20010 Puller, Fuse[01.1996 -] BXD20 |
82616-20010 |
from US $2.19 |
||
|
82761
|
82761
82761-65010 Bracket, Relay Block, No.1[01.1996 - 06.1999] BXD20 |
82761-65010 |
US $113.57 |
||
|
82861
|
82861
82861-65010
Bracket, Computer Integration, No.1
[01.1996 - 06.1999] BXD20 |
82861-65010 |
— | ||
|
85910Y
|
85910Y
90987-02005 Relay, Ignition, No.1[01.1996 -] BXD20 |
90987-02005 |
from US $22.81 |
||
|
85913
|
85913
85913-90K00 Relay Assy (For Heater Blower Motor)[01.1996 -] BXD20 |
85913-90K00 |
from US $50.93 |
||
|
85915E
|
85915E
90987-02005 Relay, Ignition, No.1[01.1996 -] BXD20 |
90987-02005 |
from US $22.81 |
||
|
85916D
|
85916D
90987-02005 Relay, Ignition, No.1[01.1996 -] BXD20 |
90987-02005 |
from US $22.81 |
||
|
85916N
|
85916N
90987-02005 Relay, Ignition, No.1[01.1996 -] BXD20 |
90987-02005 |
from US $22.81 |
||
|
85916P
|
85916P
90987-02007 Relay, Light Control[01.1996 -] BXD20 |
90987-02007 |
US $32.40 |
||
|
85935B
|
85935B
85935-65020 Stay, Relay Bracket, No.2 Rh[01.1996 -] BXD20 |
85935-65020 |
US $28.10 |
||
|
85936
|
85936
85936-65020 Stay, Relay Bracket, Lh[01.1996 -] BXD20 |
85936-65020 |
US $33.49 |
||
|
85980
|
85980
85980-60100
Relay Assy, Door Control
[01.1996 -] BXD20 |
85980-60100 |
— | ||
|
85999Y
|
85999Y
85999-12050
Bracket, Main Relay
[01.1996 -] BXD20 |
85999-12050 |
— | ||
|
86530
|
86530
90987-02005 Relay, Ignition, No.1[01.1996 -] BXD20 |
90987-02005 |
from US $22.81 |
||
|
89531A
|
89531A
89531-65010 Relay, Transmission Control[01.1996 -] BXD20 ＮＯ．２ |
89531-65010 |
US $228.88 |
||
|
89531A
|
89531A
89531-65020 Relay[01.1996 -] BXD20 ＮＯ．１ |
89531-65020 |
US $235.87 |
||
|
89650
|
89650
89650-65010
Computer Assy, Power Steering
[01.1996 -] BXD20 |
89650-65010 |
— | ||
| replacement | |||||
|
89650
|
89650
89650-65011 Computer Assy, Power Steering[01.1996 -] BXD20 |
89650-65011 |
US $307.51 |
||
|
89760
|
89760
89760-65010 Computer Assy, Tire Pressure ControlTIRE PRESSURE CONTROL [01.1996 -] BXD20 |
89760-65010 |
US $1,415.23 |
||
|
89760A
|
89760A
90987-02005 Relay, Ignition, No.1[01.1996 -] BXD20 |
90987-02005 |
from US $22.81 |
||
|
91611G0612
|
91611G0612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.74 |
||
|
9098703002
|
9098703002
90987-03002 Relay, Turbo Indicator |
90987-03002 |
US $16.33 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.83 |
||
|
9413060600
|
9413060600
94130-60600 Nut, Wire Adjusting, No.1 |
94130-60600 |
from US $0.74 |
||
