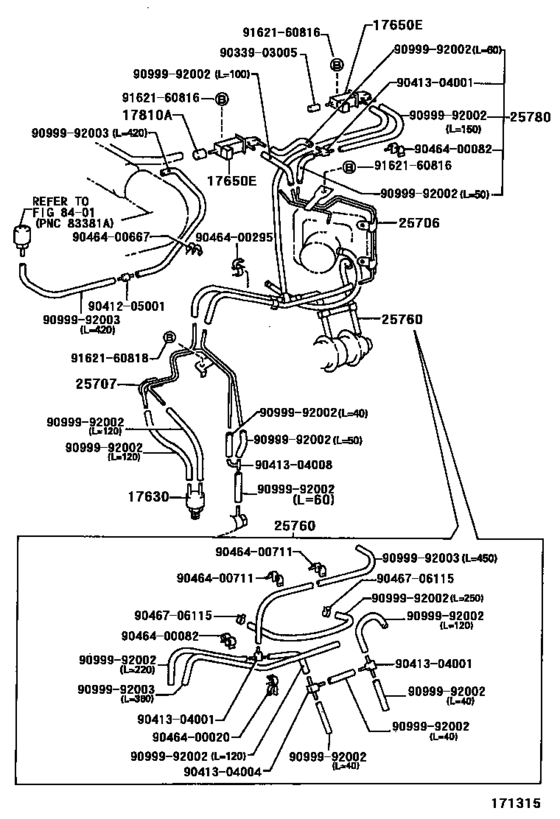

Vacuum Piping ([01.1996 - 06.1999] (9601-9906)) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFT
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 06.1999
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17630
|
17630
17630-15010 Valve Assy, Air Control[01.1996 - 06.1999] 15BFT..BXD20 |
17630-15010 |
US $134.53 |
||
|
17650E
|
17650E
90910-12020 Valve Assy, Vacuum Switching[01.1996 - 06.1999] 15BFT..BXD20 |
90910-12020 |
US $78.12 |
||
|
17810A
|
17810A
90925-06007 Filter Assy, Air[01.1996 - 06.1999] 15BFT..BXD20 |
90925-06007 |
US $7.86 |
||
|
25706
|
25706
25706-58070 Pipe Sub-Assy, Vacuum Transmitting, No.1[01.1996 - 06.1999] 15BFT..BXD20 |
25706-58070 |
US $44.41 |
||
|
25707
|
25707
25707-58060 Pipe Sub-Assy, Vacuum Transmitting, No.2[01.1996 - 06.1999] 15BFT..BXD20 |
25707-58060 |
US $31.16 |
||
|
25760
|
25760
25760-58290 Hose Assy, Vacuum Transmitting[01.1996 - 06.1999] 15BFT..BXD20 |
25760-58290 |
US $110.66 |
||
|
25780
|
25780
25780-58050 Hose Assy, Vacuum Transmitting, No.3[01.1996 - 06.1999] 15BFT..BXD20 |
25780-58050 |
US $9.90 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.73 |
||
|
9041205001
|
9041205001
90412-05001 Way, 2 |
90412-05001 |
US $2.61 |
||
|
9041304001
|
9041304001
90413-04001 Way, 3(For Transfer Breather Hose) |
90413-04001 |
US $5.56 |
||
|
9041304004
|
9041304004
90413-04004 Way, 3(For Canister) |
90413-04004 |
US $2.62 |
||
|
9041304008
|
9041304008
90413-04008 Way, 3(For Transfer Breather Hose) |
90413-04008 |
from US $6.46 |
||
|
9046400020
|
9046400020
90464-00020 New Genuine Part |
90464-00020 |
US $3.94 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9046400295
|
9046400295
90464-00295
New Genuine Part
|
90464-00295 |
— | ||
|
9046400667
|
9046400667
90464-00667
New Genuine Part
|
90464-00667 |
— | ||
|
9046400711
|
9046400711
90464-00711 New Genuine Part |
90464-00711 |
US $1.60 |
||
|
9046706115
|
9046706115
90467-06115 Clip(For Vacuum Hose) |
90467-06115 |
US $2.15 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.82 |
||
|
9162160818
|
9162160818
91621-60818
Bolt(For Automatic Transmission Case Protector)
|
91621-60818 |
— | ||
| replacement | |||||
|
9162160818
|
9162160818
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.97 |
||
