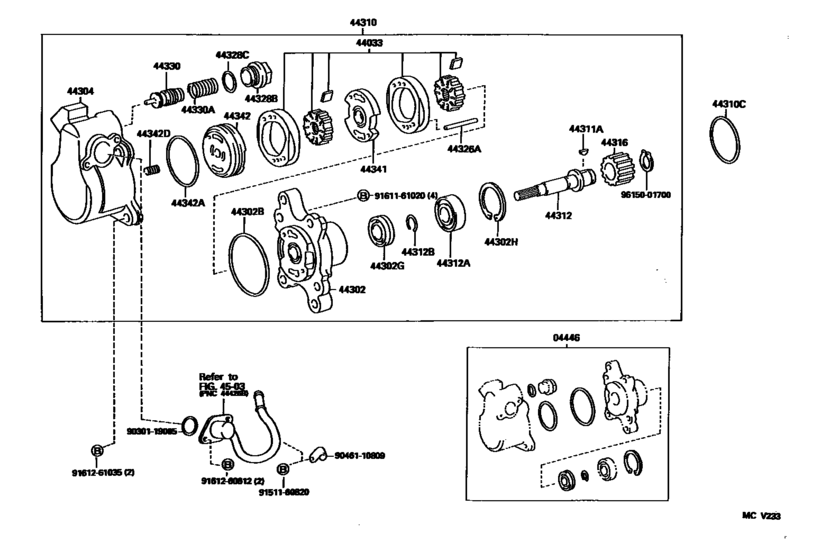

Vane Pump & Reservoir (Power Steering) ([01.1996 - 06.1999] (9601-9906)) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFT
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 06.1999
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-65010
Gasket Kit, Power Steering Pump
[01.1996 -] BXD20 |
04446-65010 |
— | ||
|
44033
|
44033
44033-36050
Rotor Sub-Assy, W/cam & Vane
[01.1996 -] BXD20 |
44033-36050 |
— | ||
|
44302
|
44302
44302-36220 Housing Sub-Assy, Vane Pump, Front[01.1996 - 06.1999] BXD20 |
44302-36220 |
US $266.45 |
||
|
44302B
|
44302B
90029-20043 Ring, O, No.1(For Vane Pump Housing)[01.1996 -] BXD20 |
90029-20043 |
US $2.62 |
||
|
44302G
|
44302G
90029-21018 Seal, Oil, No.2(For Vane Pump Housing)[01.1996 -] BXD20 |
90029-21018 |
from US $2.60 |
||
|
44302H
|
44302H
96151-04000 Ring, Snap(For Hydraulic Motor Vane Pump Drive Shaft)[01.1996 -] BXD20 |
96151-04000 |
US $2.33 |
||
|
44304
|
44304
44304-36220 Housing Sub-Assy, Vane Pump, Rear[01.1996 - 06.1999] BXD20 |
44304-36220 |
US $503.78 |
||
|
44310
|
44310
44310-65010 Pump Assy, Vane[01.1996 - 06.1999] BXD20 |
44310-65010 |
US $1,904.45 |
||
|
44310C
|
44310C
90301-60002 Ring, O(For Vane Pump)[01.1996 -] BXD20 |
90301-60002 |
from US $6.69 |
||
|
44311A
|
44311A
90029-18001 Key, Woodruff(For Hydraulic Motor Vane Pump Drive Shaft)[01.1996 -] BXD20 |
90029-18001 |
from US $1.92 |
||
|
44312
|
44312
44312-36120 Shaft, Vane Pump[01.1996 -] BXD20 |
44312-36120 |
US $53.14 |
||
|
44312A
|
44312A
90029-36003 Bearing(For Vane Pump Shaft)[01.1996 -] BXD20 |
90029-36003 |
from US $25.03 |
||
|
44312B
|
44312B
90029-52402 Ring, Shaft Spring(For Hyd Motor Vane Pump Drive Shaft)[01.1996 -] BXD20 |
90029-52402 |
US $3.40 |
||
|
44316
|
44316
44316-36020 Gear, Vane Pump[01.1996 -] BXD20 |
44316-36020 |
US $63.04 |
||
|
44326A
|
44326A
44347-24010 Pin, Straight(For Vane Pump Cam Ring)[01.1996 -] BXD20 長さ＝４５．８ |
44347-24010 |
US $3.64 |
||
|
44328B
|
44328B
44328-89101 End, Vane Pump Housing[01.1996 -] BXD20 |
44328-89101 |
US $18.35 |
||
| replacement | |||||
|
44328B
|
44328B
S4432-61180 End, Vane Pump Housing[01.1996 -] BXD20 |
S4432-61180 |
US $15.72 |
||
|
44328C
|
44328C
90029-20042 Ring, O(For Pump Housing End)[01.1996 -] BXD20 |
90029-20042 |
US $2.62 |
||
|
44330
|
44330
44330-36230 Valve Assy, Flow Control[01.1996 -] BXD20 二本溝 |
44330-36230 |
US $115.02 |
||
|
44330
|
44330
44330-36240 Valve Assy, Flow Control[01.1996 -] BXD20 一本溝 |
44330-36240 |
US $115.02 |
||
|
44330
|
44330
44330-36250 Valve Assy, Flow Control[01.1996 -] BXD20 溝無し |
44330-36250 |
US $115.02 |
||
|
44330A
|
44330A
90029-60002 Spring, Compression(For Flow Control Valve)[01.1996 -] BXD20 |
90029-60002 |
US $4.89 |
||
|
44341
|
44341
44341-24020 Plate, Vane Pump Side, Front[01.1996 -] BXD20 |
44341-24020 |
US $28.39 |
||
|
44342
|
44342
44342-36050 Plate, Vane Pump Side, Rear[01.1996 -] BXD20 |
44342-36050 |
US $122.30 |
||
|
44342A
|
44342A
90301-55007
Ring, O(For Vane Pump Side Plate Rear)
[01.1996 -] BXD20 |
90301-55007 |
— | ||
|
44342D
|
44342D
90029-60001 Spring, Compression(For Pressure Plate)[01.1996 -] BXD20 |
90029-60001 |
US $3.06 |
||
|
9030119005
|
9030119005
90301-19005 Ring, O, No.1(For Oil Filter) |
90301-19005 |
from US $2.72 |
||
|
9046110809
|
9046110809
90461-10809 New Genuine Part |
90461-10809 |
US $2.62 |
||
|
9151160820
|
9151160820
91511-60820
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
91511-60820 |
— | ||
| replacement | |||||
|
9151160820
|
9151160820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.89 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.68 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.05 |
||
|
9161260612
|
9161260612
91612-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-60612 |
US $2.62 |
||
| replacement | |||||
|
9161260612
|
9161260612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.10 |
||
|
9615001700
|
9615001700
96150-01700 Ring |
96150-01700 |
US $1.79 |
||
