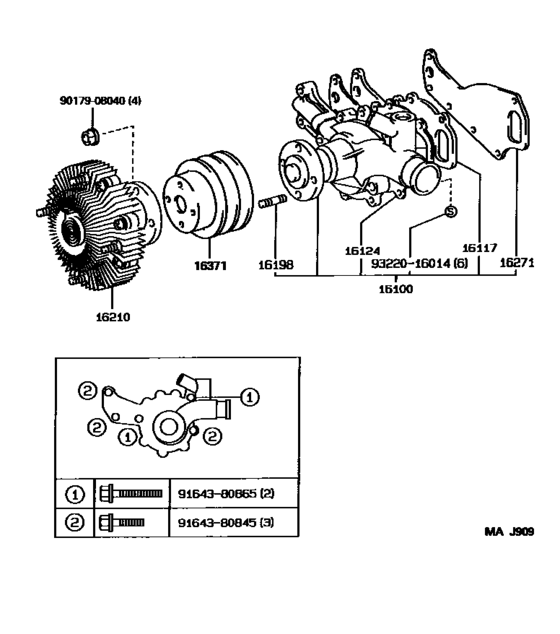

Water Pump ([01.1996 - 06.1999] (9601-9906)) Diagram Toyota MEGA CRUISER
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFT
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 06.1999
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-59186 Pump Assy, Engine Water[01.1996 - 06.1999] 15BFT..BXD20 |
16100-59186 |
US $216.94 |
||
| replacement | |||||
|
16100
|
16100
16100-59187 Pump Assy, Engine Water[01.1996 - 06.1999] 15BFT..BXD20 |
16100-59187 |
from US $157.99 |
||
|
16117
|
16117
16117-58010
Plate, Water Pump
[01.1996 - 06.1999] 15BFT..BXD20 |
16117-58010 |
— | ||
|
16124
|
16124
16124-58010 Gasket, Water Pump Cover[01.1996 - 06.1999] 15BFT..BXD20 |
16124-58010 |
US $8.56 |
||
|
16198
|
16198
16198-41170 Bolt, Stud(For Water Pump Pulley Seat)[01.1996 -] 15B#..BXD20 |
16198-41170 |
US $3.32 |
||
|
16210
|
16210
16210-58050 Coupling Assy, Fluid[01.1996 -] 15B#..BXD20 |
16210-58050 |
US $505.23 |
||
|
16271
|
16271
16271-56031 Gasket, Water Pump[01.1996 - 05.1999] 15BFT..BXD20 |
16271-56031 |
US $12.52 |
||
| replacement | |||||
|
16271
|
16271
16271-58010 Gasket, Water Pump[01.1996 - 05.1999] 15BFT..BXD20 |
16271-58010 |
from US $11.19 |
||
|
16271
|
16271
16271-58010 Gasket, Water Pump[05.1999 -] 15B#..BXD20 |
16271-58010 |
from US $11.19 |
||
|
16371
|
16371
16371-58080 Pulley, Fan[01.1996 - 05.1999] 15BFT..BXD20 |
16371-58080 |
US $75.71 |
||
| replacement | |||||
|
16371
|
16371
16371-58090 Pulley, Fan[01.1996 - 05.1999] 15BFT..BXD20 |
16371-58090 |
US $56.61 |
||
|
16371
|
16371
16371-58090 Pulley, Fan[05.1999 -] 15B#..BXD20 |
16371-58090 |
US $56.61 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9164380845
|
9164380845
91643-80845 New Genuine Part |
91643-80845 |
US $2.51 |
||
|
9164380865
|
9164380865
91643-80865 New Genuine Part |
91643-80865 |
US $2.51 |
||
|
9322016014
|
9322016014
93220-16014 SCREW |
93220-16014 |
from US $0.65 |
||
