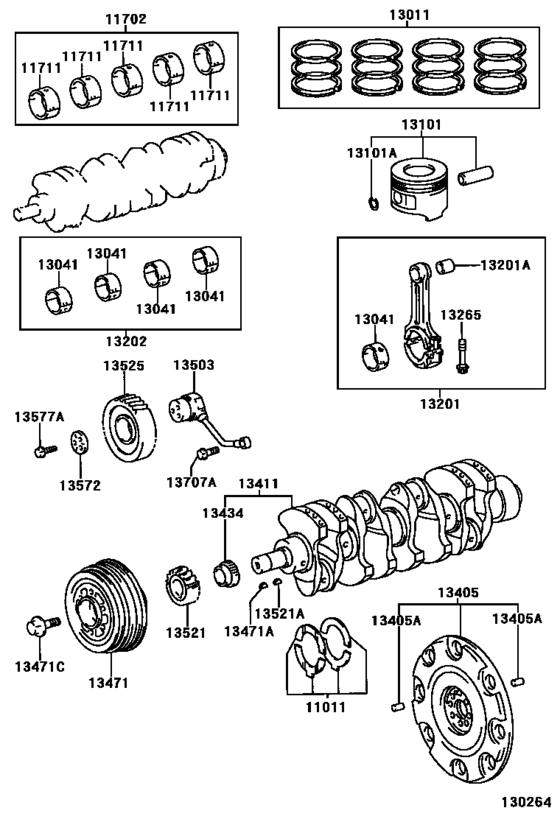

Crankshaft & Piston ([06.1999 - ] (9906- )) Diagram Toyota MEGA CRUISER
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFTE
- TRANSMISSION
- ATM
- From
- 06.1999
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TDEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-58010 Washer Set, Crankshaft Thrust[06.1999 -] 15BFTE..BXD20 ＳＴＤ |
11011-58010 |
US $32.32 |
||
|
11011
|
11011
11012-58010 Washer Set, Crankshaft Thrust[06.1999 -] 15BFTE..BXD20 Ｏ／Ｓ ０．１２５ |
11012-58010 |
US $40.48 |
||
|
11011
|
11011
11013-58010 Washer Set, Crankshaft Thrust[06.1999 -] 15BFTE..BXD20 Ｏ／Ｓ ０．２５０ |
11013-58010 |
US $40.48 |
||
|
11702
|
11702
11704-58020 Bearing Set, Crankshaft[06.1999 -] 15BFTE..BXD20 Ｕ／Ｓ ０．２５ |
11704-58020 |
US $422.82 |
||
|
11702
|
11702
11705-58020 Bearing Set, Crankshaft[06.1999 -] 15BFTE..BXD20 Ｕ／Ｓ ０．５０ |
11705-58020 |
US $433.89 |
||
|
11702
|
11702
11707-58020 Bearing Set, Crankshaft[06.1999 -] 15BFTE..BXD20 Ｕ／Ｓ １．００ |
11707-58020 |
US $433.89 |
||
|
11711
|
11711
11701-58020-01
Bearing, Crankshaft
[06.1999 -] 15BFTE..BXD20 MARK 1 |
11701-58020-01 |
— | ||
|
11711
|
11711
11701-58020-02 Bearing, Crankshaft[06.1999 -] 15BFTE..BXD20 MARK 2 |
11701-58020-02 |
US $66.74 |
||
|
13011
|
13011
13011-58110 Ring Set, Piston[06.1999 -] 15BFTE..BXD20 ＳＴＤ |
13011-58110 |
US $326.14 |
||
|
13011
|
13011
13013-58110
Ring Set, Piston
[06.1999 -] 15BFTE..BXD20 Ｏ／Ｓ ０．５０ |
13013-58110 |
— | ||
|
13011
|
13011
13014-58110 Ring Set, Piston[06.1999 -] 15BFTE..BXD20 Ｏ／Ｓ ０．７５ |
13014-58110 |
US $390.21 |
||
|
13011
|
13011
13015-58110 Ring Set, Piston[06.1999 -] 15BFTE..BXD20 Ｏ／Ｓ １．００ |
13015-58110 |
US $390.21 |
||
|
13041
|
13041
13041-58040-01 Bearing, Connecting Rod[06.1999 -] 15BFTE..BXD20 MARK 1 |
13041-58040-01 |
US $43.68 |
||
|
13041
|
13041
13041-58040-02 Bearing, Connecting Rod[06.1999 -] 15BFTE..BXD20 MARK 2 |
13041-58040-02 |
US $43.68 |
||
|
13101
|
13101
13101-58120-01 Piston Sub-Assy, W/pin[06.1999 -] 15BFTE..BXD20 ＳＴＤ,MARK 1 |
13101-58120-01 |
from US $283.73 |
||
|
13101
|
13101
13101-58120-02 Piston Sub-Assy, W/pin[06.1999 -] 15BFTE..BXD20 ＳＴＤ,MARK 2 |
13101-58120-02 |
US $337.21 |
||
|
13101
|
13101
13101-58120-03 Piston Sub-Assy, W/pin[06.1999 -] 15BFTE..BXD20 ＳＴＤ,MARK 3 |
13101-58120-03 |
US $346.53 |
||
|
13101
|
13101
13103-58120
Piston Sub-Assy, W/pin
[06.1999 -] 15BFTE..BXD20 Ｏ／Ｓ ０．５０ |
13103-58120 |
— | ||
|
13101
|
13101
13104-58120 Piston Sub-Assy, W/pin[06.1999 -] 15BFTE..BXD20 Ｏ／Ｓ ０．７５ |
13104-58120 |
US $282.46 |
||
|
13101
|
13101
13105-58120 Piston Sub-Assy, W/pin[06.1999 -] 15BFTE..BXD20 Ｏ／Ｓ １．００ |
13105-58120 |
US $282.46 |
||
|
13101A
|
13101A
90521-40002 Ring, Hole Snap(For Piston Pin)[06.1999 -] 15BFTE..BXD20 |
90521-40002 |
US $1.31 |
||
|
13201
|
13201
13201-59205 Rod Sub-Assy, Connecting[06.1999 -] 15BFTE..BXD20 |
13201-59205 |
US $310.13 |
||
| replacement | |||||
|
13201
|
13201
13201-59275 Rod Sub-Assy, Connecting[06.1999 -] 15BFTE..BXD20 |
13201-59275 |
US $321.78 |
||
|
13201A
|
13201A
90999-73141 Bush(For Connecting Rod Small End)[06.1999 -] 15BFTE..BXD20 |
90999-73141 |
US $174.72 |
||
|
13202
|
13202
13204-58040 Bearing Set, Connecting Rod[06.1999 -] 15BFTE..BXD20 Ｕ／Ｓ ０．２５ |
13204-58040 |
US $213.16 |
||
|
13202
|
13202
13205-58040
Bearing Set, Connecting Rod
[06.1999 -] 15BFTE..BXD20 Ｕ／Ｓ ０．５０ |
13205-58040 |
— | ||
|
13202
|
13202
13207-58040
Bearing Set, Connecting Rod
[06.1999 -] 15BFTE..BXD20 Ｕ／Ｓ １．００ |
13207-58040 |
— | ||
|
13265
|
13265
13265-58030 Bolt, Connecting Rod[06.1999 -] 15BFTE..BXD20 |
13265-58030 |
US $19.95 |
||
|
13405
|
13405
13405-58060 Flywheel Sub-Assy[06.1999 -] 15BFTE..BXD20 |
13405-58060 |
US $286.83 |
||
|
13405A
|
13405A
90250-10192 Pin, Straight(For Timing Gear Cover Set)[06.1999 -] 15BFTE..BXD20 長さ＝２２，外径＝１０ |
90250-10192 |
from US $0.97 |
||
|
13411
|
13411
13401-58080 Crankshaft[06.1999 -] 15BFTE..BXD20 |
13401-58080 |
US $2,649.92 |
||
|
13434
|
13434
13519-56011
Spline, Oil Pump Drive
[03.1999 -] 15B#..BXD20 |
13519-56011 |
— | ||
|
13471
|
13471
13470-58051 Pulley, Crankshaft[03.1999 -] 15B#..BXD20 |
13470-58051 |
US $436.80 |
||
|
13471A
|
13471A
95161-30416 Pin, Straight(For Crankshaft)[01.1996 -] 15B#..BXD20 |
95161-30416 |
from US $1.39 |
||
|
13471C
|
13471C
90901-19061 Bolt(For Crankshaft Pulley Set)[06.1999 -] 15BFTE..BXD20 |
90901-19061 |
from US $9.61 |
||
|
13503
|
13503
13504-58020 Shaft Sub-Assy, Idle Gear[06.1999 -] 15BFTE..BXD20 |
13504-58020 |
from US $153.82 |
||
|
13521
|
13521
13521-58010 Gear Or Sprocket, Crankshaft Timing[06.1999 -] 15BFTE..BXD20 |
13521-58010 |
US $117.94 |
||
|
13521A
|
13521A
95161-30519 Key(For Crankshaft Timing Gear)[01.1996 -] 15B#..BXD20 |
95161-30519 |
US $3.32 |
||
|
13525
|
13525
13520-58010 Gear, Idle, No.1[06.1999 -] 15BFTE..BXD20 |
13520-58010 |
from US $120.04 |
||
|
13572
|
13572
13572-58010 Plate, Idle Gear Thrust[06.1999 -] 15BFTE..BXD20 |
13572-58010 |
US $37.56 |
||
|
13577A
|
13577A
90105-10194 Bolt, Hexagon(For Idle Gear Bolt Lock)[06.1999 -] 15BFTE..BXD20 |
90105-10194 |
US $4.72 |
||
|
13707A
|
13707A
90401-10026 Union(For Oil Pipe, No.1)[01.1996 -] 15B#..BXD20 |
90401-10026 |
US $1.40 |
||
