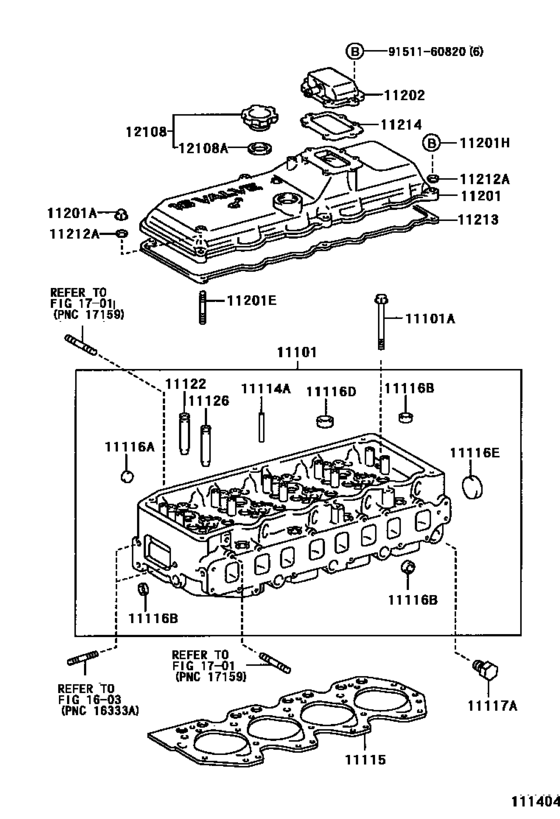

Cylinder Head ([06.1999 - ] (9906- )) Diagram Toyota MEGA CRUISER
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFTE
- TRANSMISSION
- ATM
- From
- 06.1999
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TDEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-58100 Head Sub-Assy, Cylinder[06.1999 -] 15BFTE..BXD20 |
11101-58100 |
US $2,213.12 |
||
|
11101A
|
11101A
90910-02084 Bolt(For Cylinder Head Set)[01.1996 -] 15B#..BXD20 |
90910-02084 |
US $9.50 |
||
|
11114A
|
11114A
90250-09007 Pin, Straight[01.1996 -] 15B#..BXD20 長さ＝５３．５，外径＝９ |
90250-09007 |
US $3.84 |
||
|
11115
|
11115
11115-58131 Gasket, Cylinder Head[05.1999 -] 15B#..BXD20 厚さ＝１．２０ |
11115-58131 |
from US $96.41 |
||
|
11115
|
11115
11115-58141 Gasket, Cylinder Head[05.1999 -] 15B#..BXD20 厚さ＝１．３０ |
11115-58141 |
from US $95.86 |
||
|
11115
|
11115
11115-58151 Gasket, Cylinder Head[05.1999 -] 15B#..BXD20 厚さ＝１．４０ |
11115-58151 |
from US $99.37 |
||
|
11116A
|
11116A
90331-14006 Plug, Tight, No.1[01.1996 -] 15B#..BXD20 |
90331-14006 |
US $0.35 |
||
|
11116B
|
11116B
96411-62500 Plug, Tight, No.1[01.1996 -] 15B#..BXD20 |
96411-62500 |
from US $3.58 |
||
|
11116D
|
11116D
96411-63000 Plug, Tight[06.1999 -] 15BFTE..BXD20 |
96411-63000 |
from US $3.76 |
||
|
11116E
|
11116E
96411-64000 Plug, Tight, No.2[06.1999 -] 15BFTE..BXD20 |
96411-64000 |
from US $4.12 |
||
|
11117A
|
11117A
90345-54005 Plug, W/head Taper Screw, No.1[01.1996 -] 15B#..BXD20 |
90345-54005 |
from US $3.80 |
||
|
11122
|
11122
11122-58020 Bush, Intake Valve Guide[04.1999 -] 15B#..BXD20 ＳＴＤ |
11122-58020 |
US $7.43 |
||
|
11126
|
11126
11122-58020 Bush, Intake Valve Guide[04.1999 -] 15B#..BXD20 ＳＴＤ |
11122-58020 |
US $7.43 |
||
|
11201
|
11201
11201-58070 Cover Sub-Assy, Cylinder Head[06.1999 -] 15BFTE..BXD20 |
11201-58070 |
US $269.36 |
||
|
11201A
|
11201A
90179-08040 Nut, Cap(For Cylinder Head Cover)[05.1999 -] 15B#..BXD20 |
90179-08040 |
from US $1.01 |
||
|
11201E
|
11201E
92112-60835 Bolt, Stud(For Cylinder Head Cover Set)[01.1996 -] 15B#..BXD20 |
92112-60835 |
US $3.40 |
||
|
11201H
|
11201H
91511-60835
Bolt(For Cylinder Head Set Sub)
[01.1996 -] 15B#..BXD20 |
91511-60835 |
— | ||
| replacement | |||||
|
11201H
|
11201H
90105-08200 Bolt(For Cylinder Head Set Sub)[01.1996 -] 15B#..BXD20 |
90105-08200 |
from US $1.37 |
||
|
11202
|
11202
11202-58010 Cover Sub-Assy, Cylinder Head, Lh[06.1999 -] 15BFTE..BXD20 |
11202-58010 |
US $61.73 |
||
|
11212A
|
11212A
11228-56010 Cushion, Cylinder Head Cover[01.1996 -] 15B#..BXD20 |
11228-56010 |
from US $1.46 |
||
|
11213
|
11213
11213-58021 Gasket, Cylinder Head Cover[03.1999 -] 15B#..BXD20 |
11213-58021 |
US $20.50 |
||
|
11214
|
11214
11214-58010 Gasket, Cylinder Head Cover, No.2[06.1999 -] 15BFTE..BXD20 |
11214-58010 |
US $8.15 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[01.1996 -] 15B#..BXD20 |
12180-55010 |
from US $11.29 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[01.1996 -] 15B#..BXD20 |
90430-37140 |
from US $1.14 |
||
|
9151160820
|
9151160820
91511-60820
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
91511-60820 |
— | ||
| replacement | |||||
|
9151160820
|
9151160820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.89 |
||
