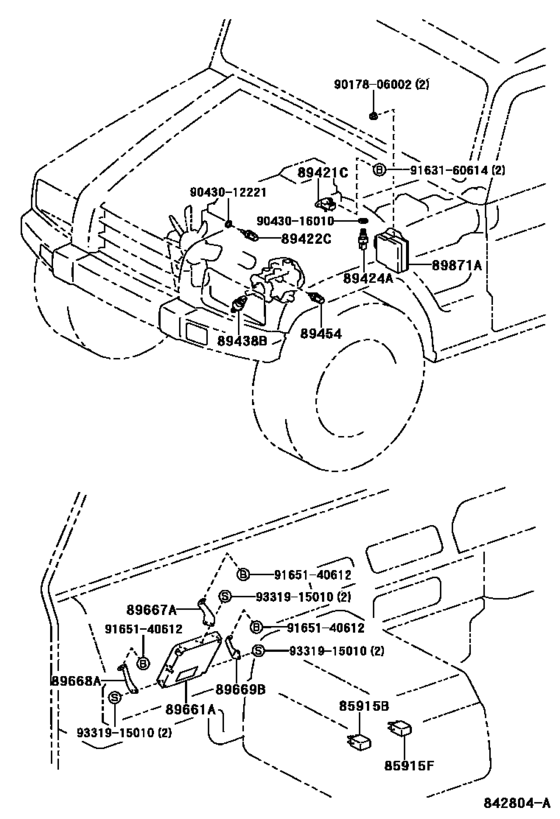

Electronic Controled Diesel (Ecd) ([06.1999 - ] (9906- )) Diagram Toyota MEGA CRUISER
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- BXD20
- ENGINE
- 15BFTE
- TRANSMISSION
- ATM
- From
- 06.1999
- To
- 10.2001
- Vehicle Model
- Mega Cruiser
- Fuel Induction
- TDEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85915B
|
85915B
90987-02017 Relay, Ignition, No.1[06.1999 -] BXD20 |
90987-02017 |
from US $50.40 |
||
|
85915F
|
85915F
90987-02017 Relay, Ignition, No.1[06.1999 -] BXD20 |
90987-02017 |
from US $50.40 |
||
|
89421C
|
89421C
89421-21010 Sensor Assy, Vacuum (For E.f.i.)[06.1999 -] BXD20 |
89421-21010 |
US $154.16 |
||
|
89422C
|
89422C
89422-35010 Sensor, Water Temperature (For E.f.i.)[06.1999 -] BXD20 |
89422-35010 |
from US $43.53 |
||
|
89424A
|
89424A
89424-28020 Sensor, Inlet Air Temperature (For Diesel Turbo)[06.1999 -] BXD20 |
89424-28020 |
US $94.64 |
||
|
89438B
|
89438B
89438-30020 Switch, Power Steering Oil Pressure[06.1999 -] BXD20 |
89438-30020 |
US $30.40 |
||
|
89454
|
89454
89454-60010 Sensor, Fuel Temperature[06.1999 -] BXD20 |
89454-60010 |
from US $36.69 |
||
|
89661A
|
89661A
89661-65010 Computer, Engine Control[06.1999 -] BXD20 |
89661-65010 |
US $1,528.80 |
||
| replacement | |||||
|
89661A
|
89661A
89661-65011
Computer, Engine Control
[06.1999 -] BXD20 |
89661-65011 |
— | ||
|
89667A
|
89667A
89667-65010 Bracket, Engine Control Computer, No.1[06.1999 -] BXD20 |
89667-65010 |
US $6.99 |
||
|
89668A
|
89668A
89668-65010 Bracket, Engine Control Computer, No.2[06.1999 -] BXD20 |
89668-65010 |
US $6.84 |
||
|
89669B
|
89669B
89669-65010 Bracket, Engine Control Computer, No.3[06.1999 -] BXD20 |
89669-65010 |
US $8.59 |
||
|
89871A
|
89871A
89871-36010 Driver, Injector[06.1999 -] BXD20 |
89871-36010 |
US $748.80 |
||
|
9017806002
|
9017806002
90178-06002 NUT FLANGE |
90178-06002 |
US $1.97 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.05 |
||
|
9043016010
|
9043016010
90430-16010 Gasket, Neutral Start Switch |
90430-16010 |
US $1.12 |
||
|
9163160614
|
9163160614
91631-60614 BOLT |
91631-60614 |
US $1.60 |
||
| replacement | |||||
|
9163160614
|
9163160614
91661-60616 BOLT |
91661-60616 |
from US $0.68 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.95 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
